Dimensional data – Sanyo CL4232 User Manual
Page 20
– 20 –
SM830078

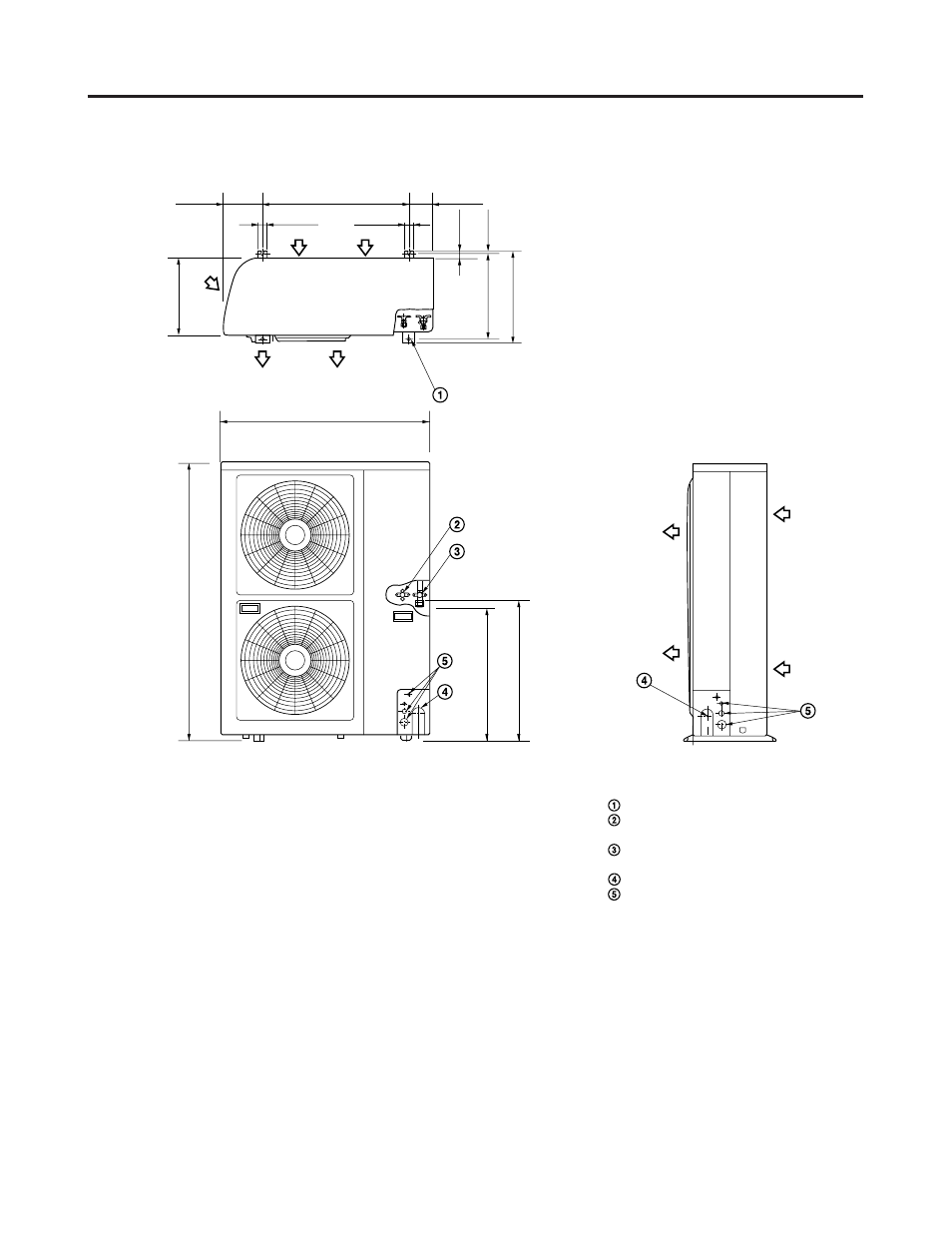

3. DIMENSIONAL DATA
(2)
Outdoor Unit: C4232, CL4232
48-5/8
22-27/32
23-29/32
37
Dimension : inch
Hole for anchor bolt (4-ø13)
Refrigerant tube joint (narrow tube)
Flare connection 3/8 in (9.52 mm)
Refrigerant tube joint (wide tube)
Flare connection 3/4 in (19.05 mm)
Refrigerant tubing inlet
Power supply inlet
1342_C_S
15-3/4
14-31/32
13/32
1-3/16
1-31/32
1-31/32
13-3/8
4-21/64
26
6-11/16
