3-37 STAR Command Specifications
Rev. 0.70

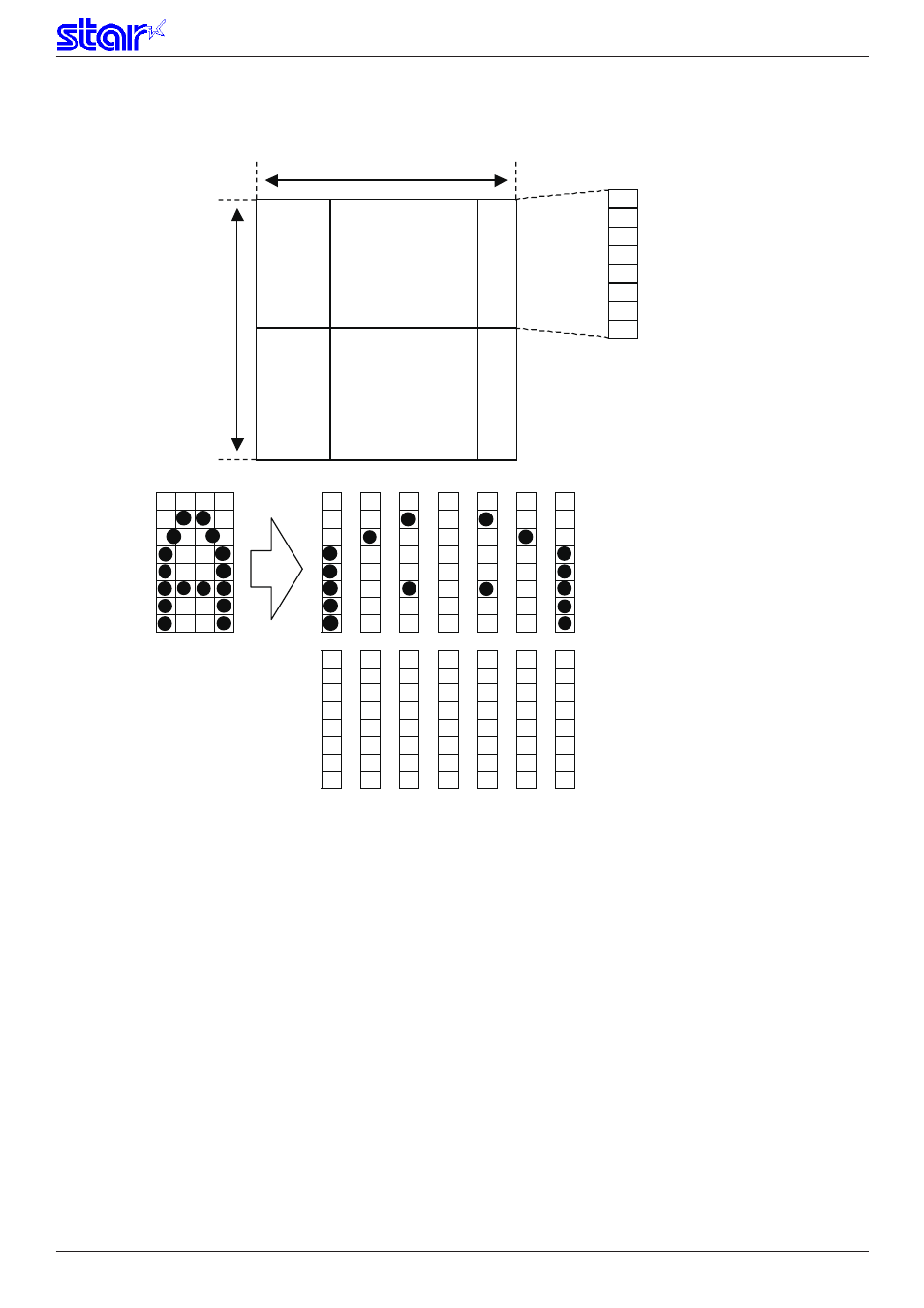

Relationship of character pattern data and print head.
[Ex.] When selecting 7 x 9 fonts, and defining the character to 21H:
ESC & m c1 c2 d1 d2 d3 d4 d5 d6 d7 d8 d9 d10 d11 d12 d13 d14
Code (Hexadecimal) 1B 26 02 21 21 1F 00 20 00 44 00 00 00 44 00 20 00 1F 00
(1 when printing corresponding bits, and 0 for no print)
㩷
㩷
㩷
㩷 㩷
㩷
㩷
䊶䊶䊶䊶䊶䊶䊶䊶䊶䊶䊶㩷
䊶䊶䊶䊶䊶䊶䊶䊶䊶䊶䊶㩷
㩷
㩷
d1
d2
d3
d4
d13
d14
7 Dots
MSB
LSB
9 Dots
