Connectors
T1 Interface
FCC Part 68 - TIA 968
Industry Canada CS-03
UL 60950-1 Applicable requirements for TNV circuit with outside plant lead
connection
Connectors

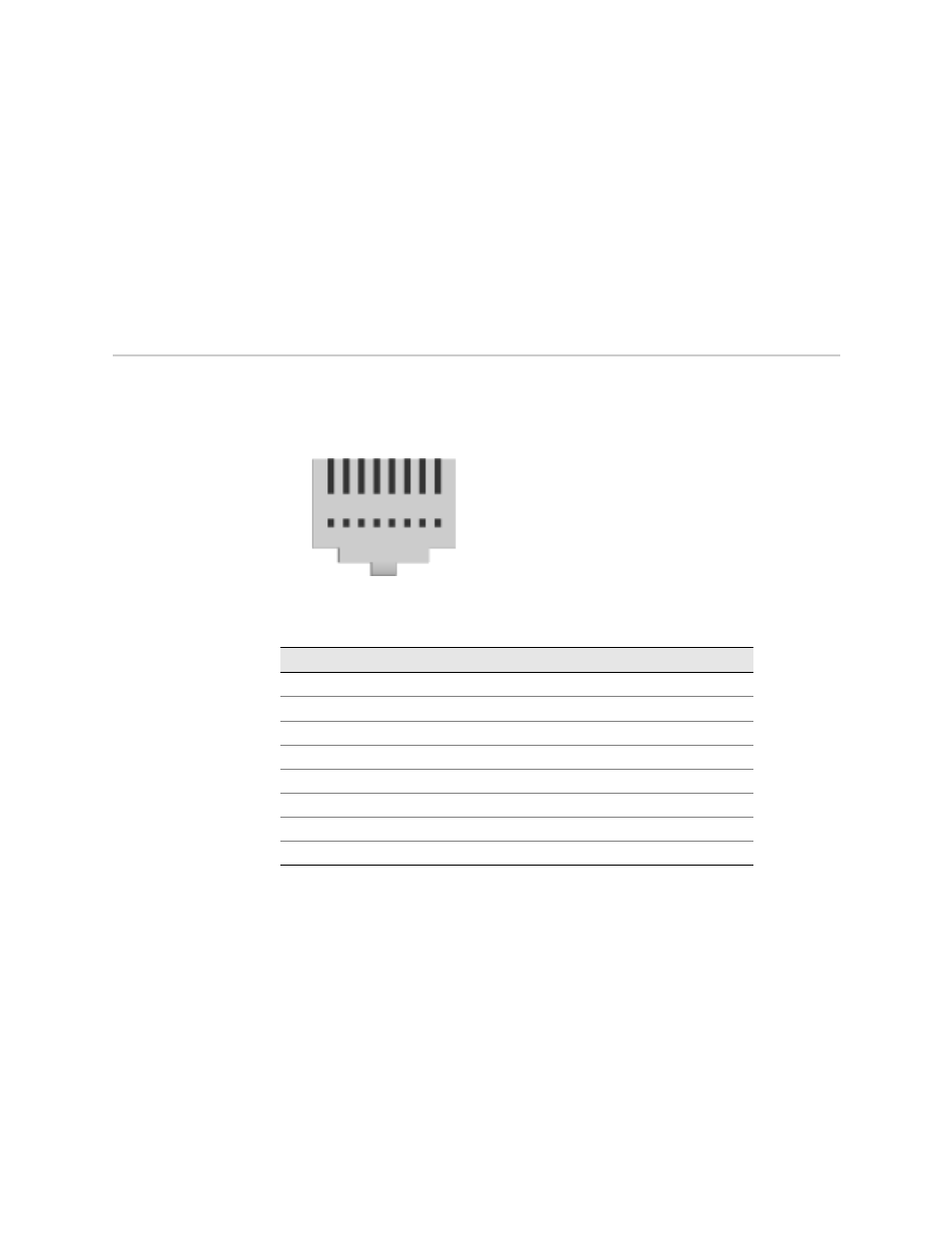

Figure 22 shows the location of the pins on the RJ-45 connector.
Figure 22: RJ-45 Pinouts
Table 11 lists the RJ-45 connector pinouts.
Table 11: RJ-45 Connector Pinouts
Pin
Name
I/O
Description
1
RTS Out
O
Request To Send
2
DTR Out
O
Data Terminal Ready
3
TxD
O
Transmit Data
4
GND
N/A
Chassis Ground
5
GND
N/A
Chassis Ground
6
RxD
I
Receive Data
7
DSR
I
Data Set Ready
8
CTS
I
Clear To Send
1 2 3 4 5 6 7 8
