Introduction
QMS 1725E Print System Getting Started
5-2
Introduction

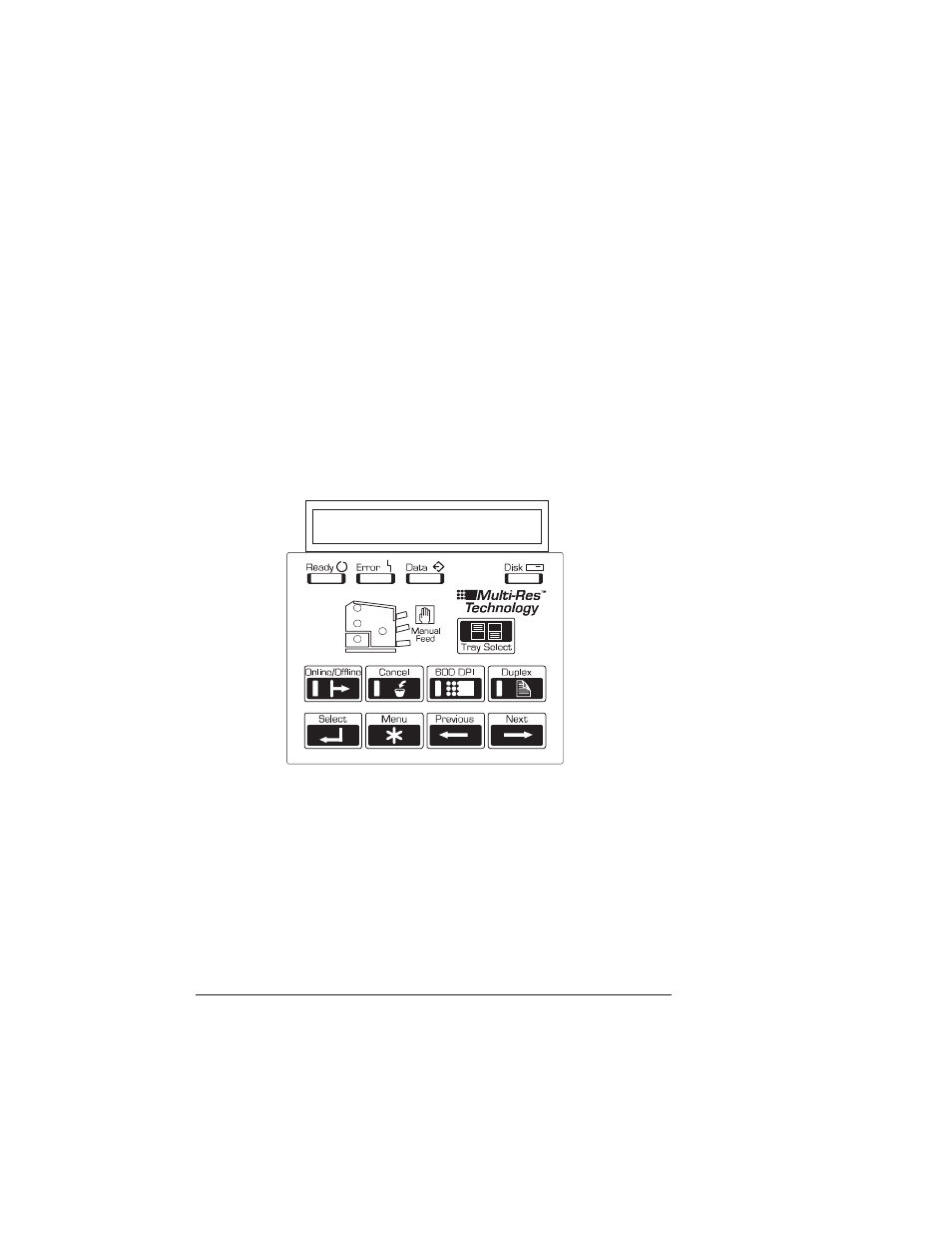

The control panel, located on the front of the printer, allows you to
direct the printer’s operation. In addition, it displays the current status
of the printer, including any condition that needs your attention.
The control panel consists of the following parts:
n
Sixteen indicators provide printer status information and identify
the current media source.
n
A message window displays status and configuration information.
Nine keys allow you to control the printer.
Message Window
