Attaching the Face-up Tray
QMS 1725E Print System Getting Started
2-10
determine the paper size installed.
3
Place the covers on the cassettes.
4

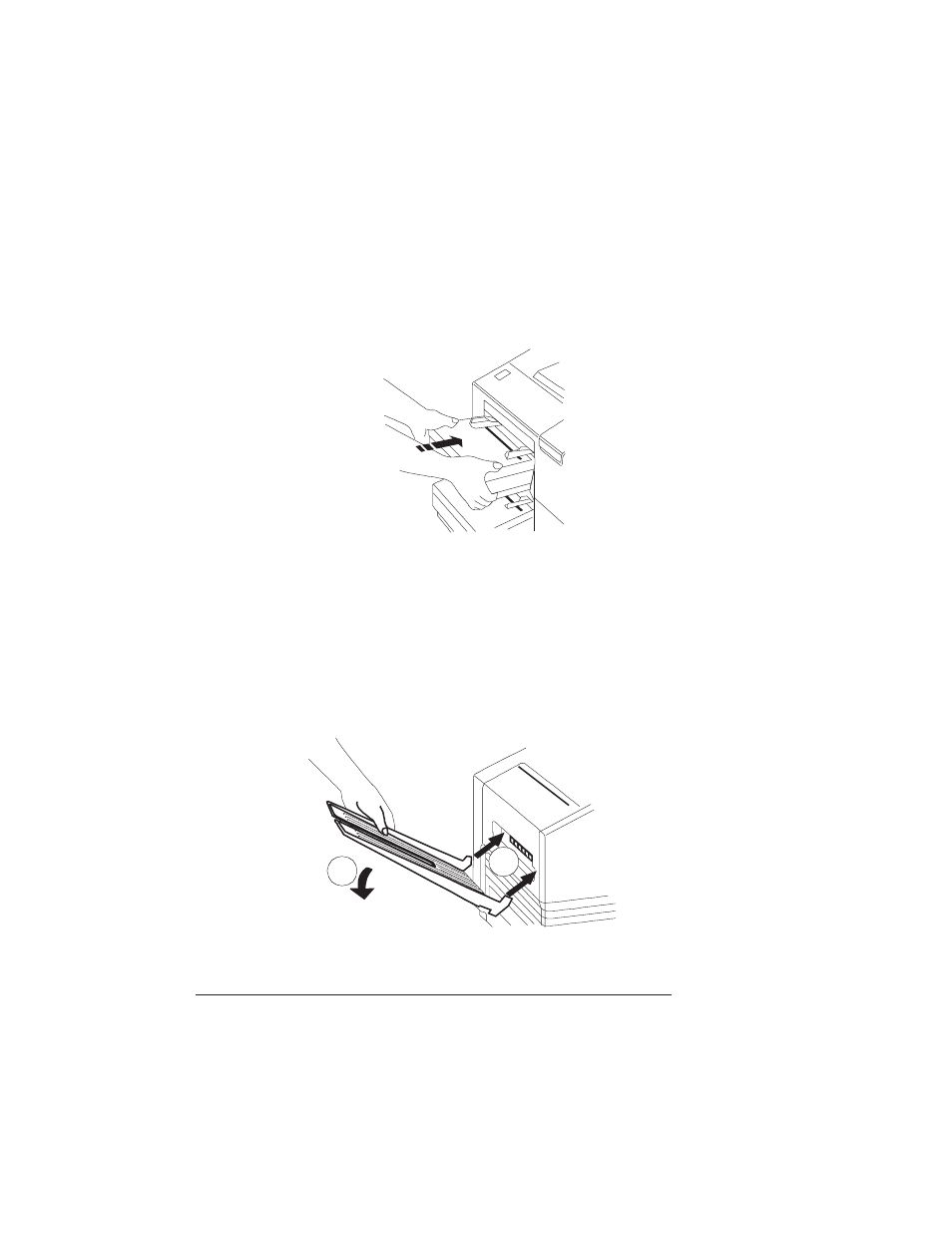

Slide the filled cassettes into the openings in front of the
printer.
Attaching the Face-up Tray
1
In an upward direction, insert the two-end tabs of the face-up
tray into the slot on the back of the printer.
2
Allow the extended part of the tray to lean back until it rests
easily.
2
1
