232 Building a Network Access Control Solution with IBM Tivoli and Cisco Systems
3. Select Network Configuration in the main menu. The screen in Figure 7-15
is shown.

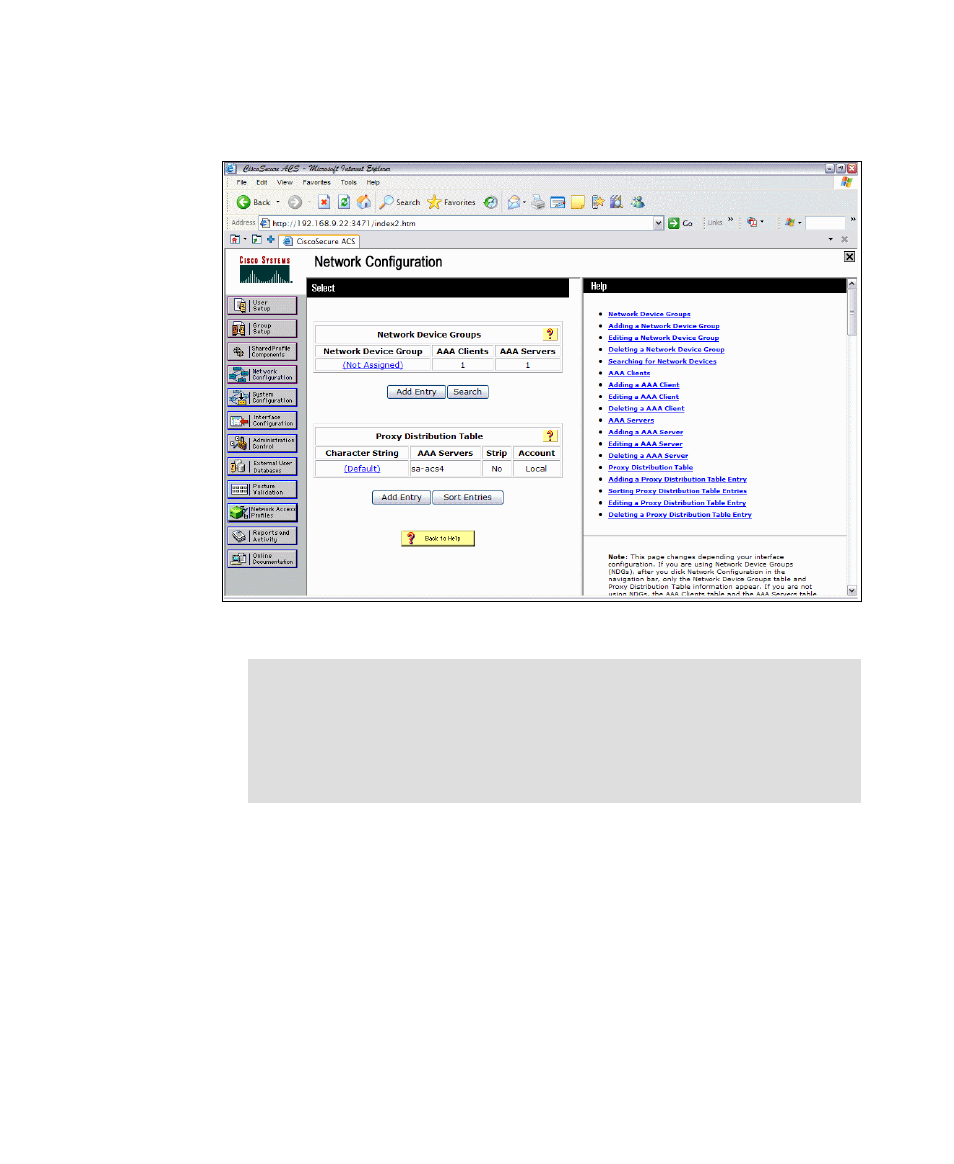

Figure 7-15 Network Configuration
4. (Optional) Select Add Entry under Network Device Groups (Figure 7-15).
5. (Optional) Add the name of the NDG you wish to use (for example, switches)
and the RADIUS key used by the AAA clients that makes up this NDG (for
example, cisco123).
Note: Figure 7-15 changes depending on your interface configuration. If
you are using Network Device Groups (NDGs), after you click Network
Configuration in the main menu, only the Network Device Groups table and
Proxy Distribution Table information appear. If you are not using NDGs, the
AAA Clients table and the AAA Servers table appear in place of the
Network Device Groups table.
