Viewing Logical Adapter Connection Status
74 Interphase Corporation
Viewing Logical Adapter Connection
Status
To view the logical adapter connection status:
1. If needed, start the NDIS driver Setup utility, as
described in Starting the NDIS Driver Setup Utility on
page 64 .
2. In the Adapter section of the NDIS Driver Setup dialog
box, click the Status button.
The Status dialog box appears for the displayed logical
adapter.

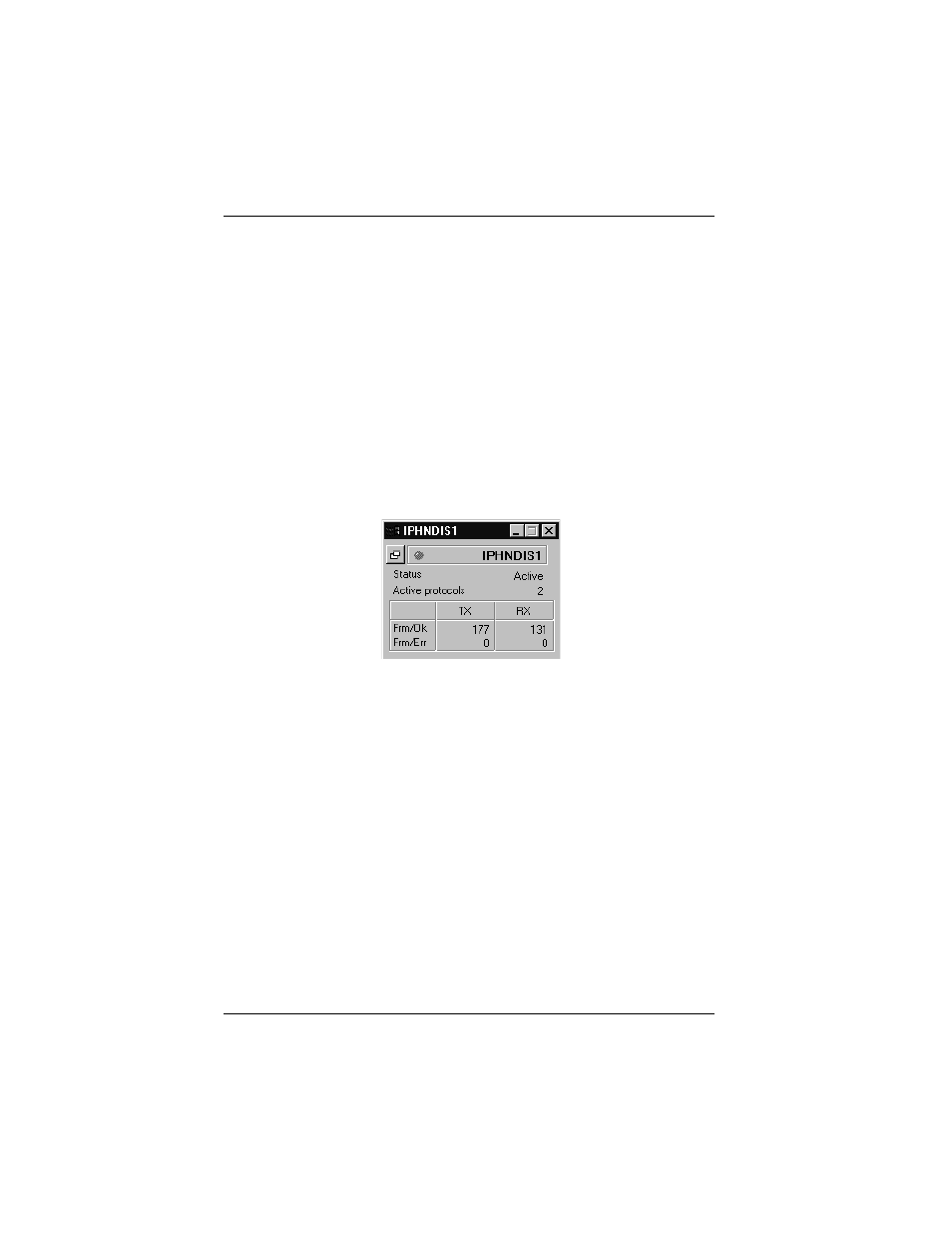

Figure 5-5. NDIS Logical Adapter Status
For all channels associated with the logical adapter, this dialog
box displays the total numbers of frames transmitted and
received successfully and with errors. The transmit and receive
counters are dynamically refreshed every second. Use this
information to detect an abnormal rate of communication
errors.
