Installing the Adapter
16
Interphase Corporation
5. Carefully remove the adapter from its antistatic bag, and
position the adapter in the PCI expansion slot. Align the
adapter’s connector pins with the slot’s receptacle; then
press gently but firmly on the board to seat it in the slot.
6. Attach the adapter with the screw removed in step

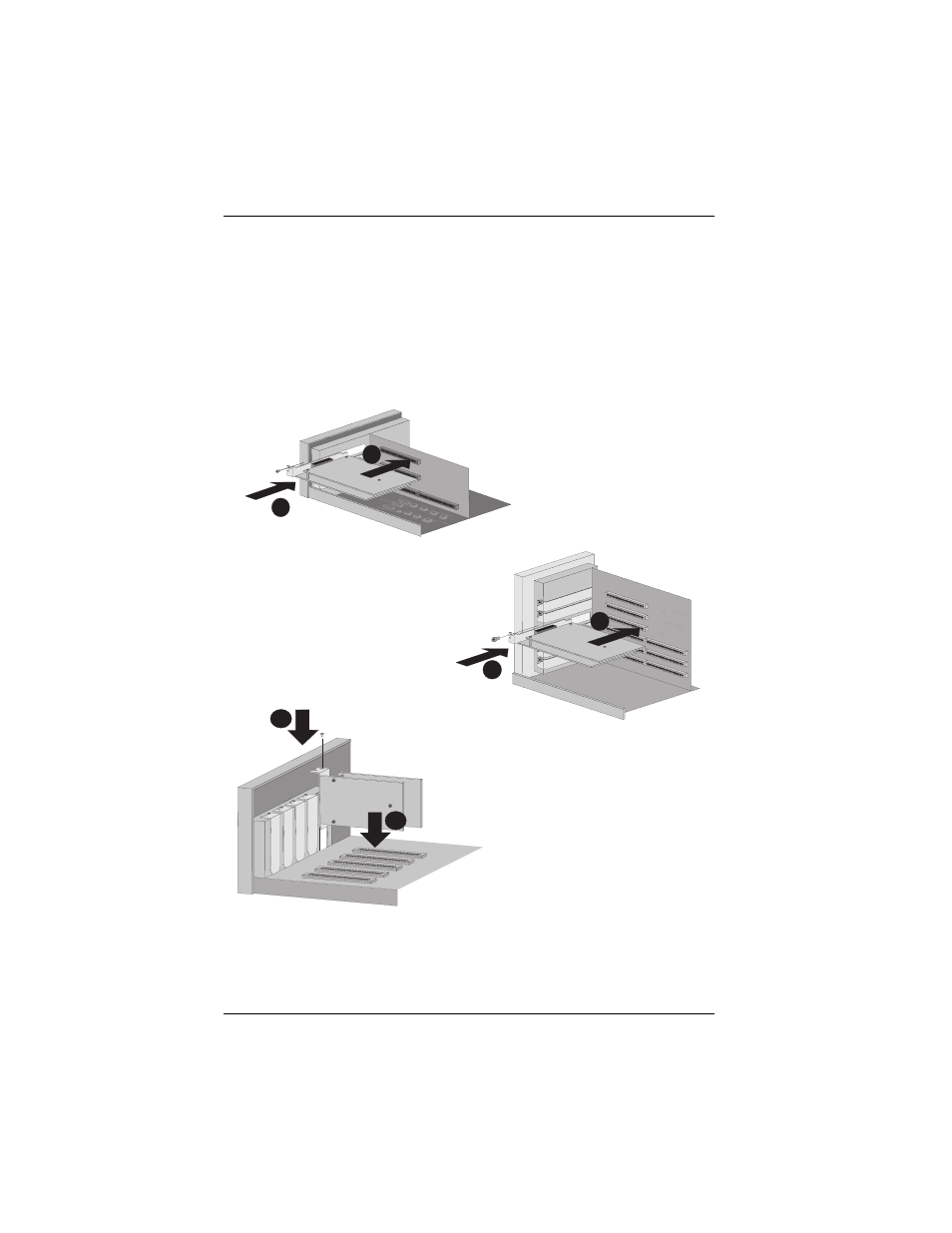

Figure 2-4. Inserting the Adapter
6
5
6
5
6
5
