Appendix B: SynWatch Utility
iSPAN Serial WAN Adapter Users Guide 173

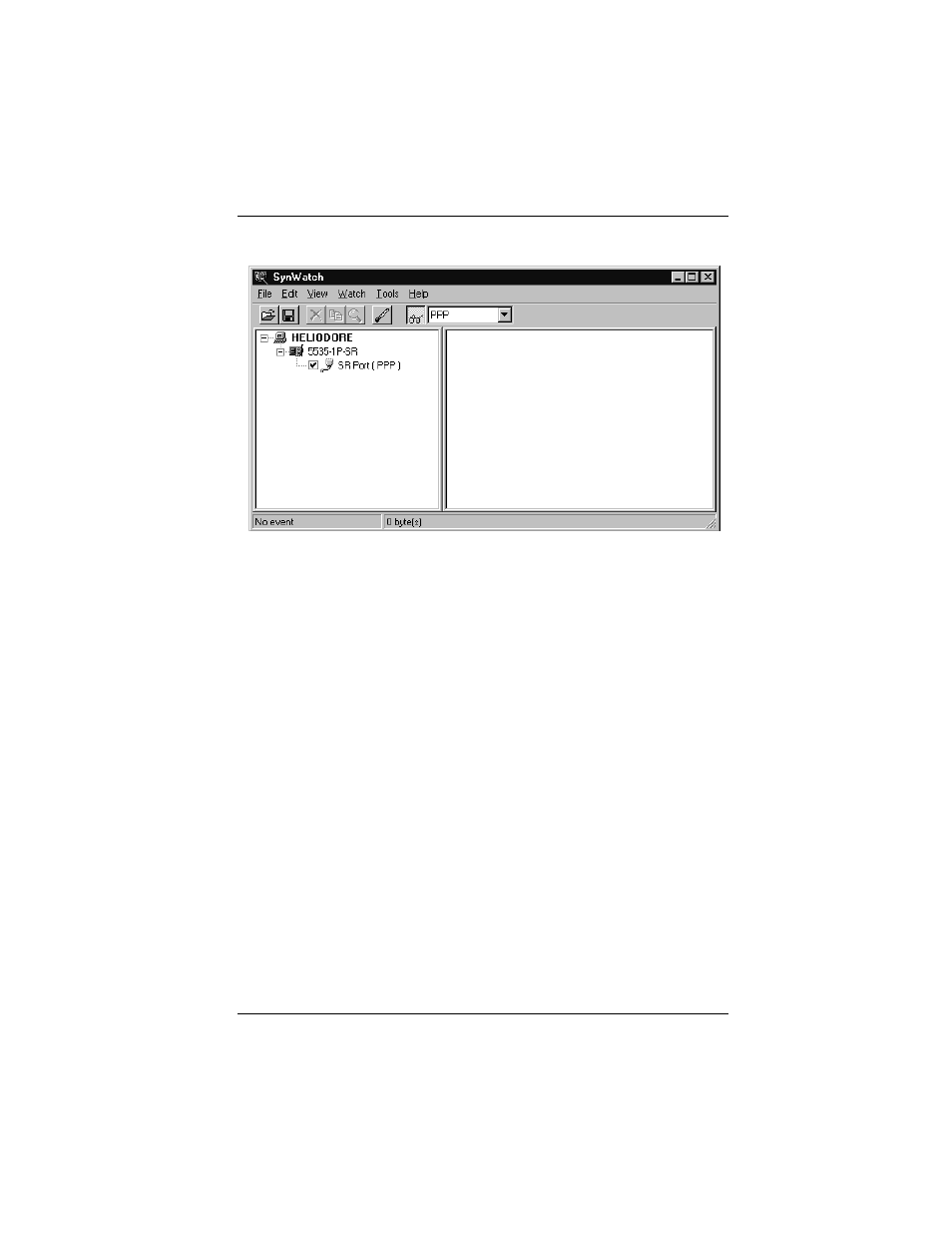

Figure B-1. Main SynWatch Dialog Box
The main SynWatch dialog box has two sections:
• The left side is the configuration panel. It displays the
adapter description. The configuration panel is used to
activate or deactivate frame watching.
• The right side is the monitor panel. It displays
exchanged frames.
The configuration panel displays the adapter description in a
tree view with the following levels:
• First level: Name of the computer
• Second level: Board system name
• Third level: Serial port on the board (SR port)
