CHAPTER 4: Installing Components
52

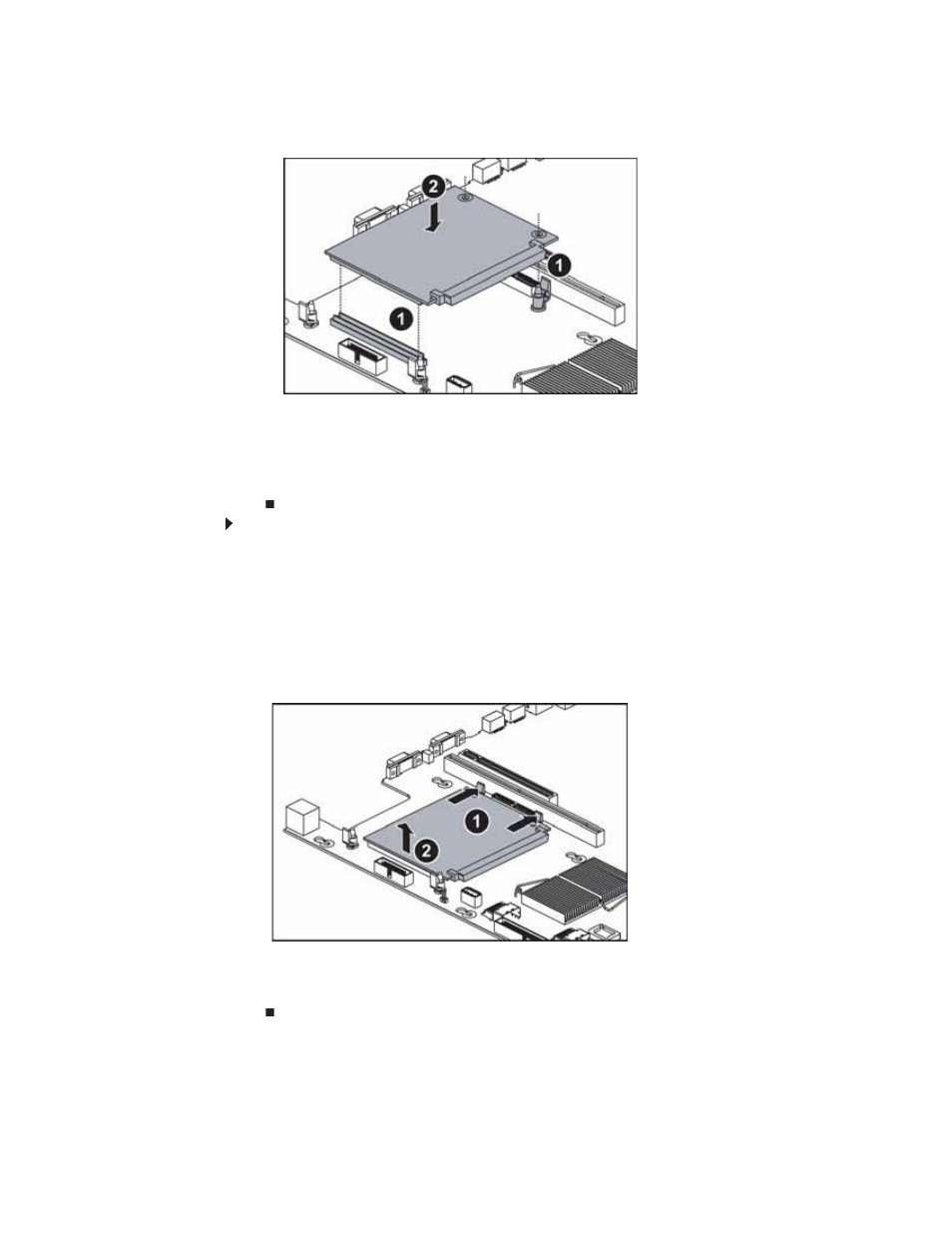

4 Align the holes on one side of the board with the plastic standoffs (1) and align the other
side with the mezzanine board slot.
5 Push down on the board (2) to seat it in the mezzanine board slot and onto the plastic
standoffs until the retaining tabs snap into place.
6 Replace the PCI riser card assembly by following the instructions in “Installing and removing
PCI expansion cards” on page 39.
7 Follow the instructions in “Closing the server case” on page 30 .
To remove an optional mezzanine board:
1 Follow the instructions in “Preventing static electricity discharge” on page 28 . Make sure
that you turn off the server, then unplug the power cord(s) and all other cables connected
to the server.
2 Follow the instructions in “Opening the server case” on page 29 .
3 Remove the PCI riser assembly by following the instructions in “Installing and removing
PCI expansion cards” on page 39 .
4 Push aside the plastic retaining tabs (1) and pull the mezzanine board (2) out of the
mezzanine board slot.
5 Replace the PCI riser card assembly by following the instructions in “Installing and removing
PCI expansion cards” on page 39.
6 Follow the instructions in “Closing the server case” on page 30 .
