Installing the bezel – Gateway E-9425R User Manual
Page 20
CHAPTER 2: Setting Up Your Server
14
8

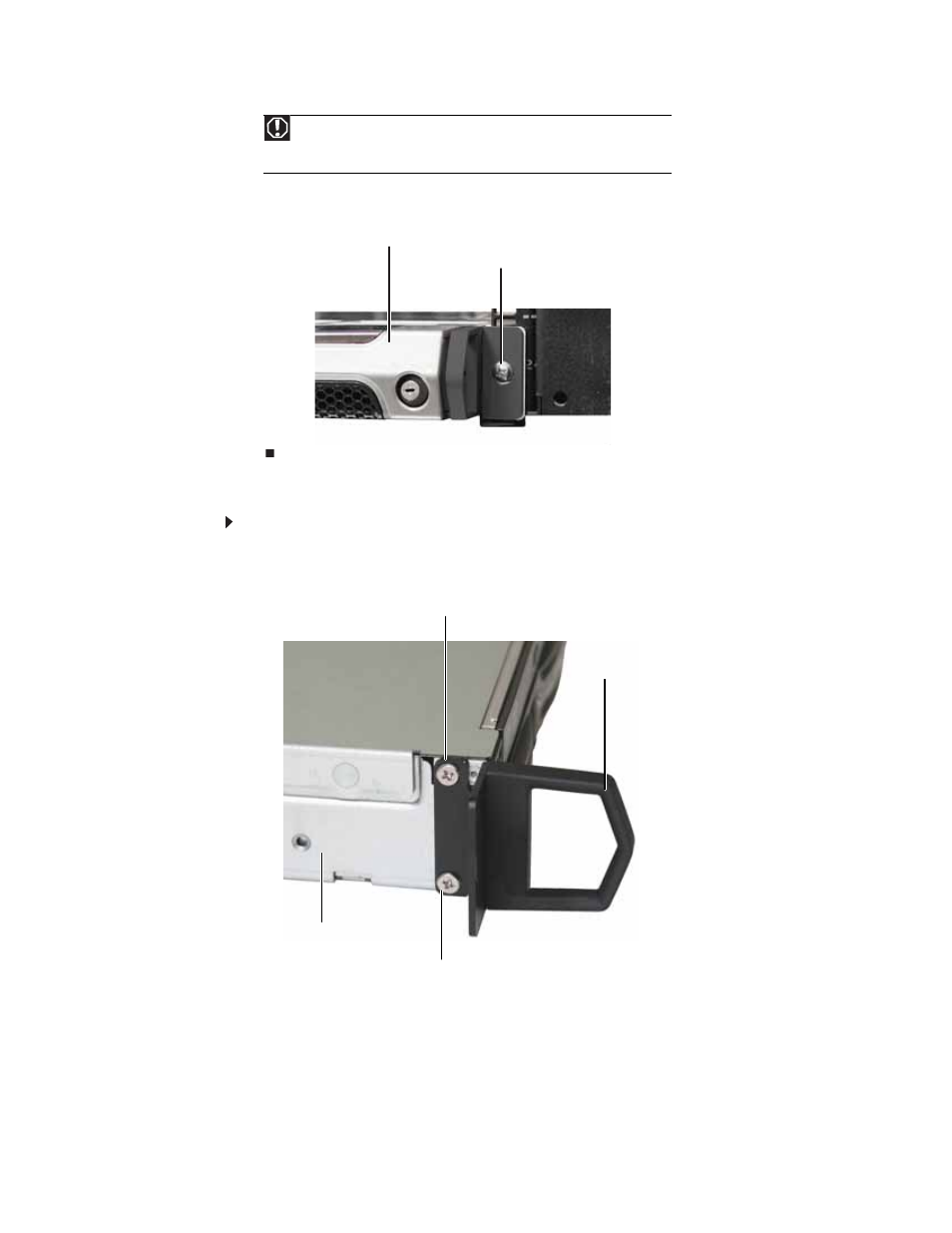

Align the mounting screw holes in the server handles with the front mounting nuts, then
secure the front in place with two mounting screws (one on each side).
Installing the bezel
To install the bezel:
1
With the server pulled out from the cabinet, align the holes in the handles with the holes
in the sides of the server.
2
Attach the handles to the sides of the server with two mounting screws on each side.
Warning
You must support the server while installing or removing the front and back
mounting screws. If the server is not supported, damage to the server or injury
may result.
Mounting screw
Server
Mounting screw
Mounting screw
Server (side)
Handle
