Drives 39

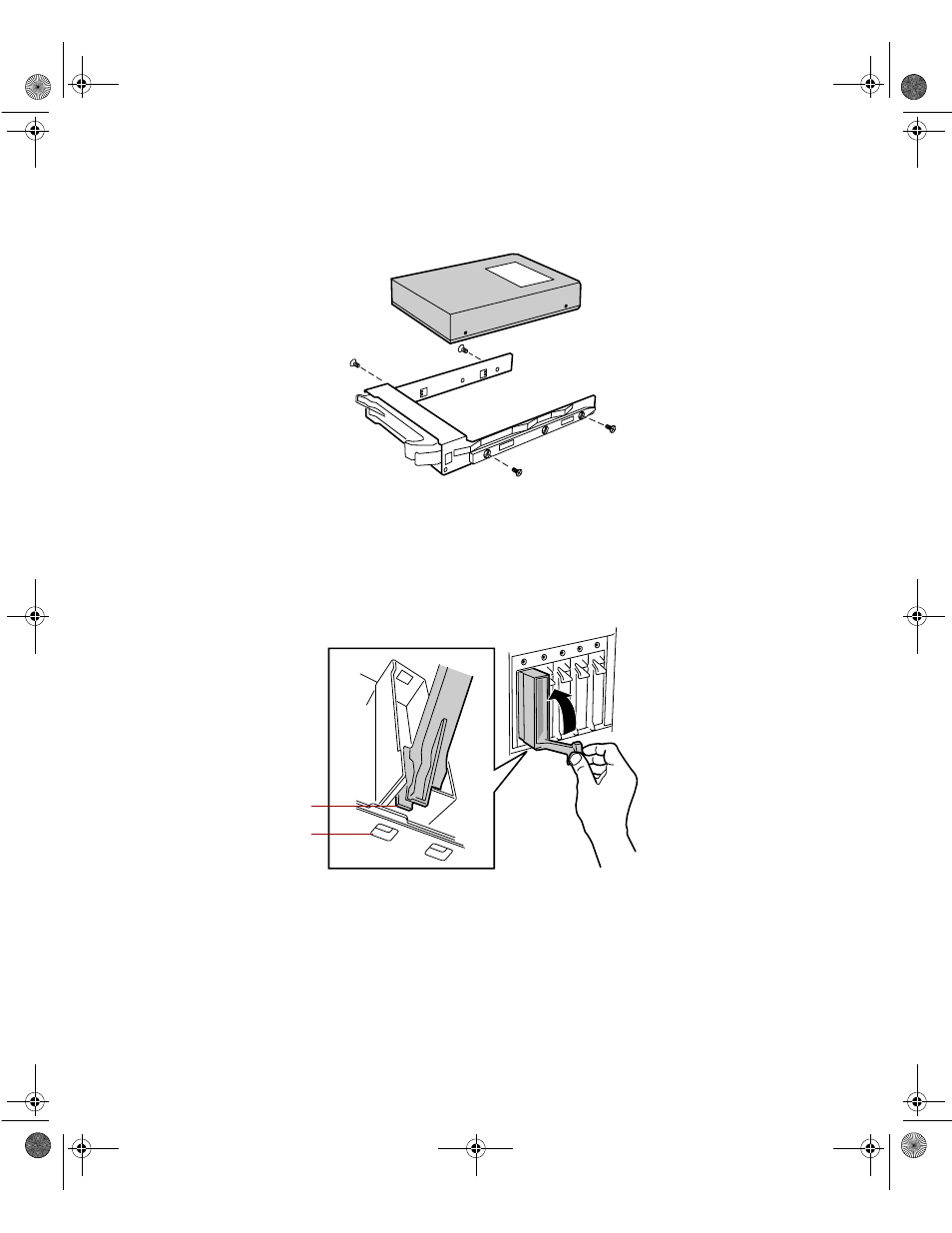

4 Use the four screws you removed in Step 3 to secure the new drive to
the drive carrier.
5 With the drive carrier handle in the open position, align the drive carrier
rails with the grooves at the top and bottom of the drive bay.
6 Slide the drive into the bay until the handle starts to close. Make sure
the tab on the bottom of the handle fits into the slot on the bottom of
the drive cage.
7 Close the handle securely to set the drive connector into the connector
at the back of the drive cage.
8 Close the bezel door.
9 Use the SCSI control utility to format and configure the new drive.
Tab
Slot
