Hot-swap backplane 15

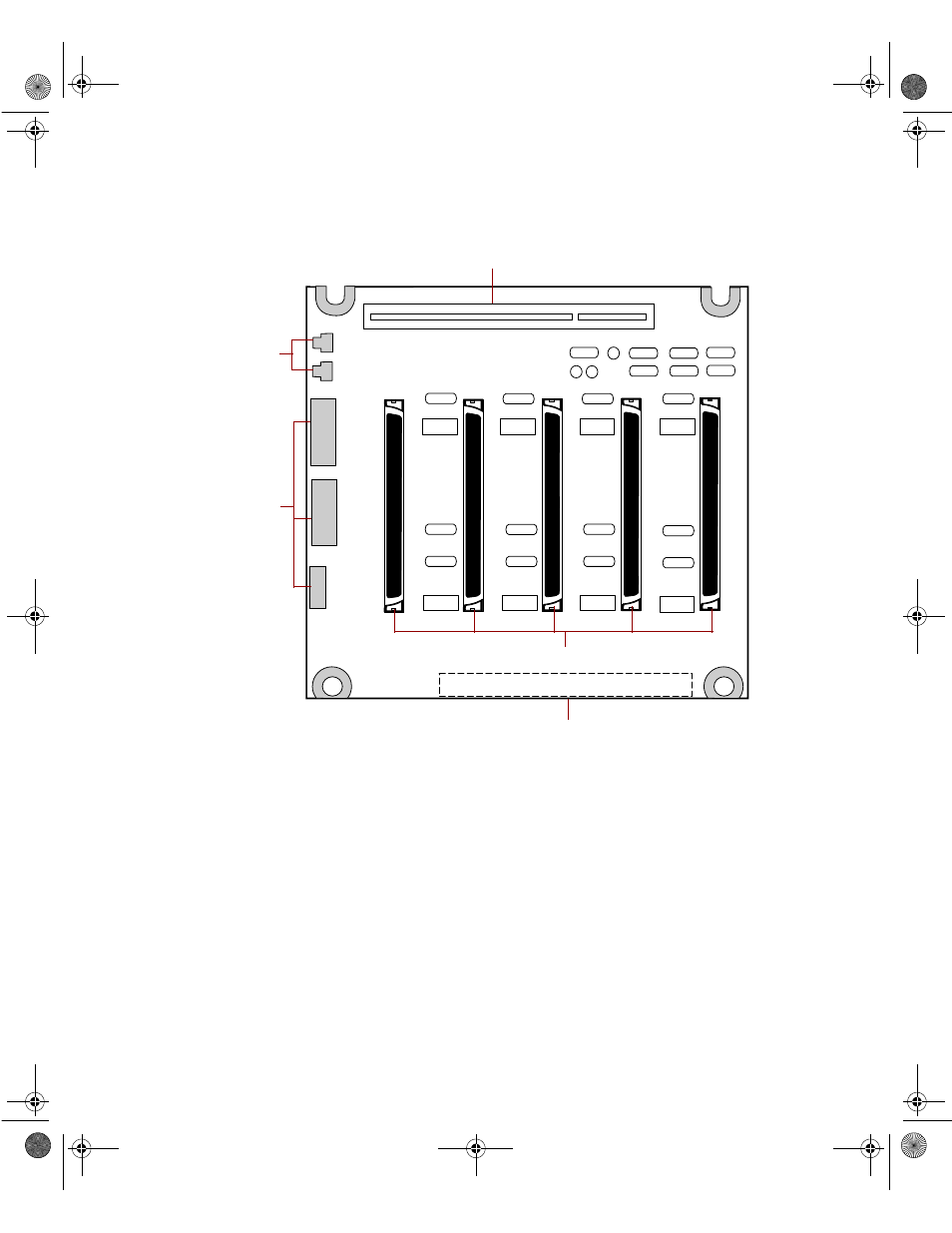

Hot-swap backplane
Hot-swap SCSI indicator board connector connects the hot-swap indicator
board to the hot-swap backplane.
SCSI drive connectors (5) connect the five SCSI drives. Install drives in
increasing order of SCSI ID.
SCSI data connector connects the SCSI cable from the redundant array of
inexpensive drives (RAID) controller.
Power connectors connect the power cables from the power supply.
Fan connectors connect to dedicated fans for the hot-swap drive bay (not
used).
Fan
connectors
Power
connectors
SCSI data connector
Hot-swap SCSI indicator board connector
SCSI
ID 3 SCSI
ID 4 SCSI
ID 1 SCSI
ID 2 SCSI
ID 0
SCSI drive connectors (5)
