limits, i.e., typically 2km at full-duplex and 412m at half-duplex.
The compact size of the LC Connector reduces the size of wiring panels in
wiring closets while providing the advantage of “future-proof” fiber optic technology.
The cable end is a “plug-in” connector with both fiber strands terminated in
one housing that cannot be improperly inserted. Each port has an Activity (ACT) LED
indicating packets being received, a Link (LK) LED indicating proper connectivity with
the remote device when lit, and a FDX/HDX LED indicating full-duplex mode when lit
(or half-duplex when off).
5.2.8 6KP8V-45LC, Combo 4@ 100Mbps multi-mode -LC small-form
factor and 4@ 10/100 Mbps RJ-45 Connector

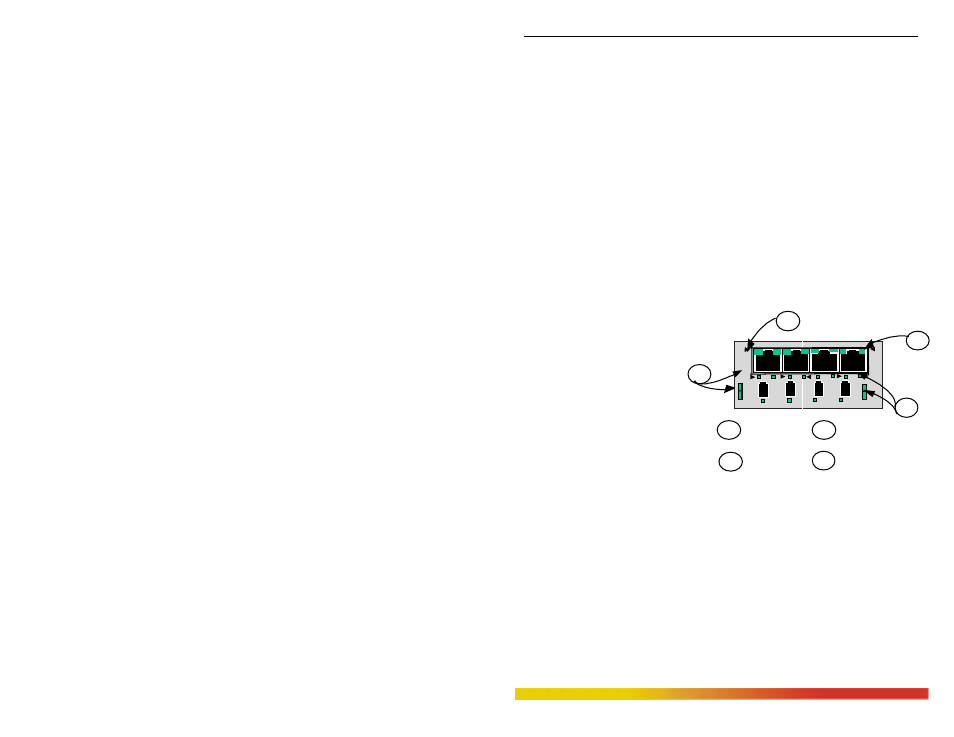

The Magnum 6KP8V-45LC Module is a combo module with a combination of
copper and Fiber (Small Form
Factor) LC type ports. The small
size of LC connectors give an
advantage of having more ports
on one module. The 6KP8V-
45LC is equipped with 4 10/100
RJ-45 ports and 4 LC( Small
form factor) multi-mode fiber
ports.
When installed in a Magnum
6K16V Switch, it supports the
standard distances as per mentioned on 5.2.8. and the LEDs also acts similarly as
mentioned above.
5.2.9 6KP8V-RJ45 (Twisted Pair), 10/100Mb 8-Port
The 6KP8V-RJ45 module supports Ethernet twisted pair segments of any
standard length. It is equipped with an eight-port RJ-45 connector, and offers 10/100 full
/ half-duplex auto-negotiating capability on each port. The RJ-45 connector is shielded to
minimize emissions and will allow both unshielded twisted pair (UTP) and shielded
twisted pair (STP) cable connections. The 6KP8V-RJ45 module is equipped with a
Media Dependent Interface-Crossover (MDI-X) switch to allow for one cascaded
connection. This feature eliminates the need for a special twisted pair crossover cable
4
3 2 4 6 8
LK LK LK LK
ACT
F/H
ACT
F/H
2
ACT
F/H
ACT
F/H
6KP8-45LC
4 Port@ 10/100Mbps & 4 port @ 100Mbps
Multi-Mode LC Fiber port
1 3 5 7
10/100 LK
1
F/H ACT
4 FULL/HALF
1
ACTIVITY
LINK 2
3
10/100
