described for installing a 6KPM card discussed in Section 3.6.1.
3.7
Connecting a Management Console Terminal to Magnum 6K16V
Use a DB-9 “null modem” cable (use on any serial port)or “one DB-9 and one
USB” ( USB port on the laptop) null modem cable to connect the
Magnum6K16V Console Port (the RS-232 port on the 6K16V Switch) to the
your PC, so that your PC becomes the 6K16V’s Console Terminal.
Note: A console cable (either of the two types) may be purchased as a separate item
with the 6K16V unit. They are not “bundled” with the unit.

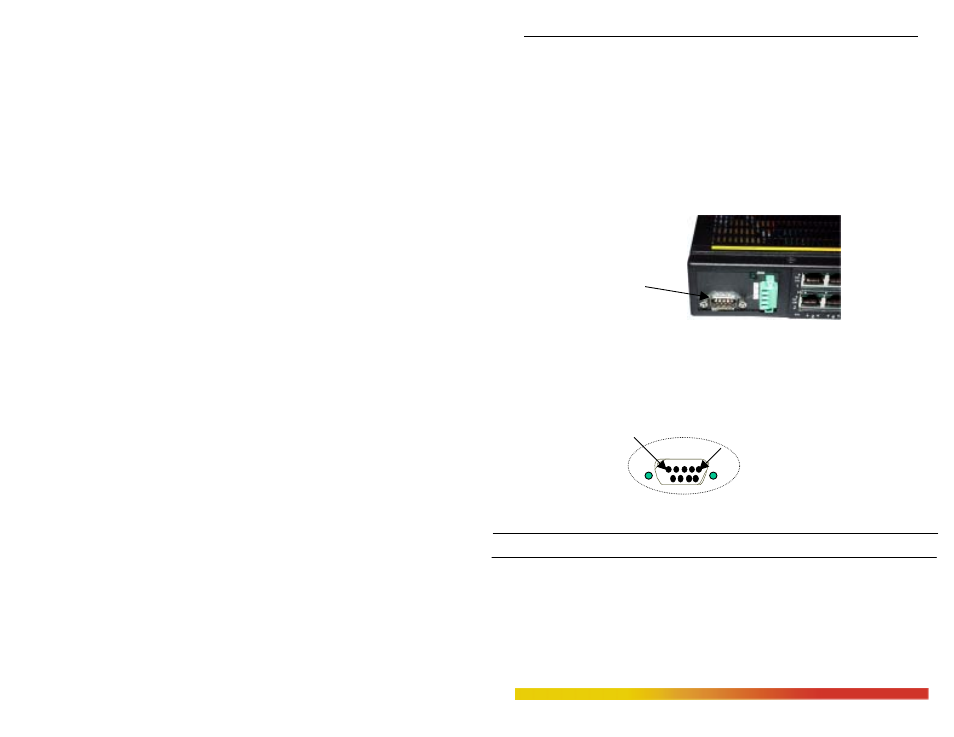

Enlarged view of Magnum 6K16V Console Port area
Note: For a detailed description of Managed Network Software (MNS-6K) and
Magnum 6K16V Switch configuration for Network Management, please refer to
Magnum 6K16V Software Manual available on GarrettCom‘s FTP site. Some info.
about the MNS-6K software is available in Section 2.2.9 of this manual.
3.7.1
RS-232 (DB-9) Console Com port (Serial port) pin assignments.
Pin 1
Pin 5
DB-9 (Console port connector)
Pin
Signal
Description
1
CD
Carrier detect (not used)
2
RXD
Receive Data (input)
3
TXD
Transmit Data (output)
4
open
not used
5
GND
Signal Ground
6-9
open
not used
The above provided information enables a management station ( a PC or Console
terminal) to connect directly to the Switch Console using a straight-through cable.
Console
Com.
(DB 9) P t
