Magnum 6K16V Managed Fiber Switch Installation and User Guide (01/04)
41
www GarrettCom com . .
much as 40+ Km (see Power Budget, Section 4.5)
Each port has an Activity (ACT) LED indicating packets being received, a
Link (LK) LED indicating proper connectivity with the remote device when lit, and a
FDX/HDX LED indicating full-duplex mode when lit (or half-duplex when off). The
10/100 LED indicates the speed for the copper port, which is 100Mbps when the LED is
ON and 10 Mb when the LED is OFF.
5.2.5 6KP8V-MTRJ, 8 @100Mb m.m. FX , MTRJ Small-Form-factor

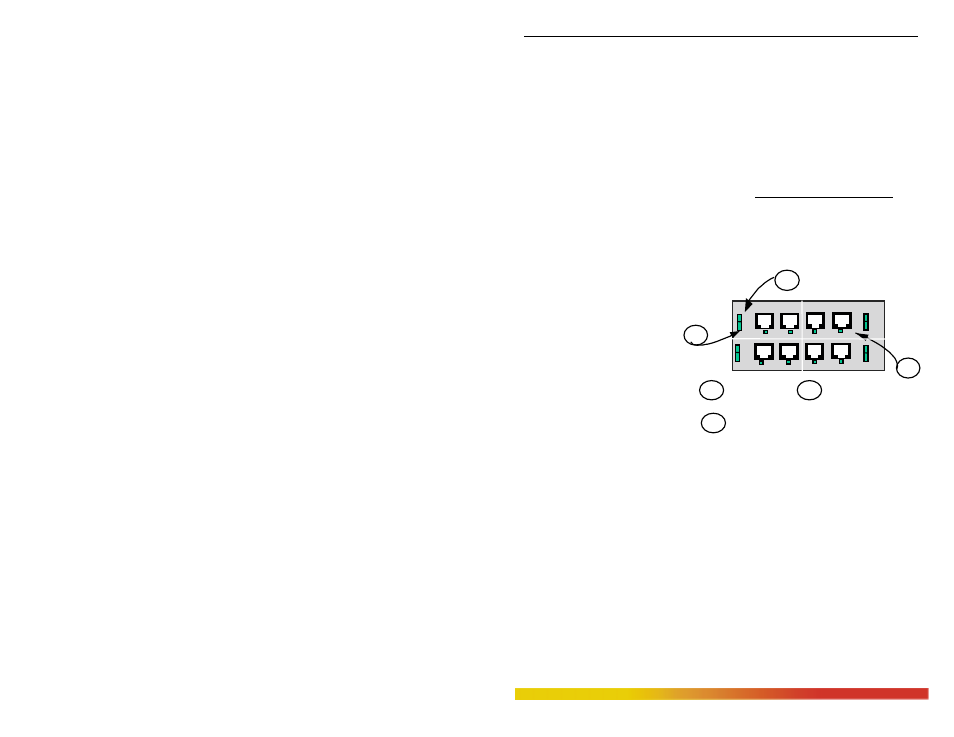

Magnum 6KP8V-MTRJ is a multi-mode fiber optic 8-port module equipped
with a small-form-factor
MTRJ-type connector. It looks
almost like an RJ-45 port, but it
is black in color. The MT-RJ’s
small size and ease of
connection make it a good
choice for 100Mbps “fiber-to-
the-desktop” Ethernet
connectivity. When installed in
a Magnum 6K16V Switch, it
supports fiber optic cable
distances up the IEEE-standard
100Mbps distance limits, i.e., typically 2km at full-duplex and 412m at half-duplex.
The functionality of this 100BASE-FX multi-mode 8 Port module is essentially
the same as the ST and SC-types. It has the same LEDs per port indicating port activity
(ACT), Link (LK), and FDX or HDX operation.
5.2.5a 6KP6V-RJ10ST,4 @100Mb multi-mode FX , MTRJ Small-Form-
Factor and 4@ 10Mb Multi-mode ST-Fiber port
The 6KP6V-RJ10ST is a combo module with two different kinds of fiber flavor
with two different speeds. The top four ports of MTRJ Small form factor fiber support at
100Mb full-duplex, whereas the bottom two ports multi-mode ST-Fiber support 10Mb
half-duplex. This combo module provides more flexibility to the user to connect their
legacy 10Mb fiber as well as 100Mb to the Magnum 6K16V Switch.
“small-form-factor”
FULL/HALF
1 ACTIVITY
LINK
2
2
3
3
1 3 5 7
2 4 6 8
LK LK LK LK
ACT
F/H
ACT
F/H
ACT
F/H
1
ACT
F/H LK LK LK LK
ACT
F/H
ACT
F/H
ACT
F/H
ACT
F/H
6KP8-MTRJ,
8 Port@ 100Mbps Multi-Mode Fiber port
