female connector for the installation

Step 5. Once the latching

connectors are aligned

properly and the mounting

holes are aligned with

stand offs then press

slowly and firmly with two

fingers (as shown below in

Fig. 3.6.2f) on the top of

the latching connectors

until the connectors

latched up securely.

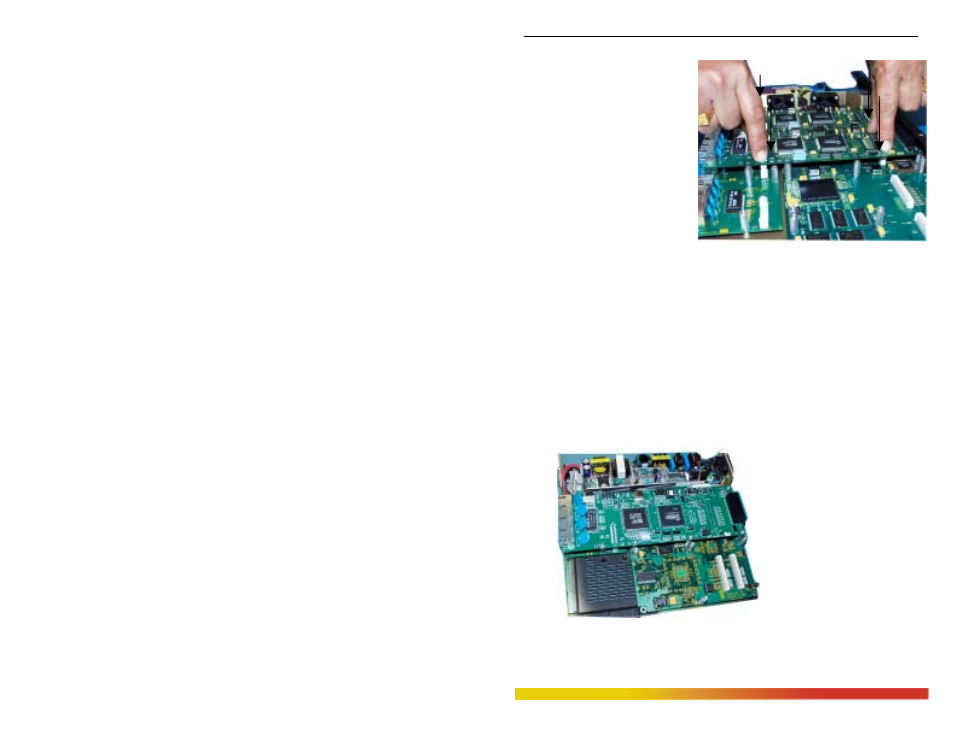

Figure 3.6.2f: Securely latching up 6KPM Cards into a Magnum 6K16V

NOTE: All 6KPM slots need not be filled in order for the Magnum 6K16V unit to be

operational. When leaving 6KPM slots empty, always use a face plate (Magnum 6K8-

BLNK) to cover the slot opening in the front panel. This will maintain proper cooling

air flow, safety, and operation as required by FCC, CE, and other regulations.

Step 6. Now screw down the daughter board with 6 #440 screws, so that it holds the

daughter board securely. The figure below shows the top view of 6KPM card

after successfully

installing the 6KPM

cards inside the

Magnum 6K16V.

Fig. 3.6.2g Top View :

6KPM Module installed inside

a 6K16V

Step 7. Once the installation of

granddaughter and

daughter modules is

done, the front panel screen plates need to be placed on the front of the chassis

cover to complete the installation process for that port module. The front panel

screen plate comes along with the package of port module separately along with
