Magnum 6K16V Managed Fiber Switch Installation and User Guide (01/04)
39
www GarrettCom com . .
6KP4V-RJ10MST,
4 Port@ 10Mb ST Fiber Port
2 6 T LK RX
ACT
F/H
TX RX LK
ACT
F/H
TX RX LK
ACT
F/H
TX RX LK
ACT
F/H
1 5 3
2
1
FULL/HALF
1 ACTIVITY LINK 2
3
10/100 LED indicates the speed, if the LED is ON, 100Mbps if it is OFF, 10Mbps.

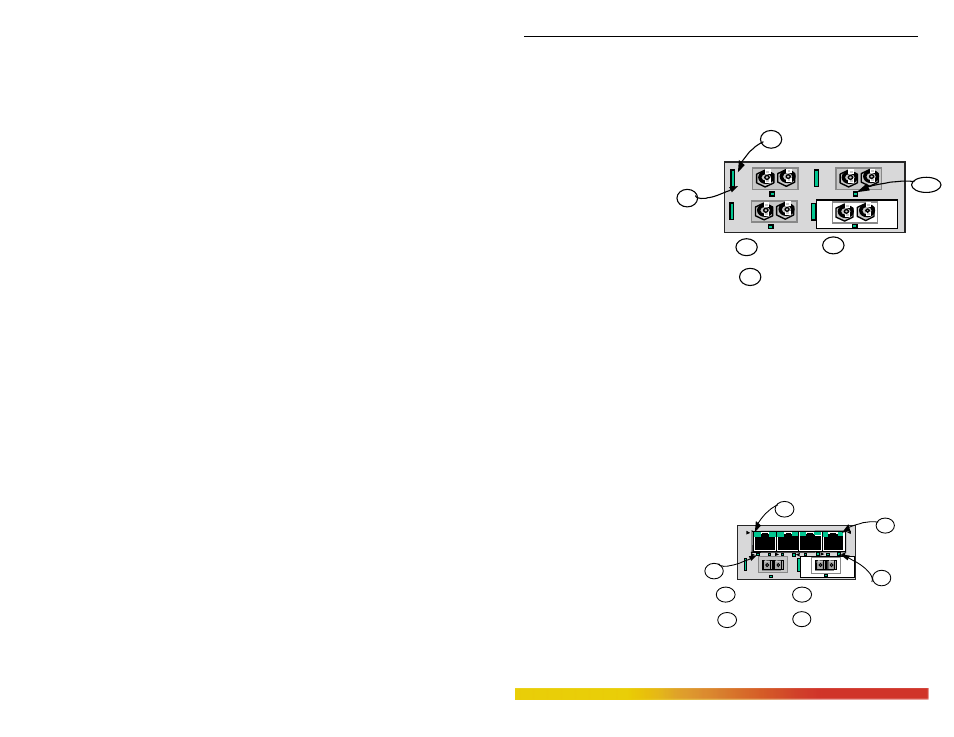

5.2.1b 6KP4V-F10ST, 4@10Mb multi-mode FX-ST “twist lock” Module
The Magnum 6KP4V-F10ST is
a 10Mb multi-mode fiber
module with 4 ST-Fiber ports.
All four fiber ports are ST
connectors and configured as
10Mb Half-duplex by default.
The 10Mb ST-fiber ports allow
the user to connect their legacy
10Mb network to the Magnum
6K16V switch. They also
provide a convenient way for
the half duplex hub to connect to the switch through 10Mb fiber ports. It supports
distances according to the 10Base-FL standard i.e, 2Km distance for multi-mode fiber.
(Single-mode for 10Km distance may be available as a special order).
Each port has an Activity (ACT) LED indicating packets being
received, a Link (LK) LED indicating proper connectivity with the remote device when
lit, and FDX/HDX LED indicating full-duplex mode when lit (or half-duplex if off).
5.2.2. 6KP6V-RJMSC 4@10/100Mbps RJ-45 and 2@100Mb multi-mode FX-SC
“snap-in” Fiber connector
The Magnum 6KP6V-
RJMSC is also a Combo 6 Port
module equipped with 4 10/100Mb
RJ-45 ports along with 2 multi-
mode 100Mbps fiber optic
transceivers all in one module. This
is similar to the 6K6-RJMST. It has
the same LEDs indicating port
activity (ACT), Link (LK), and
FDX / HDX and 10/100 operation, and the same face-plate lettering.
While the functionality of these two modules is essentially the same, the
6KP6-RJMSC,
4 Port@ 10/100Mbps and 2 @100 Mb SC Fiber Port
4 FULL/HALF
1
ACTIVITY
LINK 2
4
3
3
10/100
1 3 5 7
2 6 TX RX TX LK RX LK
ACT
F/H
ACT
F/H
10/100 LK
F/H ACT
2
1
