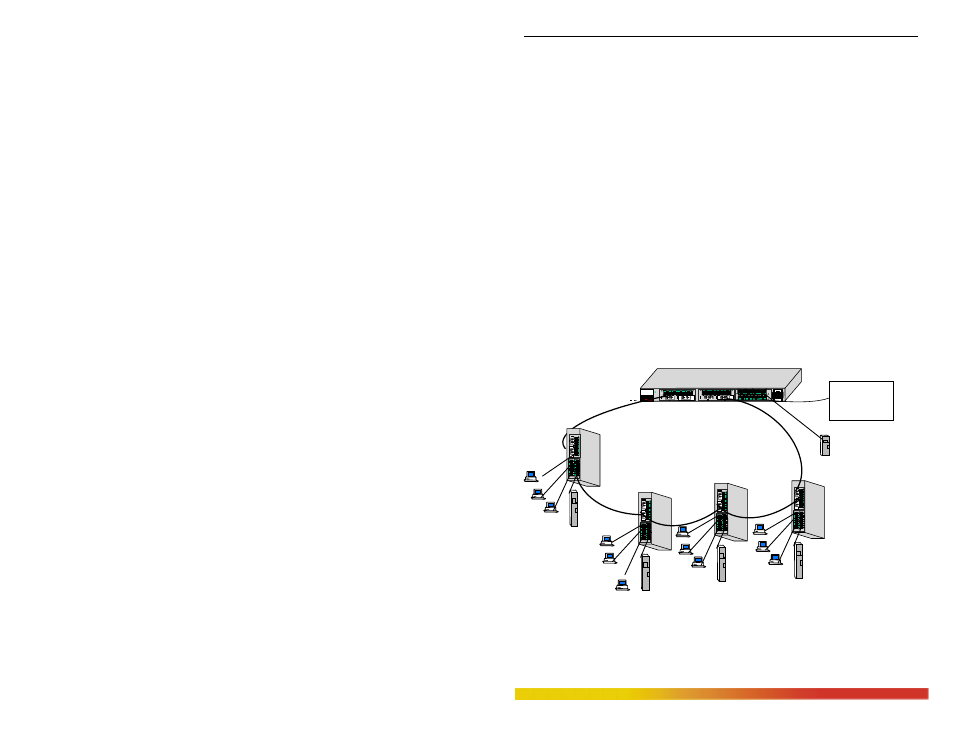

ring topology of the network consists of high speed LAN segments supported by
100Mbps full-duplex future-proof fiber media to provide secure long distance LAN
connection. The entire network is sharing a higher bandwidth Gigabit-enabled data-
mining server for the vital database located in a separate secured building. The copper
ports are required for multiple subnets inside the power plant to check the . The entire
spread network will be manageable to provide easy, detectable, uninterrupted support
through a viewable SNMP monitor.
The Magnum 6K16V Managed Fiber Switch equipped with the mix of copper
and fiber ports provides an economical and seamless solution to the requirements. The
user-configurable Magnum 6K16V provides an extra boost to the network requirements
by providing copper/fiber media along with the higher bandwidth support of 10/100 and
1000Mb. The user can utilize the SNMP feature equipped with VLAN, RMON, STP and
other standard managed LAN features to provide a secure and stable network.
The 6K16V Managed Fiber with S-ring and Link-Loss-Learn feature easily
fulfilled the redundant requirement in a secured and faster reconfiguration time for cable
breakup, by setting up in a ring topology. The Gigabit port option boosts the bandwidth
for high speed to support the peak traffic and minimize congestion.
