available as four 10/100 switched RJ-45 copper ports and two 100Mb switched multi-
mode fiber ST, SC or single mode SC or Long Reach SC ports. For ports numbering,
ports 1,3,5,7 are copper, ports 2 and 6 are fiber, ports 4 and 8 are not present.
4@ RJ-45 + 2@ 100Mb SC
The four RJ-45 ports operate just like the 8-port copper module, and the two fiber ports
operate at 100Mbps full-duplex (default). User mode control per port through the MNS
software is also the same.
On Magnum “4+2” Combo modules, there are four LED’s for each RJ-45 port,
which indicate status the same as described for the 6K8-RJ45 in Section 2.2.3 above. The
fiber port’s LEDs indicate status the same way as described for the SFF fiber modules in
Section 2.2.2 above. Color-coding on the panel of the module shows which LEDs
belong to which port.

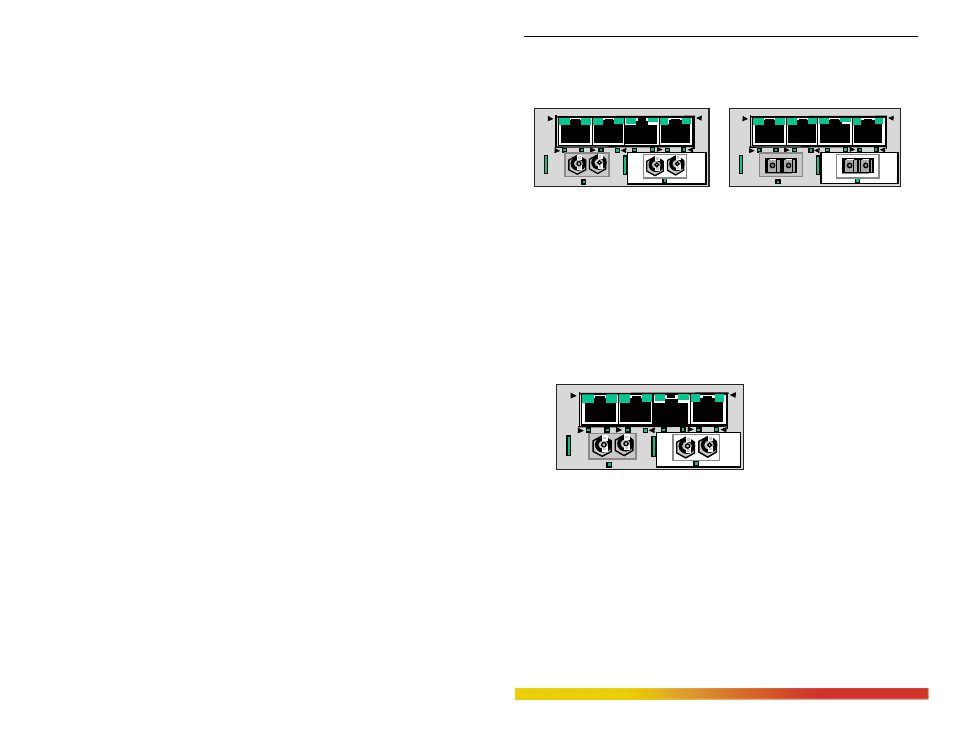

The Magnum Combo
six-port modules are also available
with 4@ MTRJ 100Mb mm SFF
fiber and 2@10Mb fiber mm ST
ports, and with 4@ RJ45 10/100
copper and 2@10Mb fiber mm ST
ports. The 4@ RJ-45 + 2@ 10 Mb ST operation of the SFF fiber
and the RJ-45 half of the module is as described for those port types above. For detailed
information about 10Mb mm ST fiber half of the module, see Section 2.2.5.
