Product Description - Magnum 6K16V Managed Fiber Switch

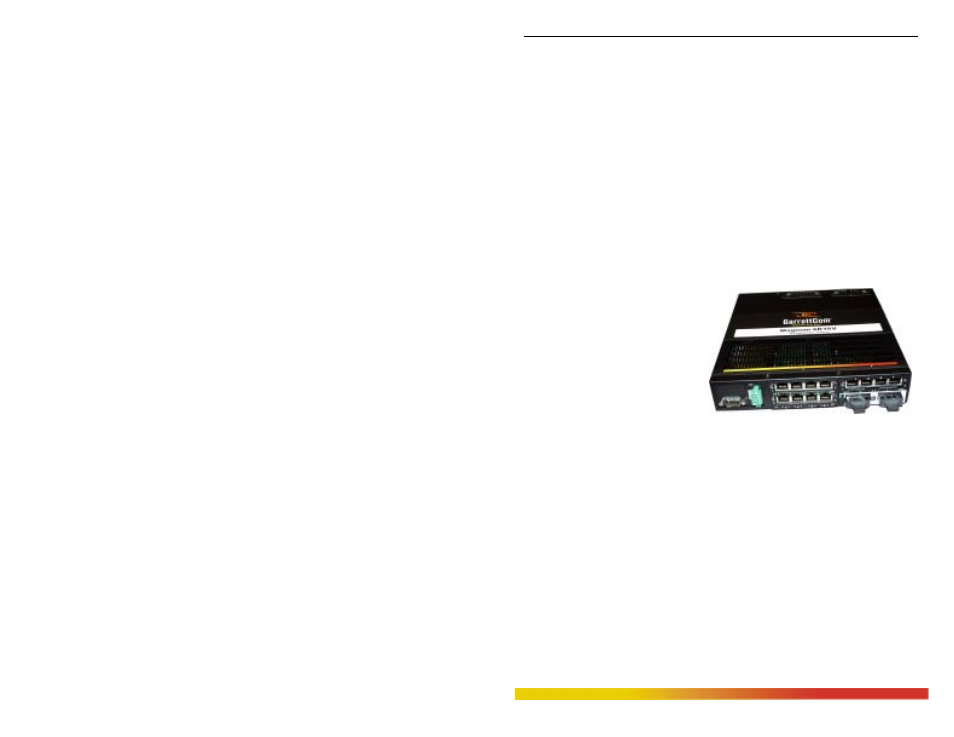

agnum 6K16V Managed Fiber Switches provide modularity of fiber and
copper ports, 10Mb 100Mb and Gigabit speed ports, and comprehensive management
software in a compact industrial-grade package. Setting a new standard for Industrial and
Carrier Class applications, heavy duty Ethernet Switch jobs are readily accommodated
with an extended temperature rating of -40 C to 60 C by the UL Component Parts
method, or -50 C to 95 C by the IEC 60068 Type Test method. With options such as
all popular DC power input types, worldwide AC power, and DIN-Rail mounting, the
hardened Magnum 6K16V is a “go-anywhere do-anything” Industrial Ethernet Switch.
The large family of port modules offer the choice of all fiber media (all
connector types, multi- and single-mode) and 10/100 Mb auto-negotiating RJ-45 ports.
Standard GBIC ports can be configured for a variety of Gigabit cabling types and
distances.
High performance features
include non-blocking speed on all ports
and 802.1p QoS Traffic Prioritization.
Magnum 6K16Vs are “plug-and-play”
ready for use as backbone switches
where a mix of bursty data traffic and
priority streaming traffic for VoIP and audio/video applications is present.
Magnum 6K16V Fiber Switches are provided with LAN management software
including SNMP, Tag- and Port-based VLANs, IGMP Snooping and Port Security,
control via command line interface. For high availability LANs using ring topologies,
Spanning Tree Protocol, Link-Loss-Learn and S-Ring are available. See the Managed
Networks Software (MNS-6K) and S-Ring datasheets for additional details on the
comprehensive set of software programs and options.
Designed for use in transportation and traffic control systems, power utilities,
industrial factory-floor jobs, and video surveillance systems with segments requiring
Gigabit backbone interconnections, the Magnum 6K16V is easy to install and operate.
The next generation of industrial applications will need advanced managed network
software, operation at extended temperatures, fiber ports modularity, support for self-
healing ring structures, and gigabit backbone configurability. The Magnum 6K16V has
