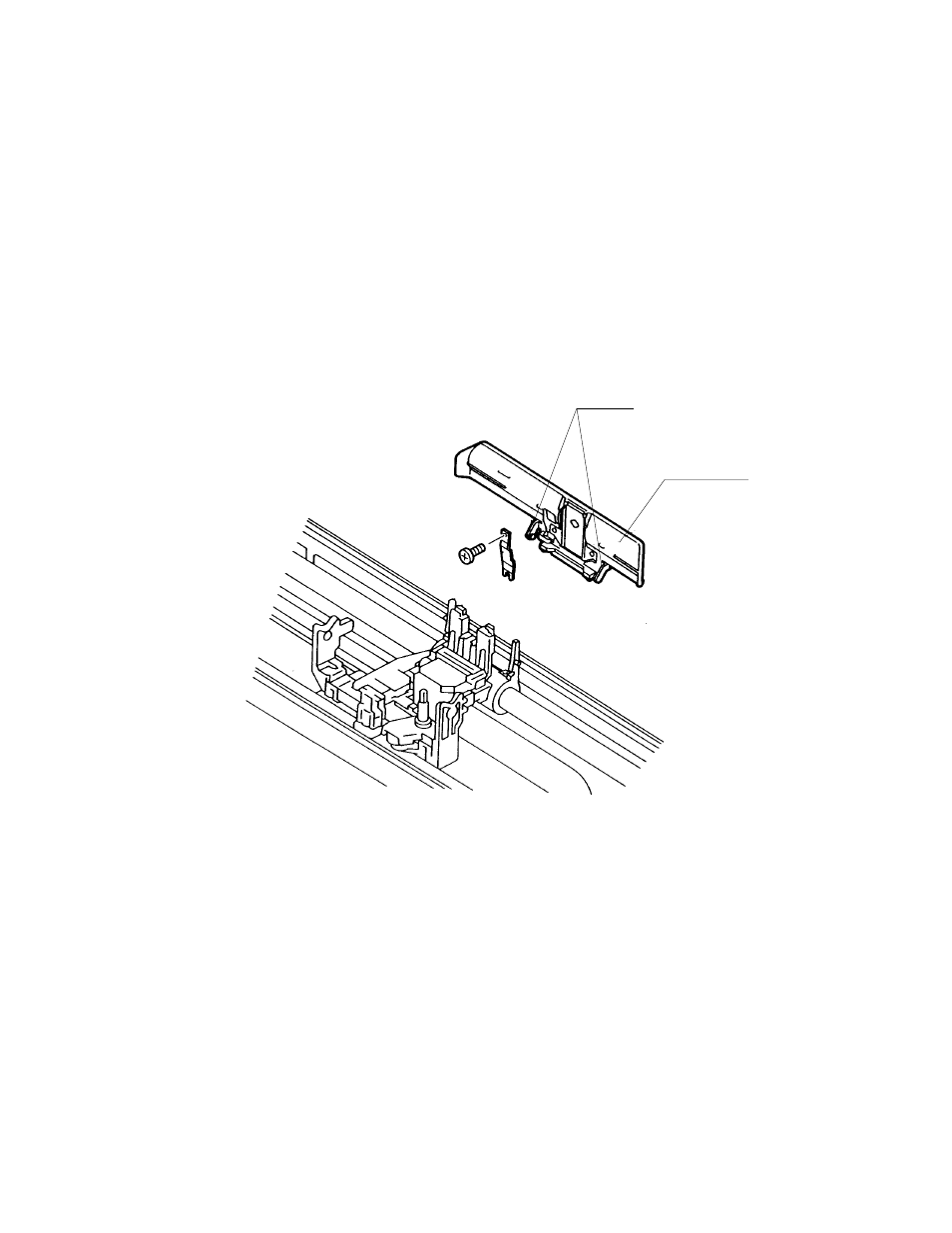

(17) Card guide assembly replacement
Removal
1.
Remove the platen assembly (Section 4.9.1(9)), print head (Section 4.9.1(14)), and feed roller assembly
(Section 4.9.1(16)).
2.
Remove the small screw which retains the sensor cable on the card guide.
3.
Push the two hooks outwards to remove the card guide from the carriage unit.
Card guide
Installation
Install the card guide in reverse order of removal.
Note:
When replacing the card guide, be careful not to damage card guide hooks.
Hooks
