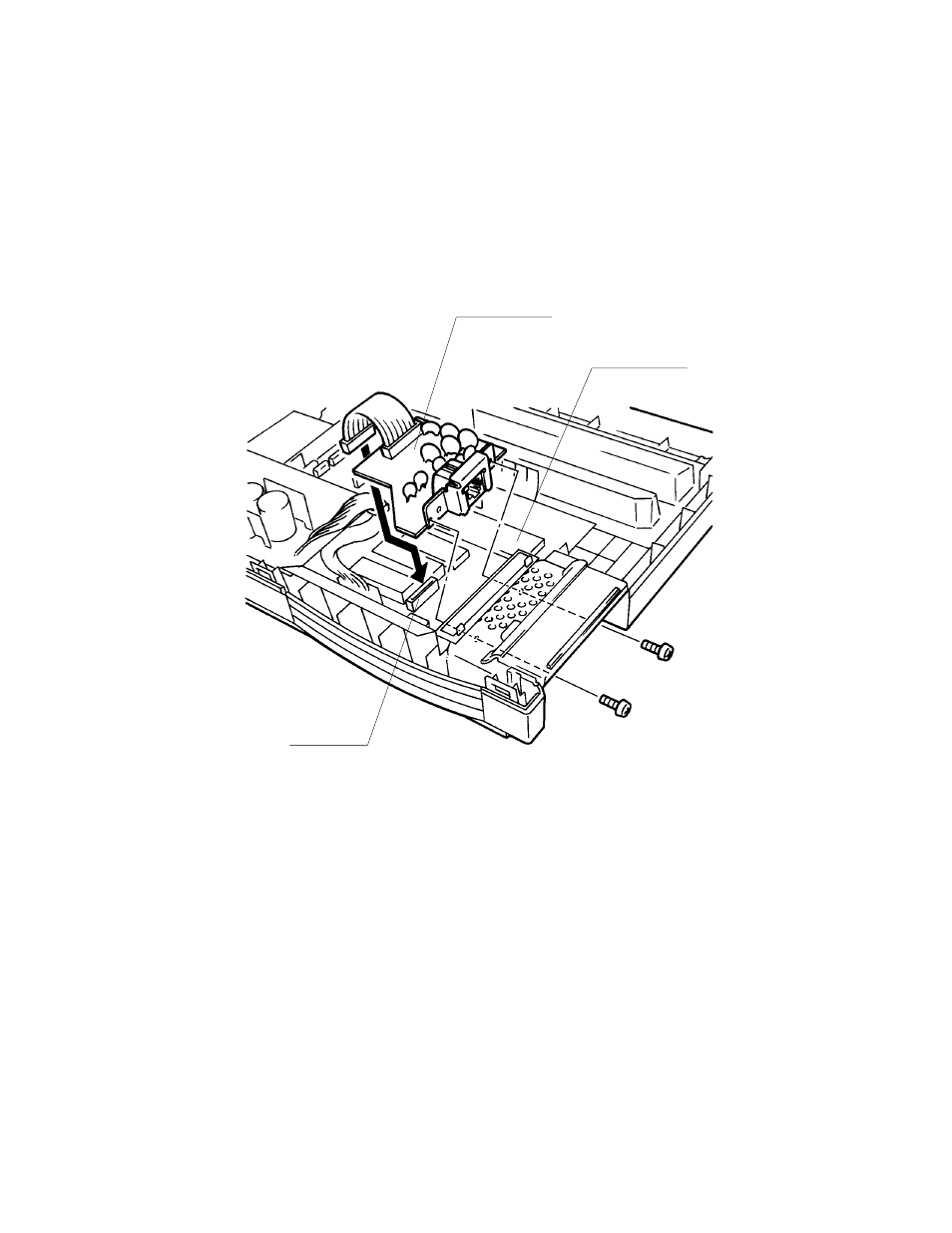

(7) RS-423 board replacement
Removal
1.
Remove the two screws using the screwdriver M2-M2.5 (for Phillips screws).
2.
Unplug the CNRS connector from the control board, then remove the RS-423 board.
RS-423 board.
Connector
Control board.
