5-18
Sensors:
Paper select
Paper end
Power supply
100 V: PW34AA
200 V: PW34 BA
Paper feed
motor
Control board (main board)
RC98CB
AC input
100 ~ 200 VAC or
220 ~ 240 VAC
CNLF
Print head
Carriage
motor
CNSP CNOP
RO93BF
Control panel
CN423
INFCEN
Centronics
RS-423
RS95AA
RS423
CNPW CNHD1 CNHD2 CNHD3 CNSEN
Color ribbon
shift motor
Sensors:
Left end

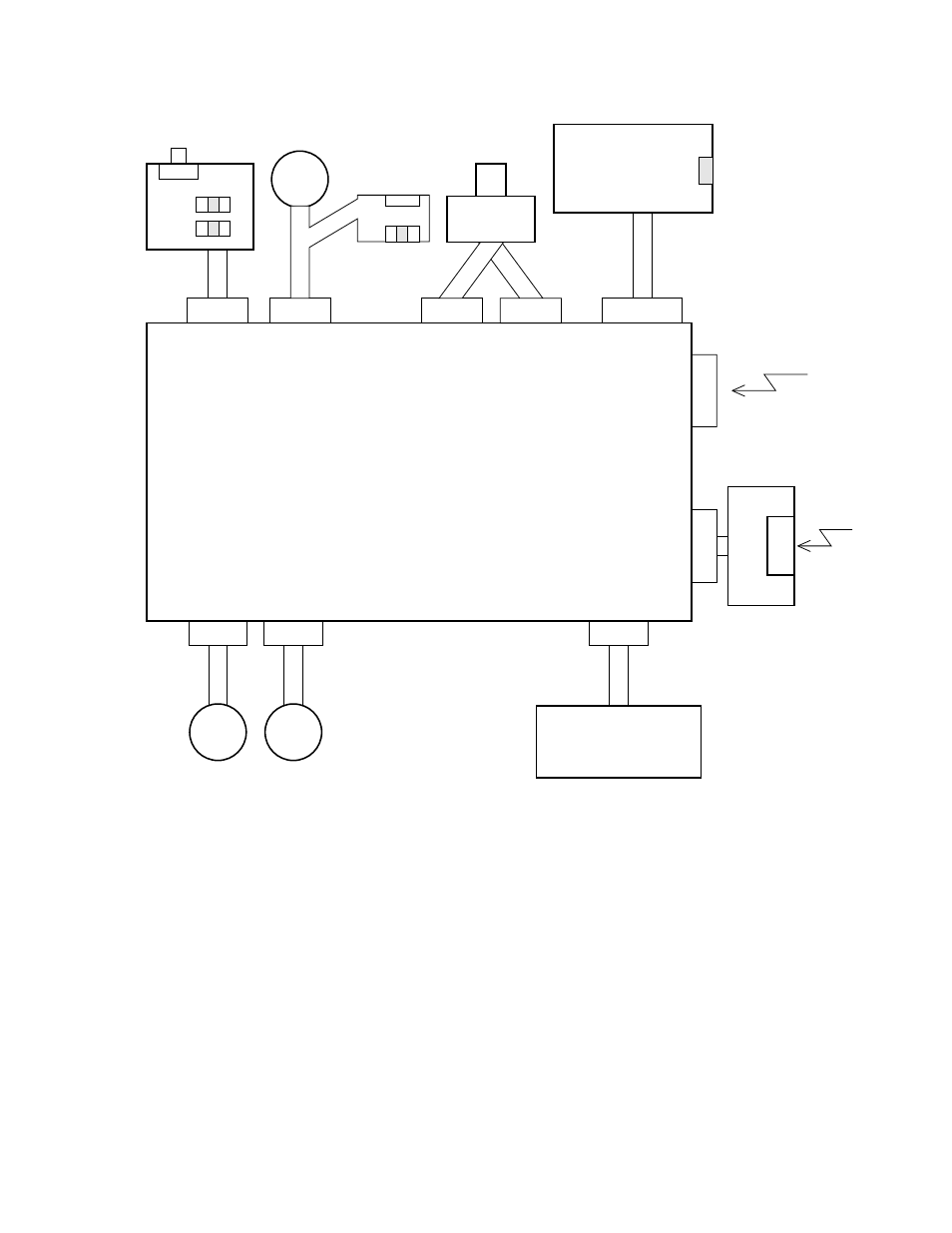

Figure 5.18 Connection diagram
