4-21
(9) Platen roll assembly replacement
Removal
1. Remove the tractor unit (Section 4.9.1 (2)) and covers (Section 4.9.1 (3)).

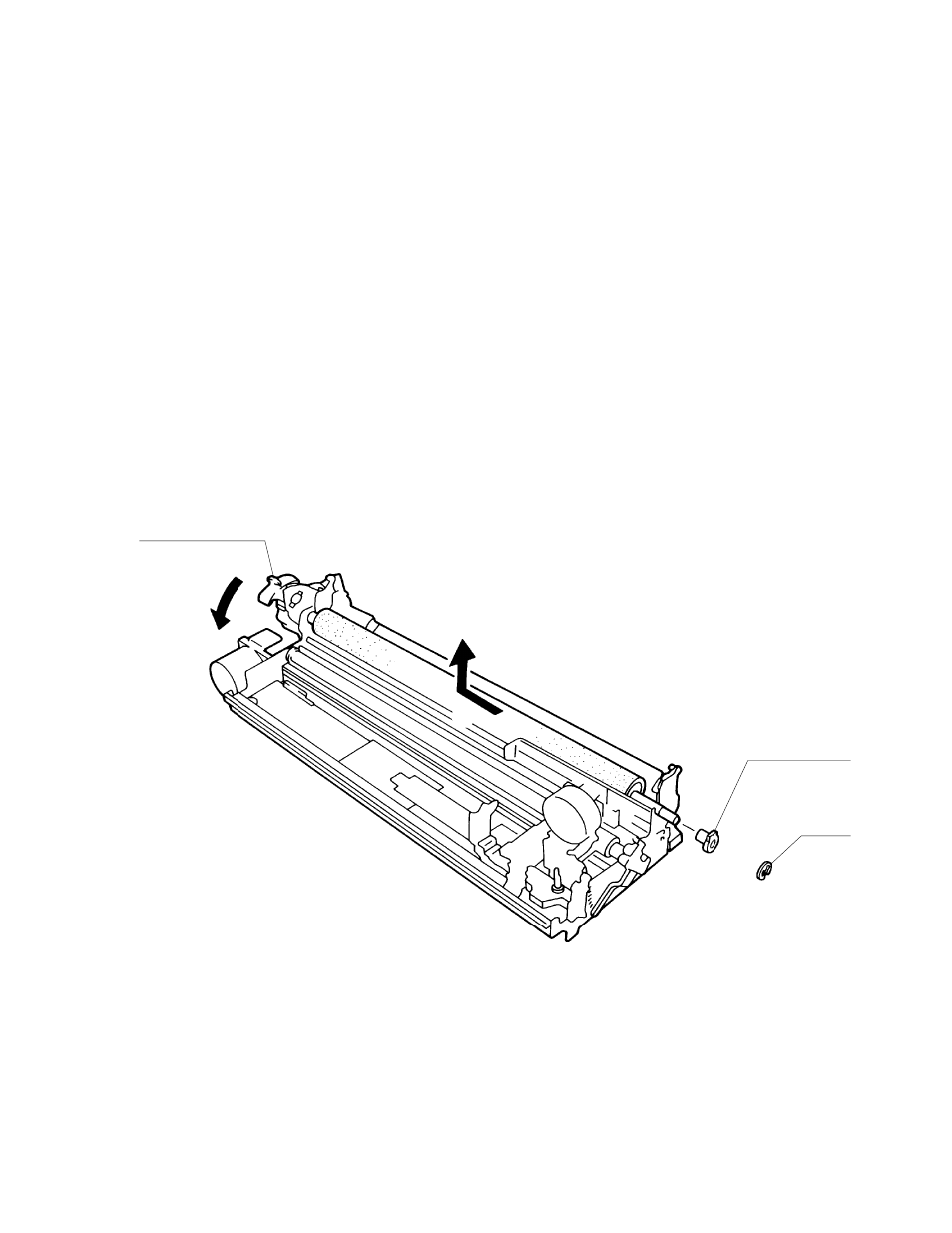

2. Move the paper select lever as shown below (A).
3. Remove the E-ring.
4. Holding the platen, pull the right platen bearing off the shaft.
5. Move the carriage unit all the way to the right.
6. Move the platen roll all the way to the left (B) and remove the left platen bearing.
7. To remove the platen roll, lift it up (C).
Platen bearing
A
C
B
Installation
Install the platen in reverse order of removal. See Section 4.9.2 (1) for print head gap adjustment and Section
4.9.3 (1) for lubrication.
E-ring
Paper select lever
