4-24

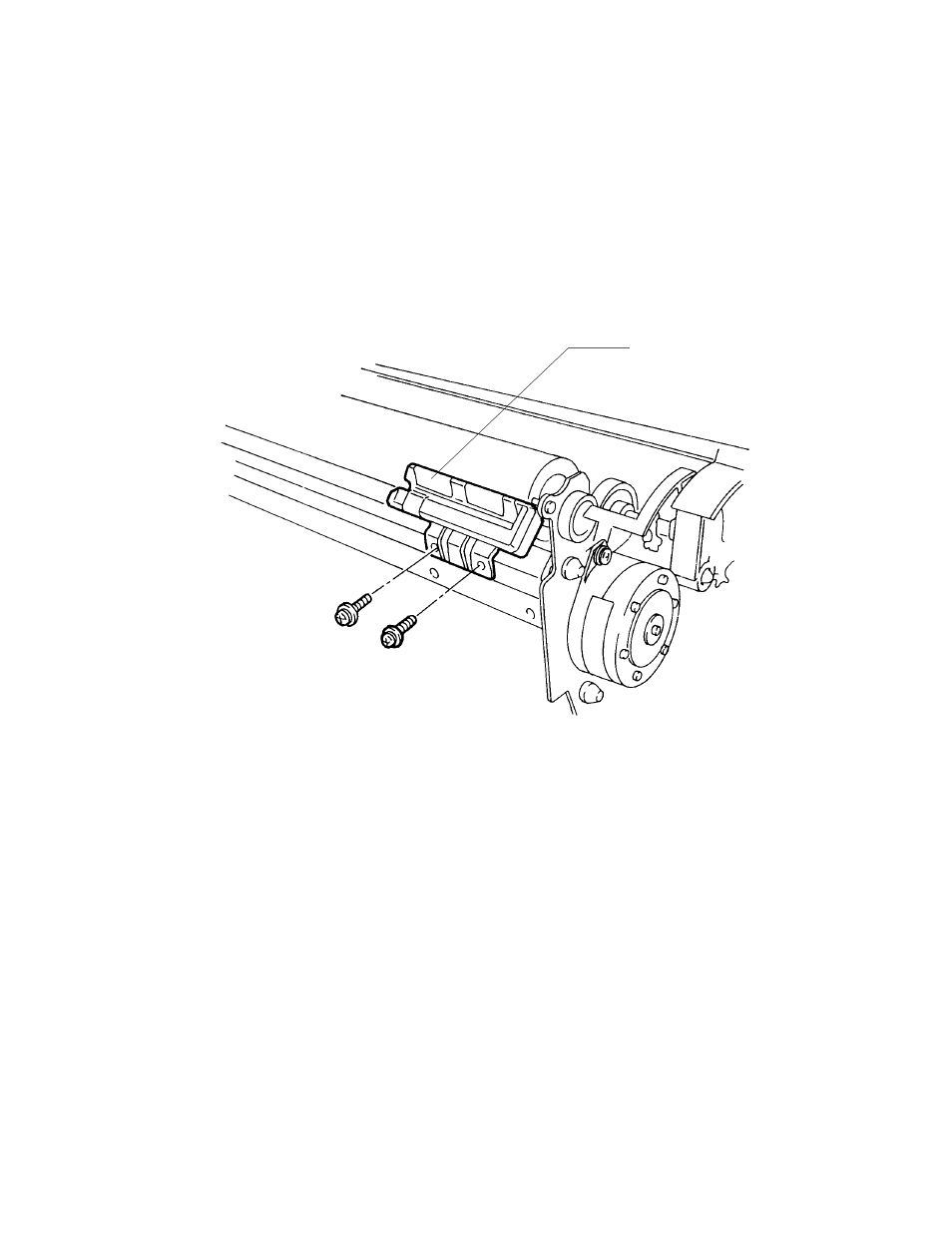

(12) Sensor T assembly replacement
This sensor detects a cut sheet placed on the cut-sheet stand.
Removal
1. Remove the tractor unit (Section 4.9.1 (2)) and covers (Section 4.9.1 (3)).
2. Remove the two screws to remove the sensor T assembly while disconnecting the sensor wire cable.
Installation
Install the sensor assembly in reverse order of removal.
Sensor
