(15) Gear assembly replacement
The gear assembly transmits power to the paper feed mechanism. It has a mechanism that determines whether
power is also transmitted to the push tractor. The assembly includes the LF motor.
Removal
1.
Remove the printing mechanism (Section 4.9.1(5)).
2.
Remove the platen assembly (Section 4.9.1 (9)).
3.
Set the paper select lever toward the back of the printer.
4.
Loosen the long screw and unhook the three holders from the side frame to remove the gear assembly.
Installation
Install the gear assembly in reverse order of removal.

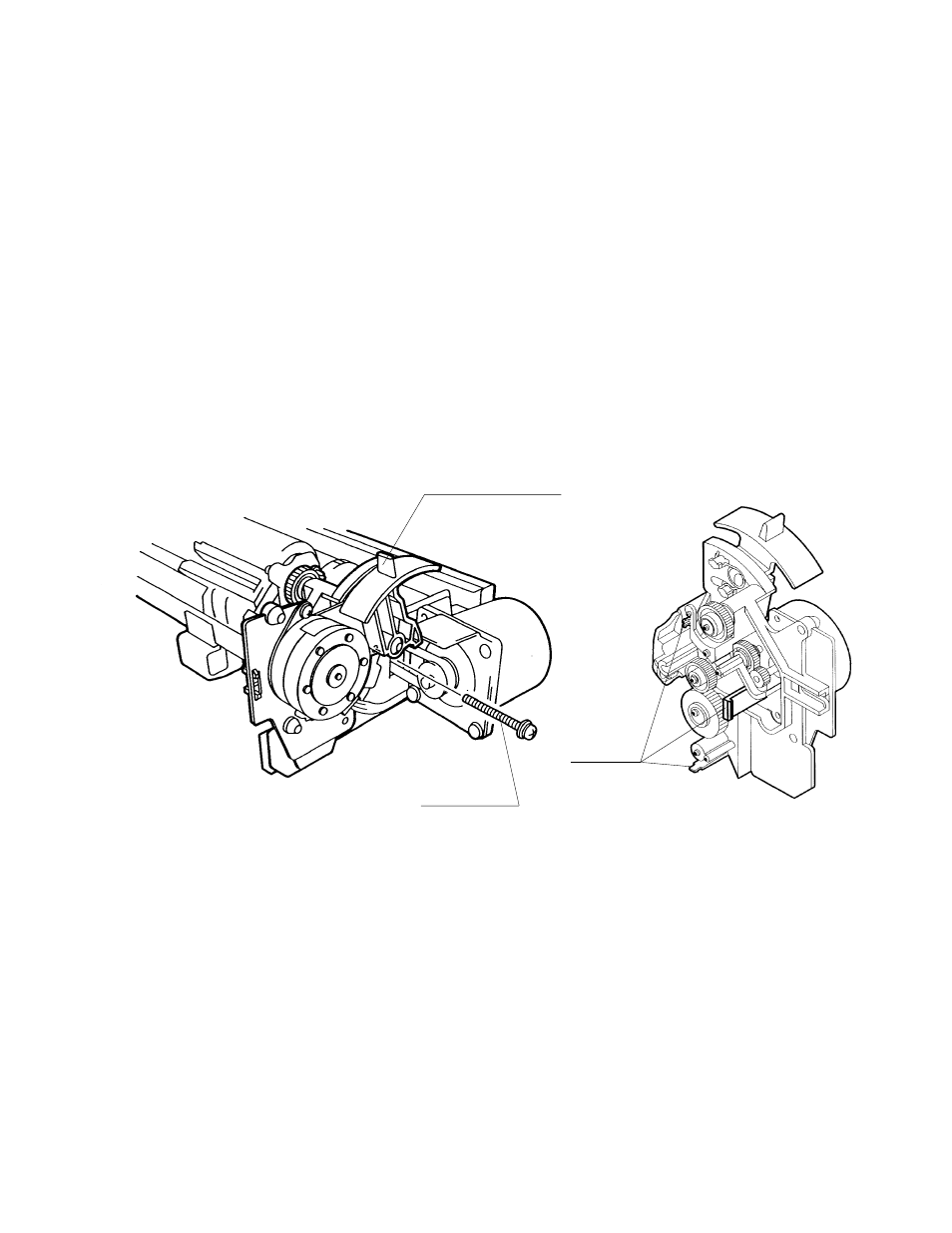

Long screw
Paper select lever
Holders
