(10) Paper feed motor (LF motor) replacement
Removal
1.
Remove the printing mechanism (Section 4.9.1 (5)).
2.
Remove the motor cable from the cable clamp.
3.
Remove the two screws to remove the paper feed motor.
Installation
Install the paper feed motor in reverse order of removal.
Note:
Check that paper feed motor gears are engaged.
Put the motor cable along the side frame and hold it by the cable clamps so that it cannot obstruct the bottom
feed slot path.

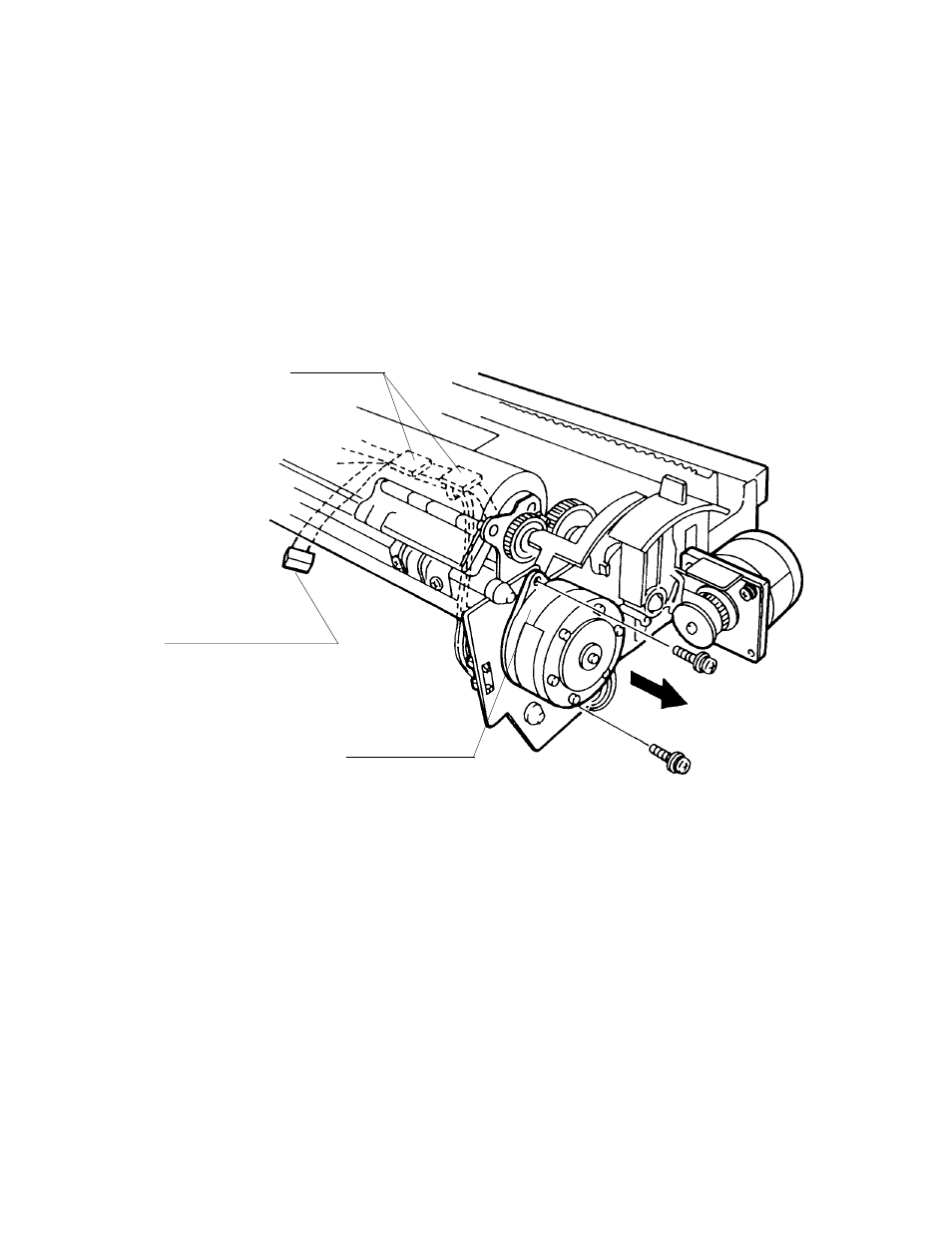

Cable clamp
Paper feed motor cable
Paper feed motor
