Cluster configuration

A disk that is registered as a cluster resource cannot be used for a Shadow Copy destination disk. A
Shadow Copy destination disk must be provided for an active production server and a standby
production server.

1.3.1.2

Transportable Copy Configuration

The Windows OS of the production server and the backup server is the same version and level.

Compatible versions of VSSHP are installed in both the production server and backup server.
For details about compatibility, refer to

"1.4 Supported Environment" (page 24)

.

A requester that supports VSS is installed in both the production server and backup server.

A writer that supports VSS is installed in the production server.

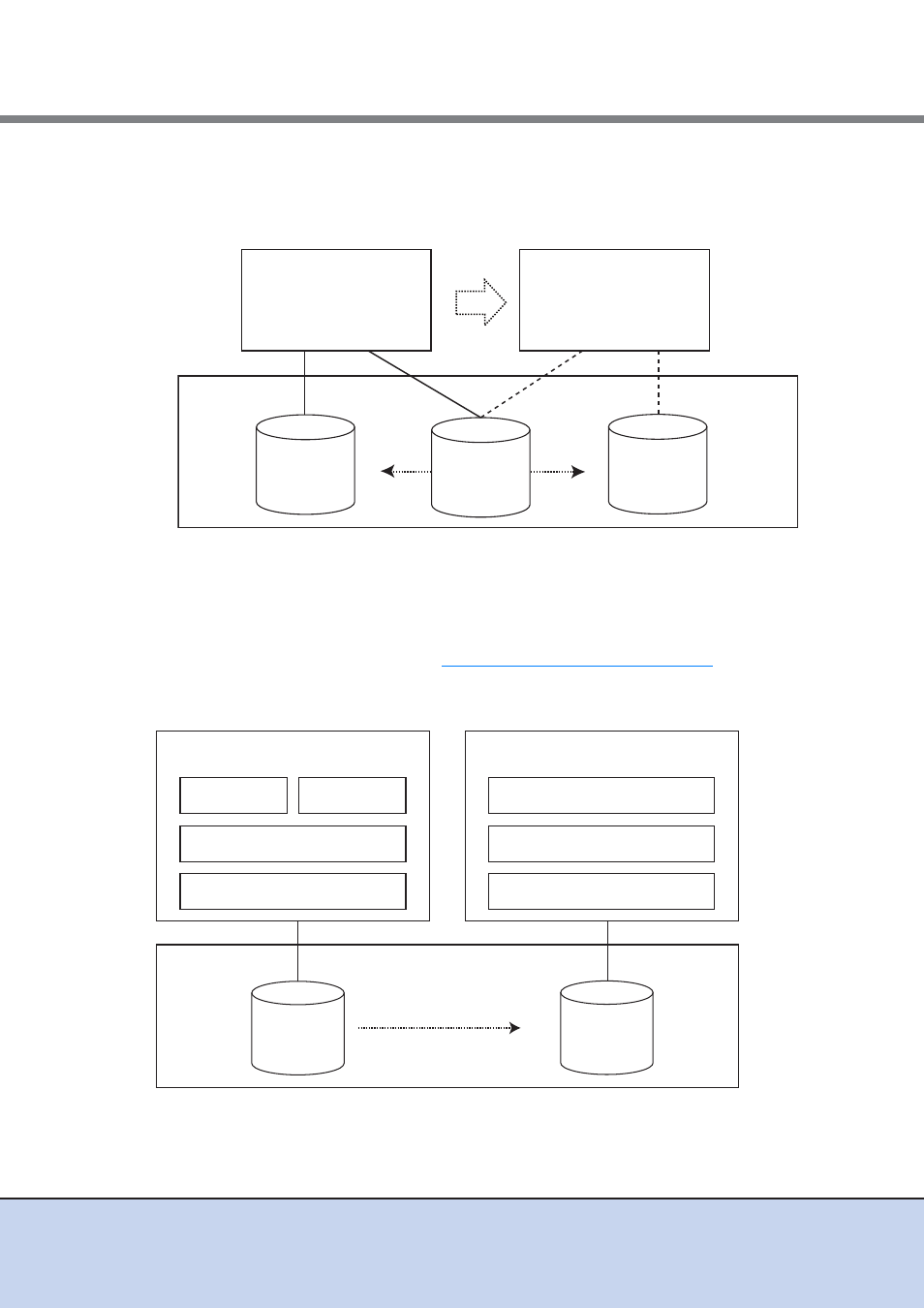

Shadow Copy

Destination

Shadow Copy

Destination

Source

Disk

Windows Server

(active production

server)

Windows Server

(standby production

server)

ETERNUS Disk
storage systems

Windows Server (production server)

Requester

Writer

Volume Shadow Copy Service

ETERNUS VSS Hardware Provider

ETERNUS Disk
storage systems

Shadow Copy

Destination

Source

Disk

Windows Server (backup server)

Requester

Volume Shadow Copy Service

ETERNUS VSS Hardware Provider
