66 Operating Manual RX600 S6
Starting up and operation
©
c
og
ni
ta
s.
Ges
el
ls
ch
ft f
ü r T
e ch
ni
k-
D
ok
um
e
nt
a tio
n m
bH
201
1
P
fad:
C:
\P
rog
ra
m
m
e\
F
C
T
\ti
m
_a
pp
\ti
m
_l
o
ca
l\w
or
k\
P
ICH
OL
\O
B
J_
D
OK
U
-1
1 93
9-
00
1.
fm
5.1.2.3 Indicators on the connector panel (LAN indicators)

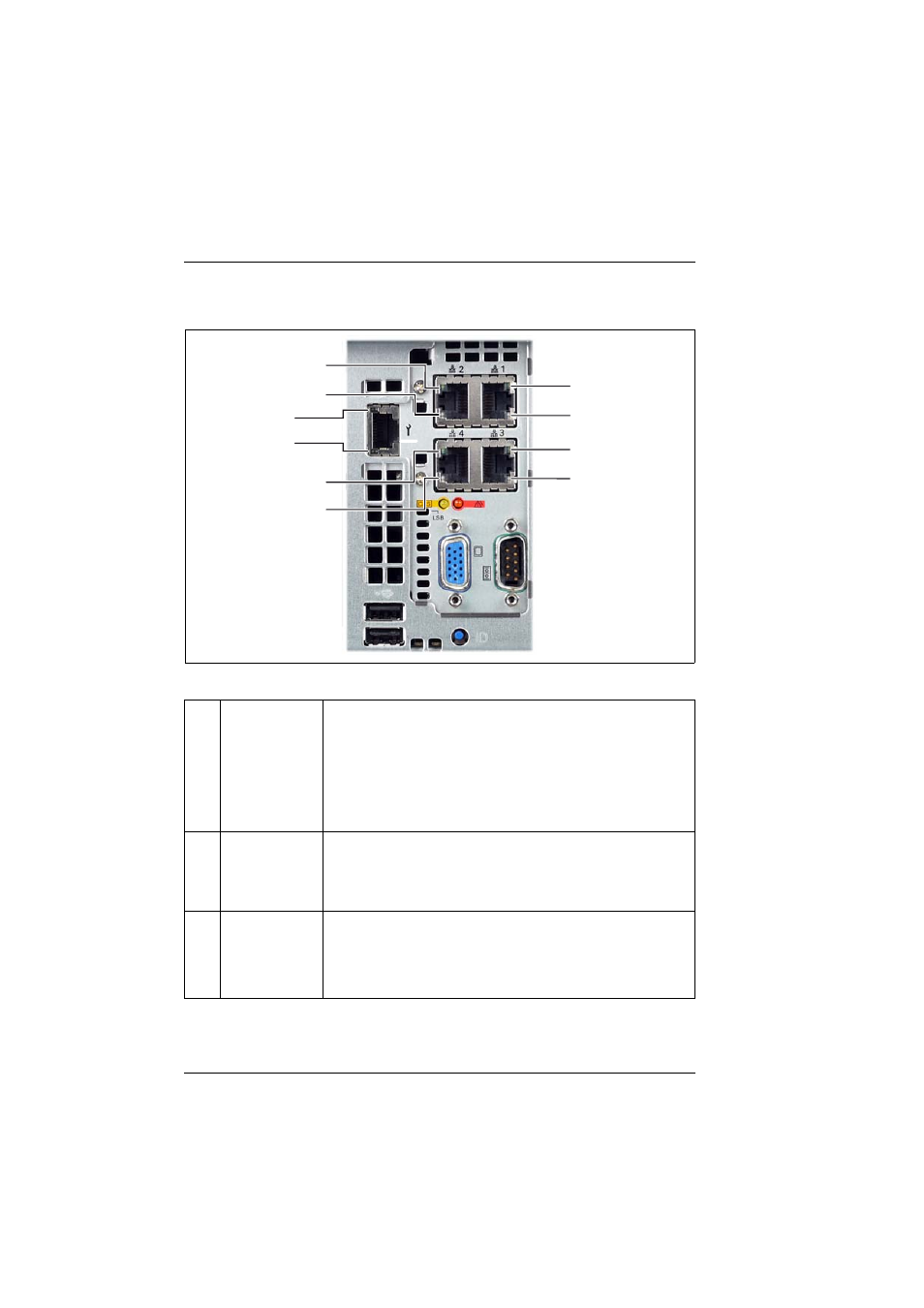

Figure 12: LAN indicators
1 LAN speed
(system LAN/
shared LAN) Steady yellow signal in the event of a LAN transfer rate
of 1 Gbit/s.
Steady green signal in the event of a LAN transfer rate
of 100 Mbit/s.
Remains dark in the event of a LAN transfer rate of
10 Mbit/s.
2 LAN
link/transfer
(system LAN/
shared LAN) Steady green signal when a LAN connection exists.
Remains dark when no LAN connection exists.
Flashes green when LAN transfer takes place.
3 LAN speed
(management
LAN) Steady green signal in the event of a LAN transfer rate
of 100 Mbit/s.
Remains dark in the event of a LAN transfer rate of
10 Mbit/s.
