Ê Carefully press the memory board into its slot (see figure 33 on page 114 ).
Ê Press both handles downwards (2) so that both green release tabs engage.
Ê Press the ATTN button.
Ê Wait until the ATTN LED is turned off.
Ê Close the server as described in "Closing the server" on page 127 .
8.1.5.6 Adding a memory board
To add memory boards during operation, proceed as follows:
Ê
Open the server (see "Opening the server" on page 125 ).
Ê
Remove the air baffle of the respective memory board slot.

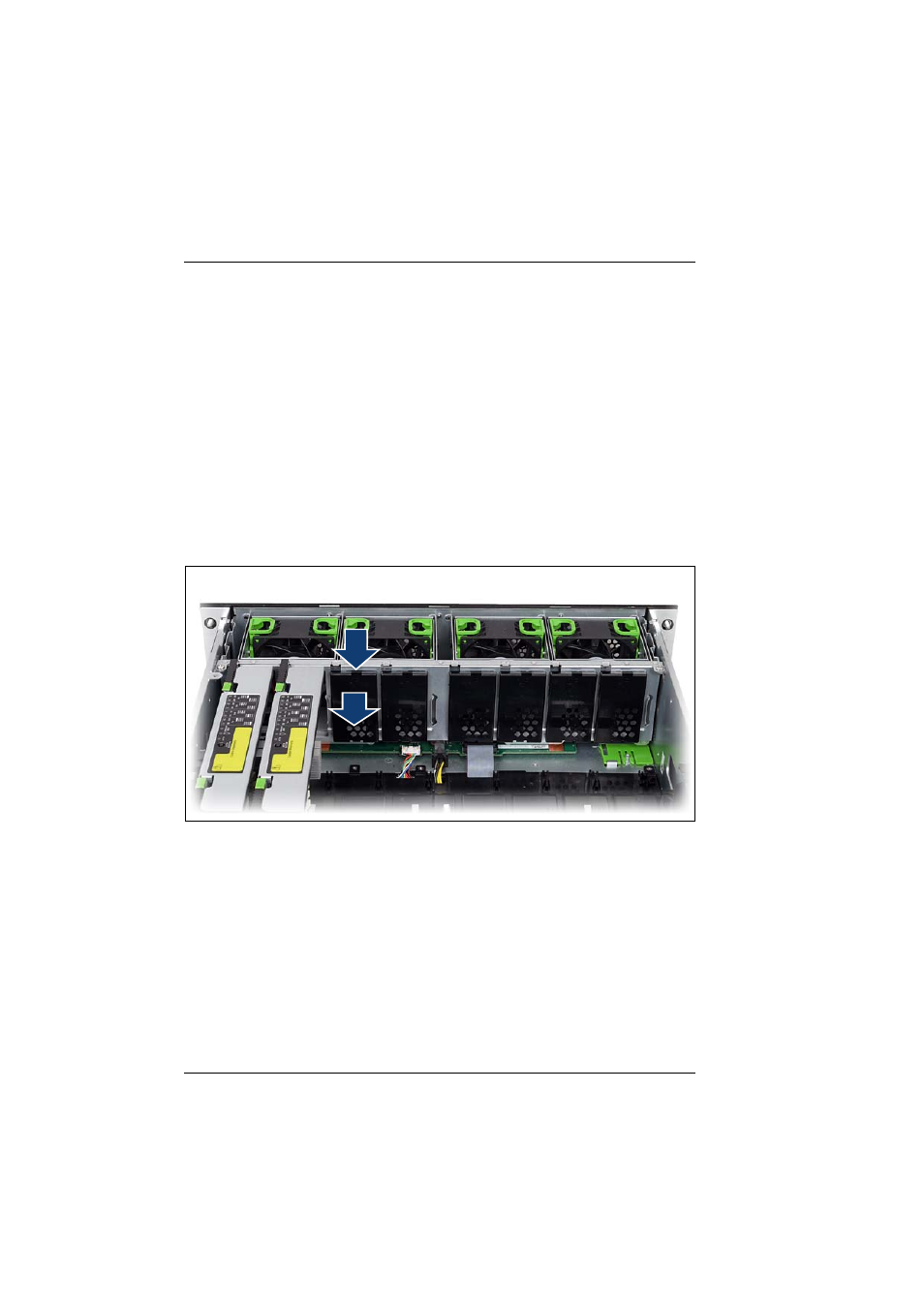

Figure 33: Removing the memory air baffle to add a memory board
Ê Press on the top of the memory air baffle (1), move it in the direction of the
arrow (2) and out of the housing.
I
Keep the memory air baffle for future use.
Ê Install the equipped memory board into the respective slot.
I
Memory boards that you insert must suit the fitting rules and the
appropriate configuration. See the "System Board D3141 for
PRIMERGY RX600 S6 Technical Manual" for details.
/
0
