8.1.5.1 Identifying the defective memory
The faulty memory module can be identified from the corresponding DIMM Fault
LED on the respective memory board (see
figure 28 ) when the server is open.
Ê
Open the server (see "Opening the server" on page 125 ).

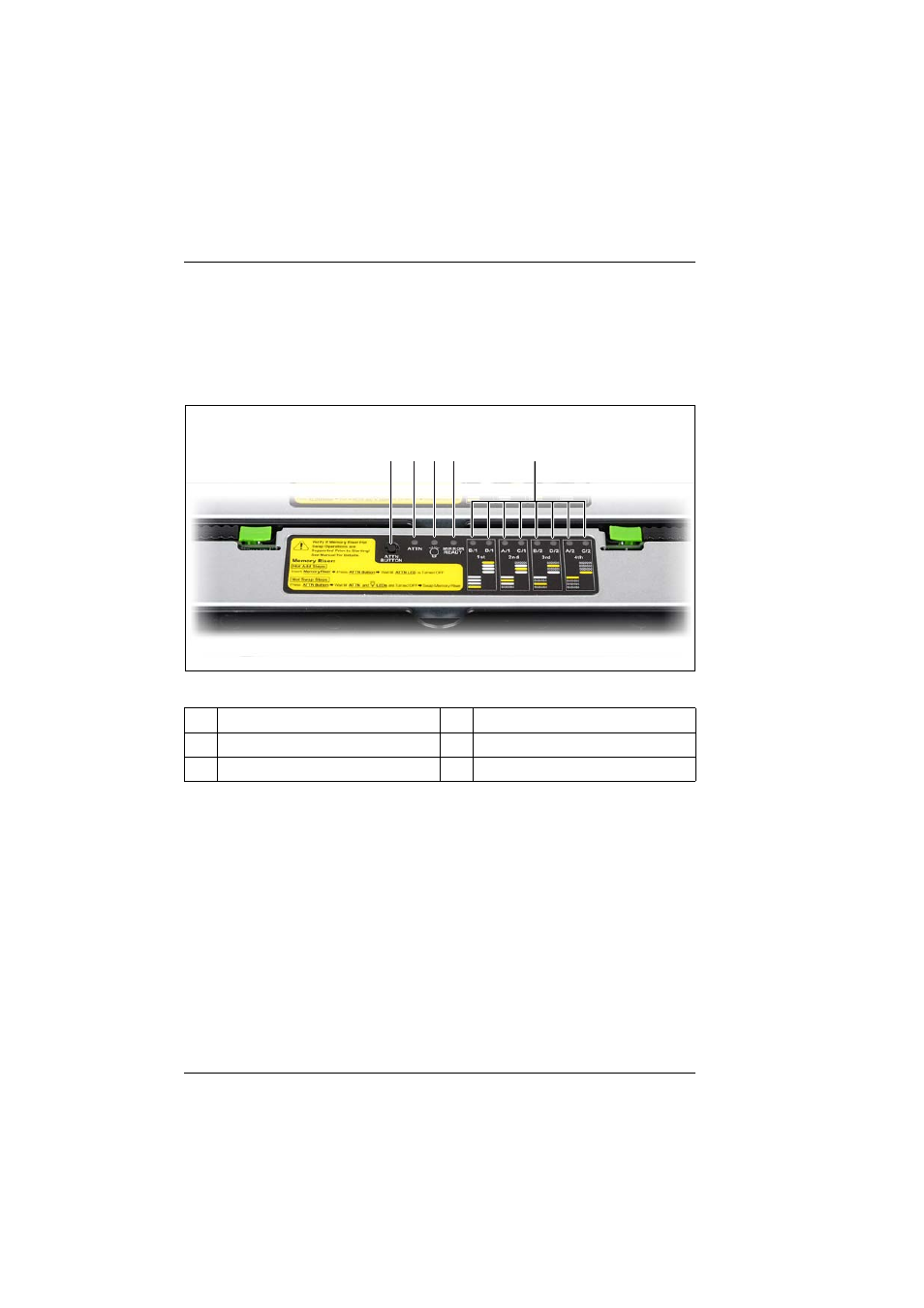

Figure 28: Button and indicators on memory board
Ê Use the DIMM Fault LEDs (5) to identify the faulty memory module.
The respective DIMM Fault LED lights up orange and indicates the slot on
the memory board that is occupied by the faulty memory module.
Ê
Make a note of which LED (e.g. "1B“) on which memory board is lit orange.
Ê Press the ATTN button (1) .
Ê Wait until ATTN LED (2) and Power LED (3) are turned off.
Ê Remove the memory board as described in "Removing the memory board
in question" on page 111
1 ATTN button 4 Mirror LED (green)
2 ATTN LED (orange) 5 8x DIMM Fault LED (orange)
3 Power LED (green)
