3. PLOTTER OPERATION

3-3

3.1.2 Compass

display

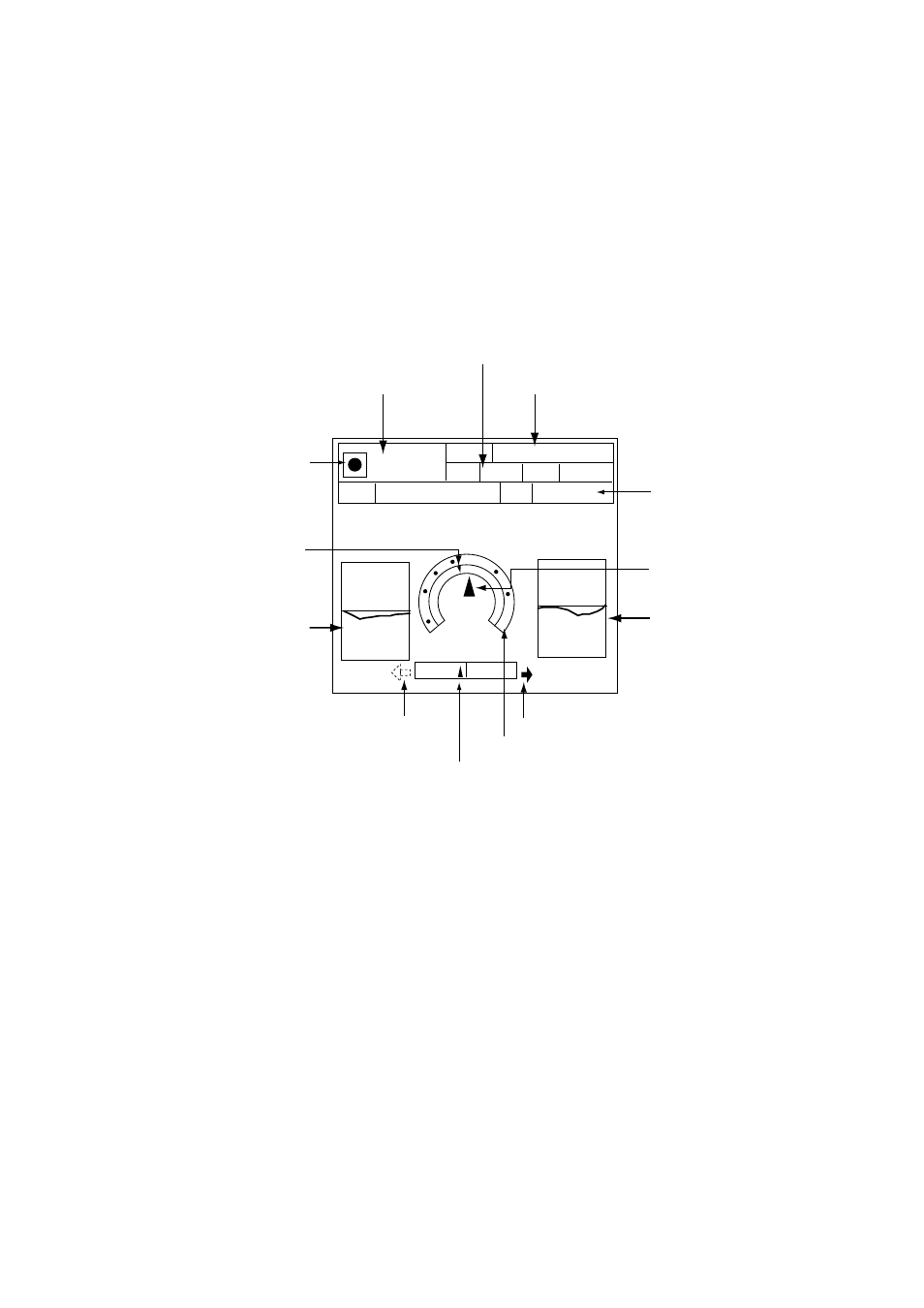

The compass display, shown in combination displays, provides steering
information. The compass rose shows two triangles: the solid triangle shows
own ship’s course and the hollow triangle, which moves with course change,
shows the bearing to destination waypoint.

The water temperature and depth graphs, which require appropriate sensors,
show the latest 10 minutes of water temperature and depth data. The range of
the depth graph is 50 feet and it is automatically adjusted with depth.

0

50

20

10

BRG

DPT

TMP

3 5 9 . 9

°

M

4 5 . 2 f t

1 6 . 2

°

F

003WPT

0D 9H 59M

TTG

23th23:59

ETA

SOG 10.0

kt

10.0

kt

STW

RNG 9 9 . 9 n m

3 5 9 . 9

°

M

N

w

E

Ship's course

Bearing scale

XTE monitor
(Direction off course;
direction to steer)

Depth
graph*

Water
temperature
graph*

TO Waypoint

Time-to-go
to destination

Range to waypoint

Speed

* = Requires appropriate
sensor.

Estimated time of
arrival at destination

CSE

Waypoint
bearing

Direction to steer

Shown when
direction to
steer is "left."

Compass display
