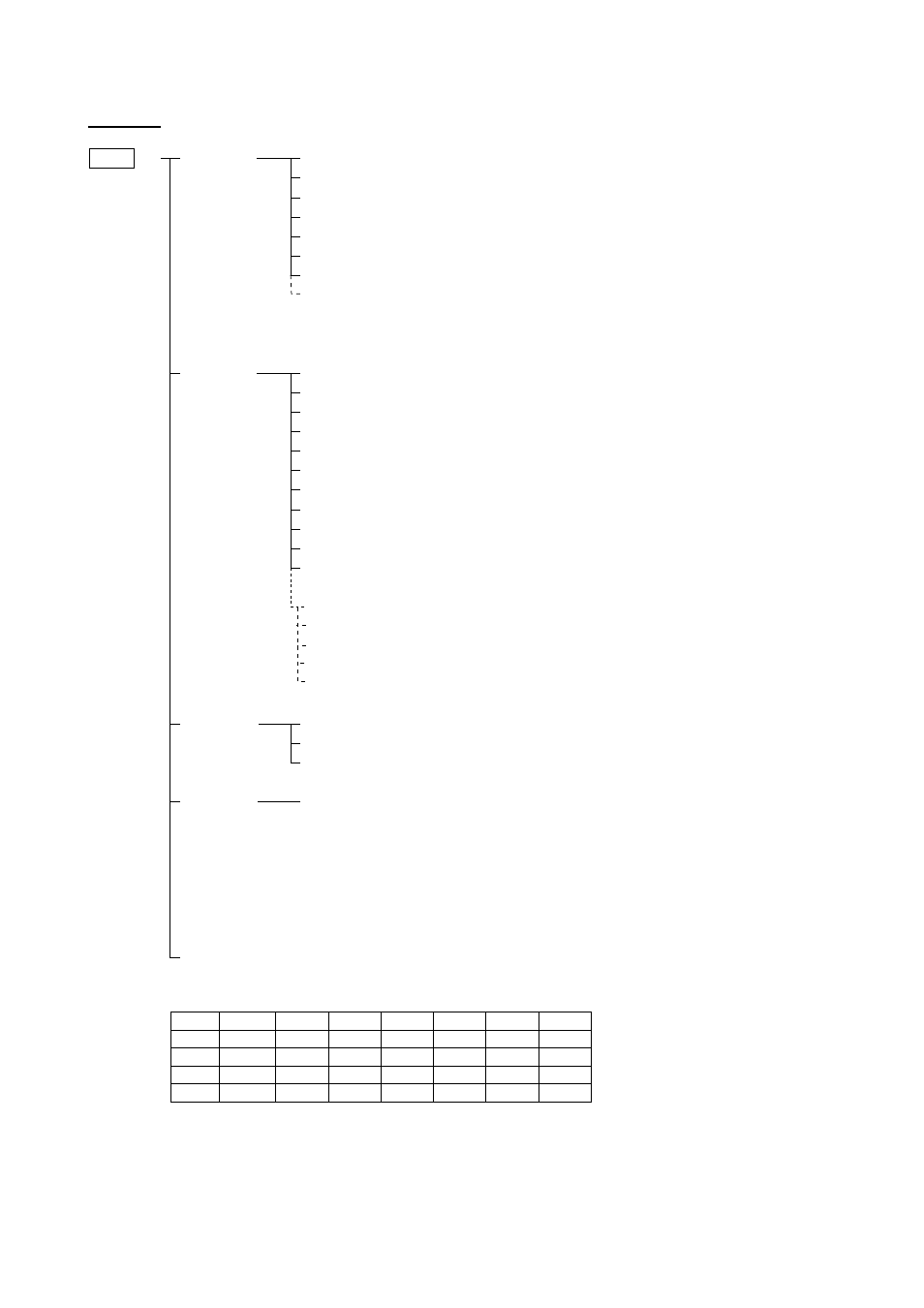

APPENDIX
A-8
Sounder
MENU Key NOISE LIMITER (OFF, LOW, MEDIUM, HIGH)
CLUTTER (0-16, AUTO)
ZOOM MARKER (ON, OFF)
SIGNAL LEVEL (OFF, SL1, SL2, SL3)
PICTURE ADVANCE (2/1, 1/1, 1/2, 1/4, 1/8, 1/16, STOP)
TEMPERATURE GRAPH (ON, OFF)
SPD SENSING PIC ADV (ON, OFF)
D. BOX soft key (Same items as on plotter menu. See page A-2.)
FISH ALARM LEVEL (HIGH, MEDIUM, LOW)
TRANSMISSION (ON, OFF)
TVG 200 kHz (0 - 9, 3)
TVG 50 kHz (0 - 9, 3)
ECHO OFFSET 200 kHz (-50 - +50, 0)
ECHO OFFSET 50 kHz (-50 - +50, 0)
BOTTOM LEVEL 200 kHz (-100 - +100, 0)
BOTTOM LEVEL 50 kHz (-100 - +100, 0)
KP PULSE (INTERNAL, EXTERNAL)
SMOOTHING (OFF, SM1, SM2, SM3, SM4)
TLL OUTPUT (ON, OFF)
SENSOR SETUP soft key
SPEED CALIBRATION (-50 - +50%, 0%)
TEMP. CALIBRATION (-40
° F - +40 ° F, 0 °
F)
DEPTH CALIBRATION ( -15 - +90 ft, 0 ft)
ACSTC SPD CALIBRATION (-500 - +500m/s, 0 m/s)
SOUNDER
MENU
SOUNDER
SYSTEM
SETUP
RANGE 1 - RANGE 8*
ZOOM RANGE (2-120 m, 10 m; 7-400 ft, 30 ft; 1-60 fa, 10 fa; 1-70 P/B, 10 P/B)
BOTTOM LOCK RANGE (3 m, 6 m; 10 ft, 20 ft; 2 fa, 3 fa; 2 P/B, 3 P/B) SOUNDER
RANGE
SETUP
SOFT KEY 1- SOFT KEY 5
(OFF, AUTO MODE, GAIN 200 kHz, GAIN 50 kHz, SHIFT, NOISE LIMITER,
CLUTTER, WHITE MARKER, HUE, SIGNAL LEVEL, PICTURE ADV,
TEMP. GRAPH, TVG 200 kHz, TVG 50 kHz, OFFSET 200K, OFFSET 50K,
SMOOTHING, ZOOM RANGE, B/L RANGE, TLL OUTPUT, SNDR
SOURCE, D. BOX ON/OFF, CHANGE CNTRL)
(Assign function of echo sounder function key.) FUNCTION
KEY SETUP#
SYSTEM CONFIGURATION (Same items as on page A-2.)
Range 1 Range 2 Range 3Range 4 Range 5 Range 6 Range 7 Range 8
5 m 10 m 20 m 40 m 80 m 150 m 300 m 1200 m
15 ft 30 ft 60 ft 120 ft 200 ft 400 ft 1000 ft 4000 ft
3 fa 5 fa 10 fa 20 fa 40 fa 80 fa 150 fa 650 fa
3 P/B 5 P/B 10 P/B 30 P/B 50 P/B 100 P/B 200 P/B 700 P/B
* = Default sounder ranges
# Default settings for function keys:
SOFT KEY 1, TLL OUTPUT; SOFT KEY 2, CLUTTER; SOFT KEY 3, SIGNAL LEVEL:
SOFT KEY 4, NOISE LEVEL, SOFT KEY 5, PICTURE ADV
