4. VIDEO SOUNDER OPERATION


4-3

4.2.2

Description of sounder displays

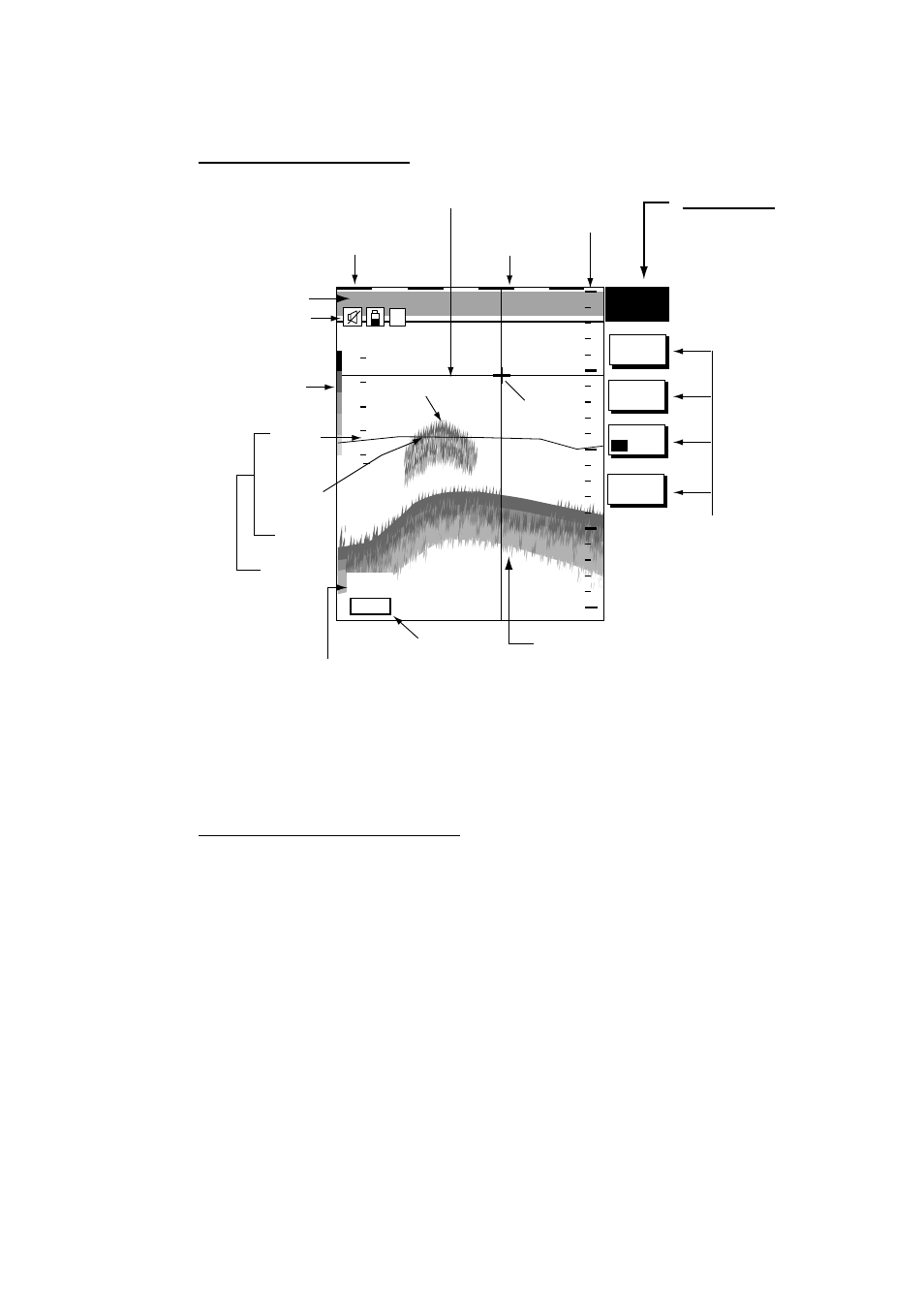

Single-frequency display

Echo strength
bar

Soft keys

Variable Range Marker

Depth scale

Tx frequency

Depth

Temp.
scale

Water
temp.
graph

Water
temp.
display

114

52

Minute marker

Icons (alarm,
battery,
simulation)

Bottom echo

Zero line

Fish
echo

50k

SHIFT

AUTO/
D. BOX

DISPLY
MODE

FREQ

50

/200

30

50

°

F

40

SOUNDER
SINGLE

0

50

100

150

200

Cross-hair
cursor

0'30"

Time

Display mode
SOUNDER DUAL
SOUNDER SINGLE
SOUNDER M. ZOOM
SOUNDER B. ZOOM
SOUNDER B/L
SOUNDER B/D

S

I

M

Indications on the single frequency display

Note:

The water temperature display requires an appropriate water temperature

sensor. It can be turned on or off with TEMPERATURE GRAPH on the
SOUNDER menu.


Selecting transmission frequency

The single frequency display shows either the 50 kHz picture or 200 kHz picture.
To select transmission frequency, press the FREQ 50/200 soft key. “50” or “200”
is highlighted on its key label with each press of the key.
