1. OPERATIONAL OVERVIEW


1-11

1.5.2

Selecting a display

1. Press the [DISP] key to show the display selection window. The icons of

modes not available are marked with an “X.” PAGE1-PAGE5 are
user-arrangeable displays called “hot pages,” which can you configure as you
like. For further details, see the paragraph “5.6 Hot Page Setup.”

PAGE1

PAGE2

PAGE3

PAGE4

PAGE5

RADAR

PLOT

SNDR

NAV

· TURN KNOB TO SELECT MODE
AND PUSH KNOB TO ENTER.
· PUSH ANY SOFT KEY TO
SELECT IMAGE SOURCE.

Basic display
screens

Hot pages

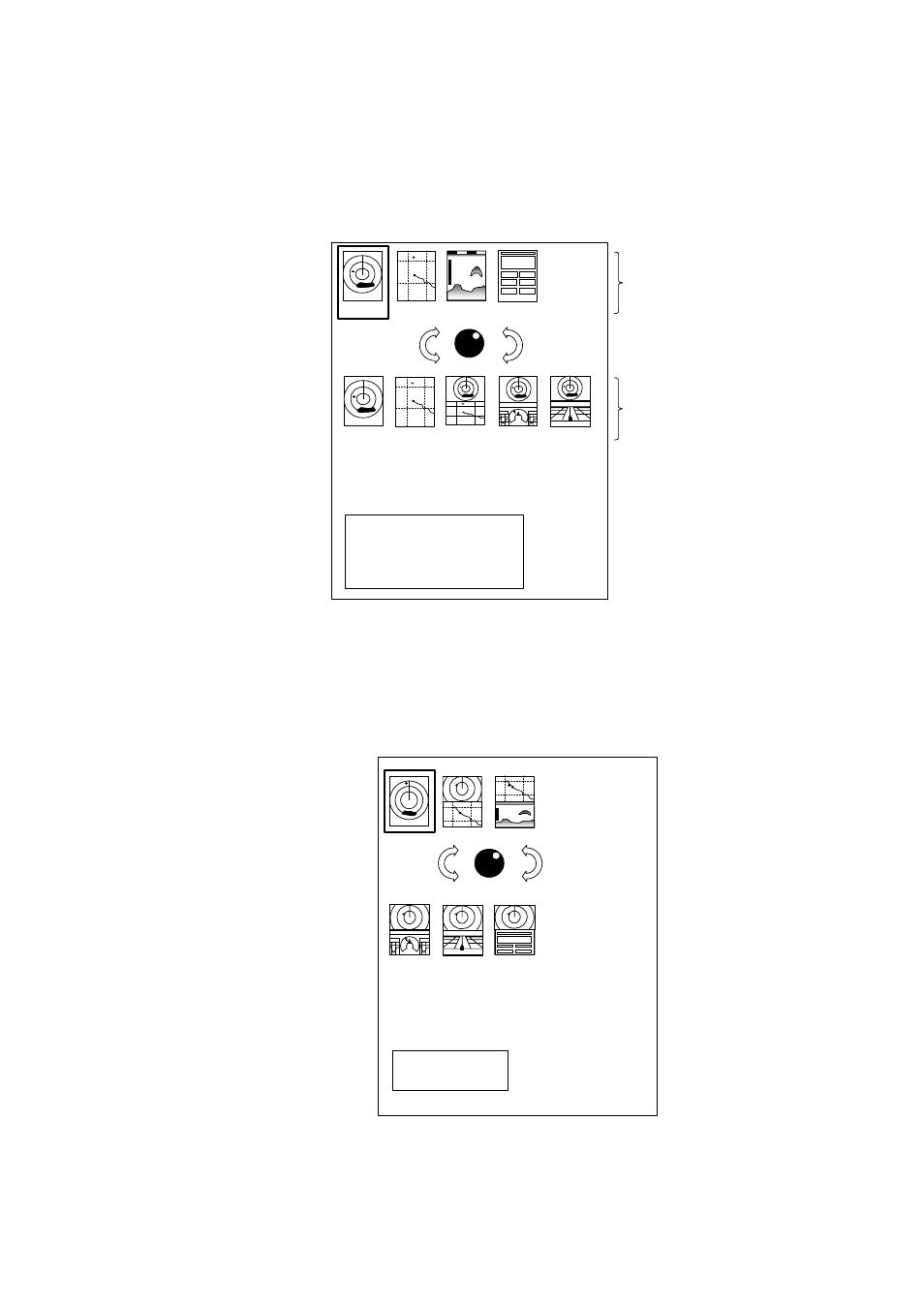

Display screen selection window

2. Rotate the [ENTER] knob to select a basic display screen or a hot page

screen.

3. If you selected a basic display screen, a group of appropriate combination

displays appear. Below are the combination screens available with the radar
display.

PUSH ENTER KNOB.

Radar combination screen selection window.

4. Rotate the [ENTER] knob to select display desired.
5. Push the [ENTER] knob to finish.
