2. RADAR OPERATION

2-42

2.26.7

ARP, TTM target data

You can show motion trends (range, bearing, course, speed, CPA and TCPA) for
ARP or TTM targets. Note that TARGET ID NUMBER, in the ARP SETUP menu,
must be turned on to display this data.

1. Place the cursor on the target whose data you want to see.
2. If not already displayed, press the [HIDE/SHOW] key to show the radar soft

keys.

3. Press the TARGET and TARGET INFO soft keys. The data of the selected

target appears at the bottom left-hand corner of the display. (If an EBL/VRM
data box is displayed ARP data will be under it.)

4. Press the RETURN soft key to finish.
5. To erase the ARP/TTM data box, select the corresponding target with the

cursor, then press the [CLEAR] key.

.250/ 319.9

°

T

.125nm
SP

H-UP

359.9

°

R

0.277nm

TARGET

TRAIL

TLL
OUTPUT

ACQ

TGT
INFO

RETURN

ARP
Target

No.01 VECTOR TRUE 15min
CSE 359.9

°

T SPD 12.5kt

CPA 2.21nm TCPA 12:35

CPA and TCPA

Course and Speed

Target No., Vector Reference (True), Vector Time

01

Cursor

+

+

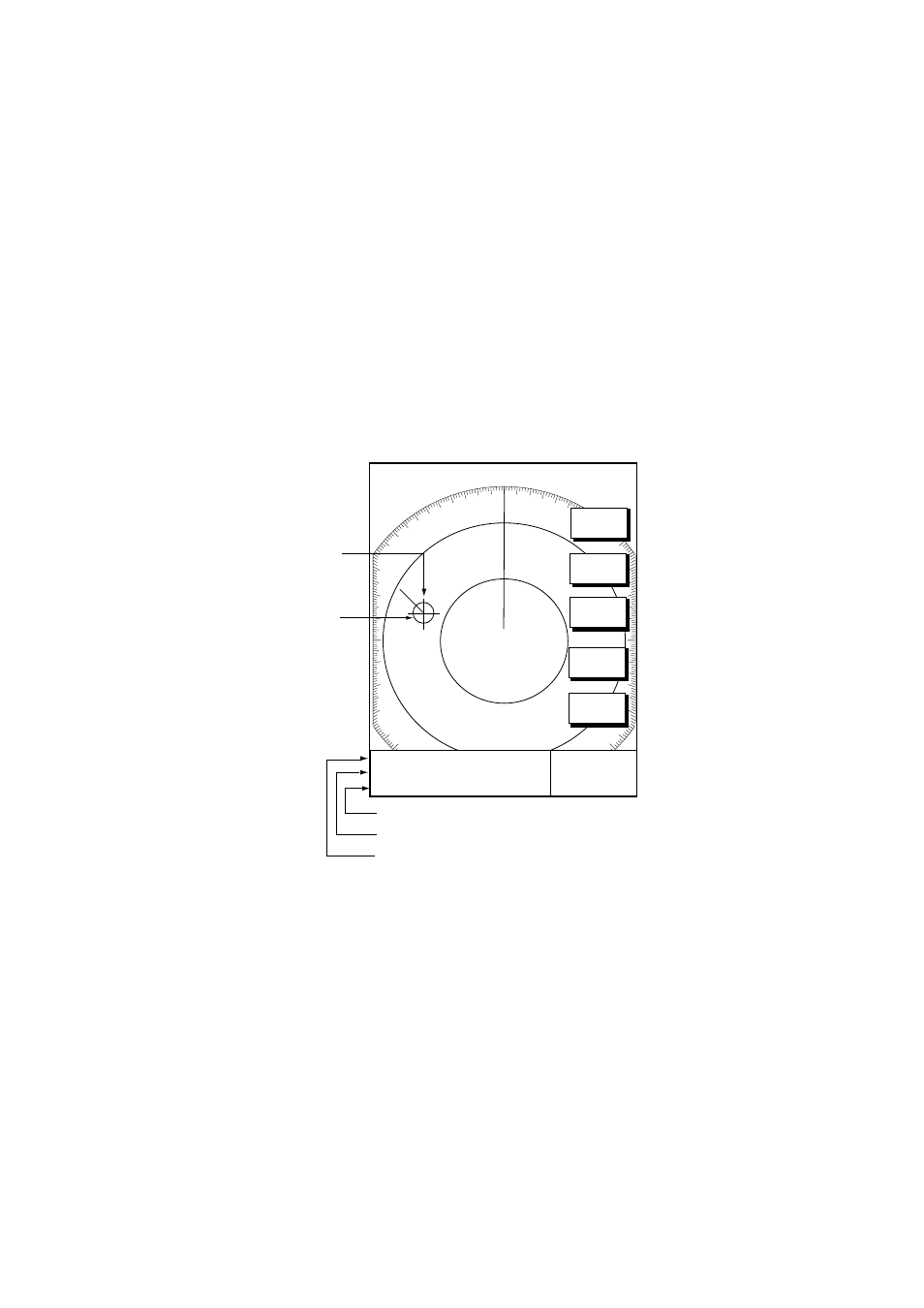

ARP target data
