FUJITSU 500 - Manual (Page 77)

67

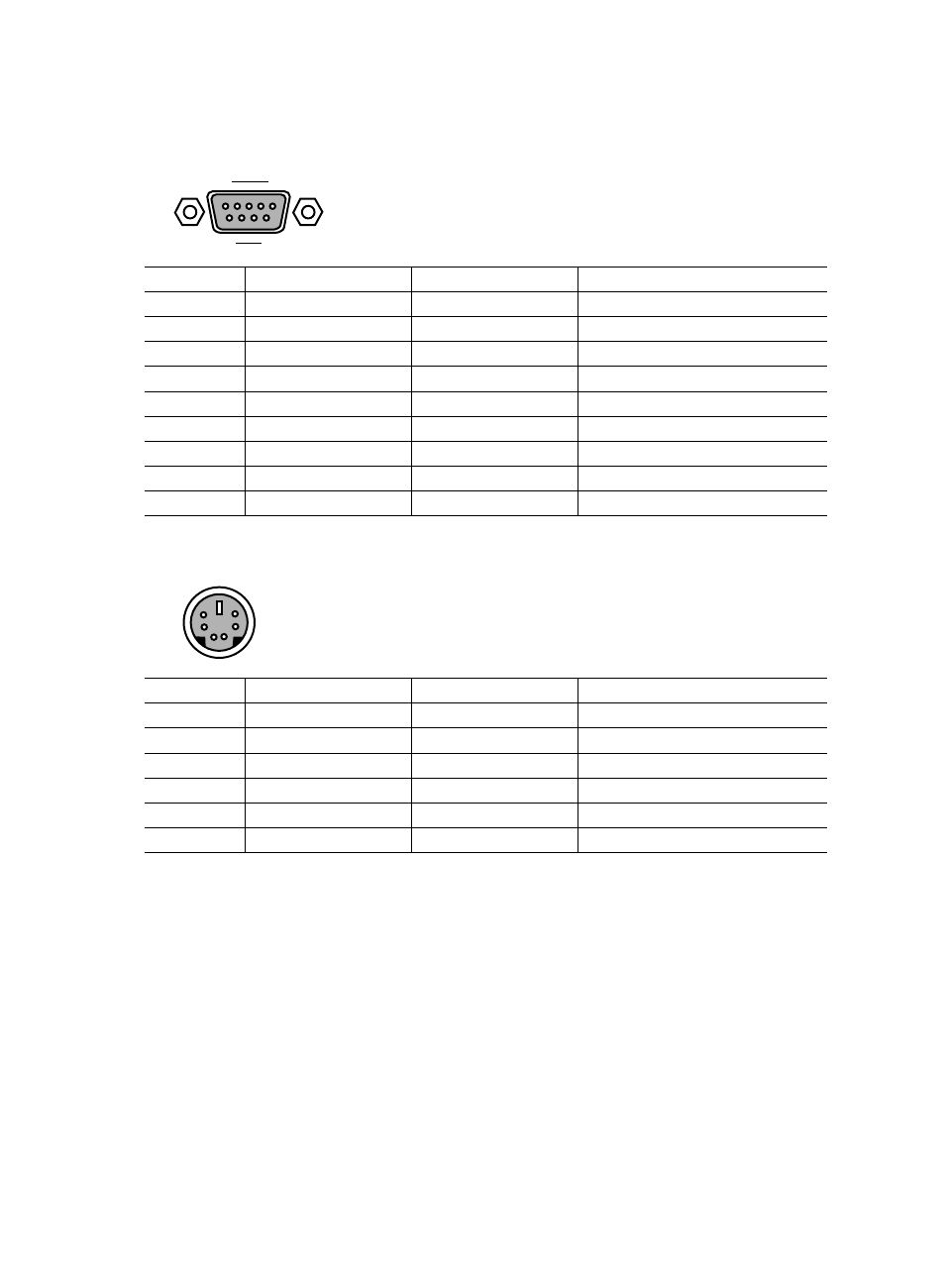

Serial connector
Pin No. Signal name I/O Description
1 CD Input Carrier detect
2 RD Input Receive data
3 TD Output Send data
4 DTR Output Data terminal ready
5 GND — Ground
6 DSR Input Data set ready
7 RTS Output Request to send
8 CTS Input Clear to send
9 RI Input Ring indicate
1 5
6 9
Mouse connector
Pin No. Signal name I/O Description
1 DATA I/O Data
2 NC — Not connected
3 GND — Ground
4 VCC — Power
5 CLK I/O Clock
6 NC — Not connected
6
4
2
5
3
1
