18

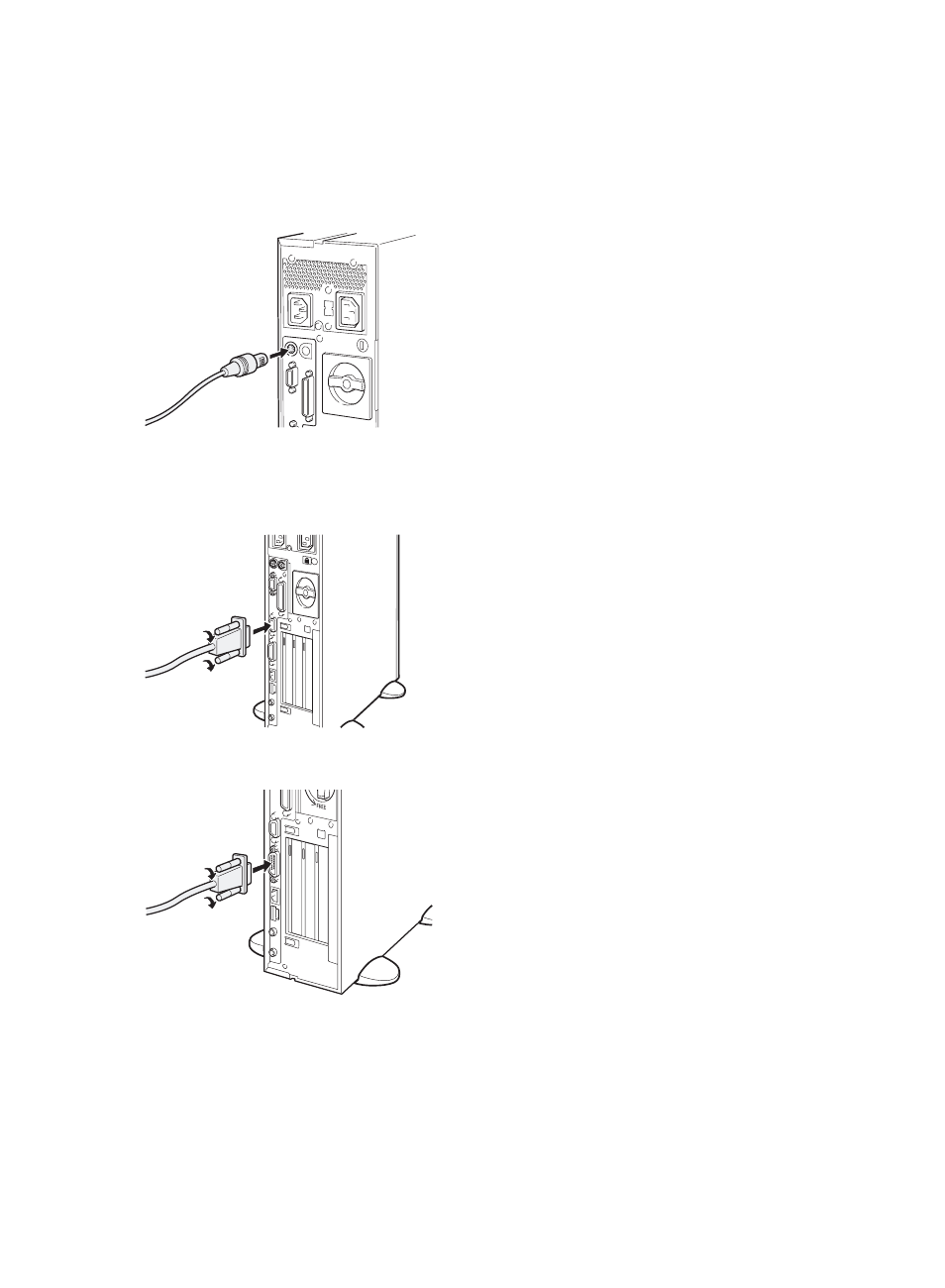

4 Connect the keyboard.
With the mark on the connector of the keyboard cable facing right, plug the connector into the
keyboard terminal on the back of the PC unit, labeled with a keyboard symbol of the same color
as the keyboard connector.
5 Connect the display cable to the PC unit.
Connect the display cable connector to the display connector on the back of the PC unit and tighten
the cable connector screws.
• Connecting to the CRT connector
• Connecting to the DVI connector
* For connection, see “Cautions on using a digital display.”
6 Connect the LAN cable.
Connect the connector on one end of the twisted pair cable (to be purchased separately) to a
network connector such as a hub unit.
7 Connect the LAN cable to the network.
Connect the connector on the other end of the twisted pair cable to the LAN connector on the
back of the PC unit.
