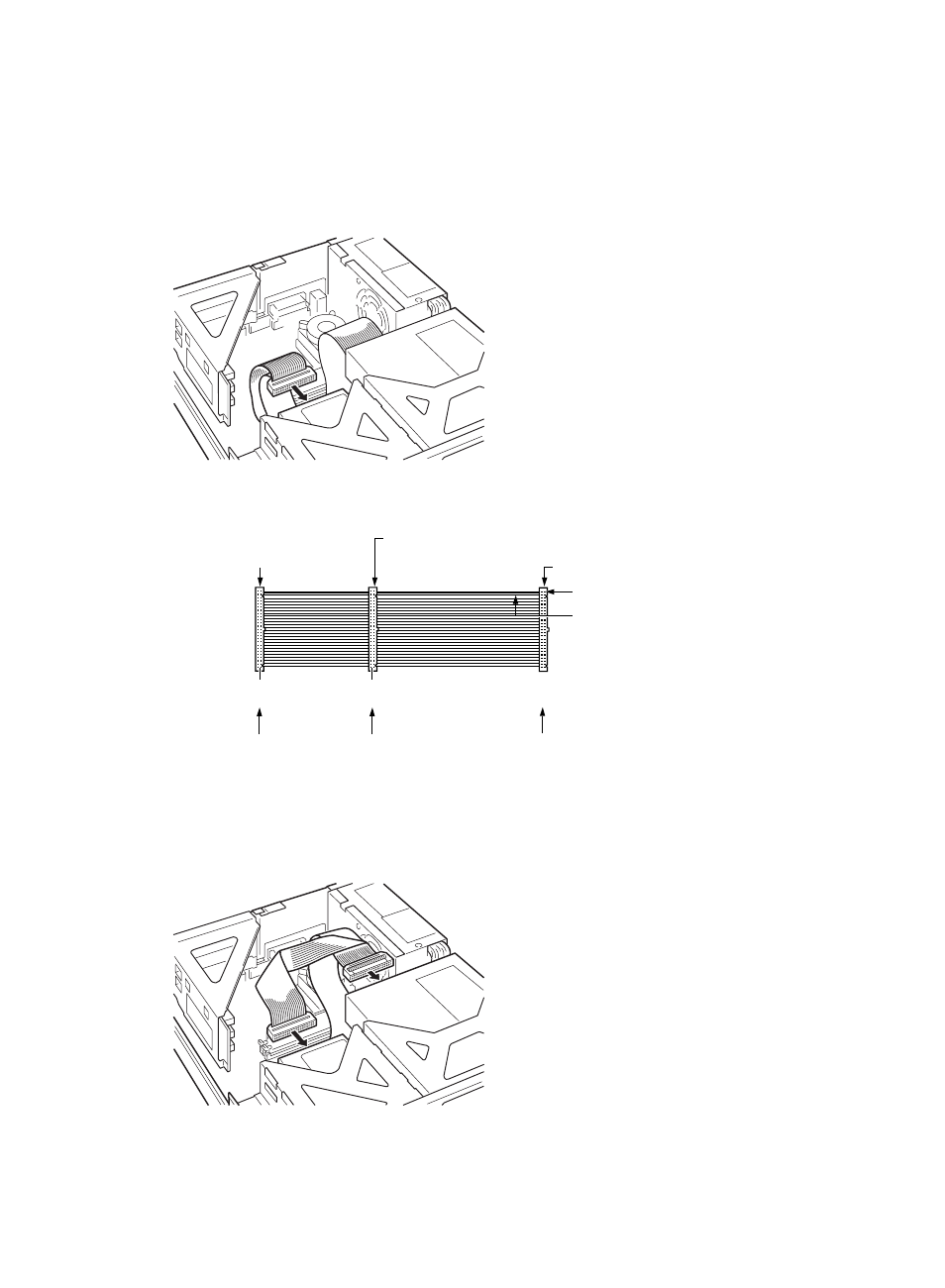

9 Connect the flat cable.
Connect the flat cable properly in accordance with the type of the internal option installed.
To use a hard disk drive supporting Ultra DMA/66 or Ultra DMA/100, connect it to the slave of the
primary IDE.
To install a magneto-optical disk drive or a hard disk drive other than the above, disconnect the
master secondary cable from the CD-ROM drive and connect it to the magneto-optical disk drive
or hard disk drive.
Connect the CD-ROM drive to the slave of the secondary IDE.
Connect the option here to
configure it as the master.
Connect the option here to
configure it as a slave.
To the motherboard
Pin 1
Blue or red line
MASTER SLAVE
Black Gray Blue
