64
Sound specifications
Sound controller Built-in Intel 82801BA I/O Controller Hub2 + Cirrus Logic
CS4299
PCM recording/playback functions Sampling rate: 48 kHz maximum
16-bit Stereo
Simultaneous playback/recording function
*: Supports DirectX 8.0 or later.
Graphical specifications
Video controller Built-in Intel 82815 Graphics Memory Controller Hub
Display mode 1280 x 1024 maximum (1024 x 768 maximum for digital output)
Video output signal Video: analog RGB, synchronization signal: TTL-compatible
*: Supports DirectX 8.0 or later.

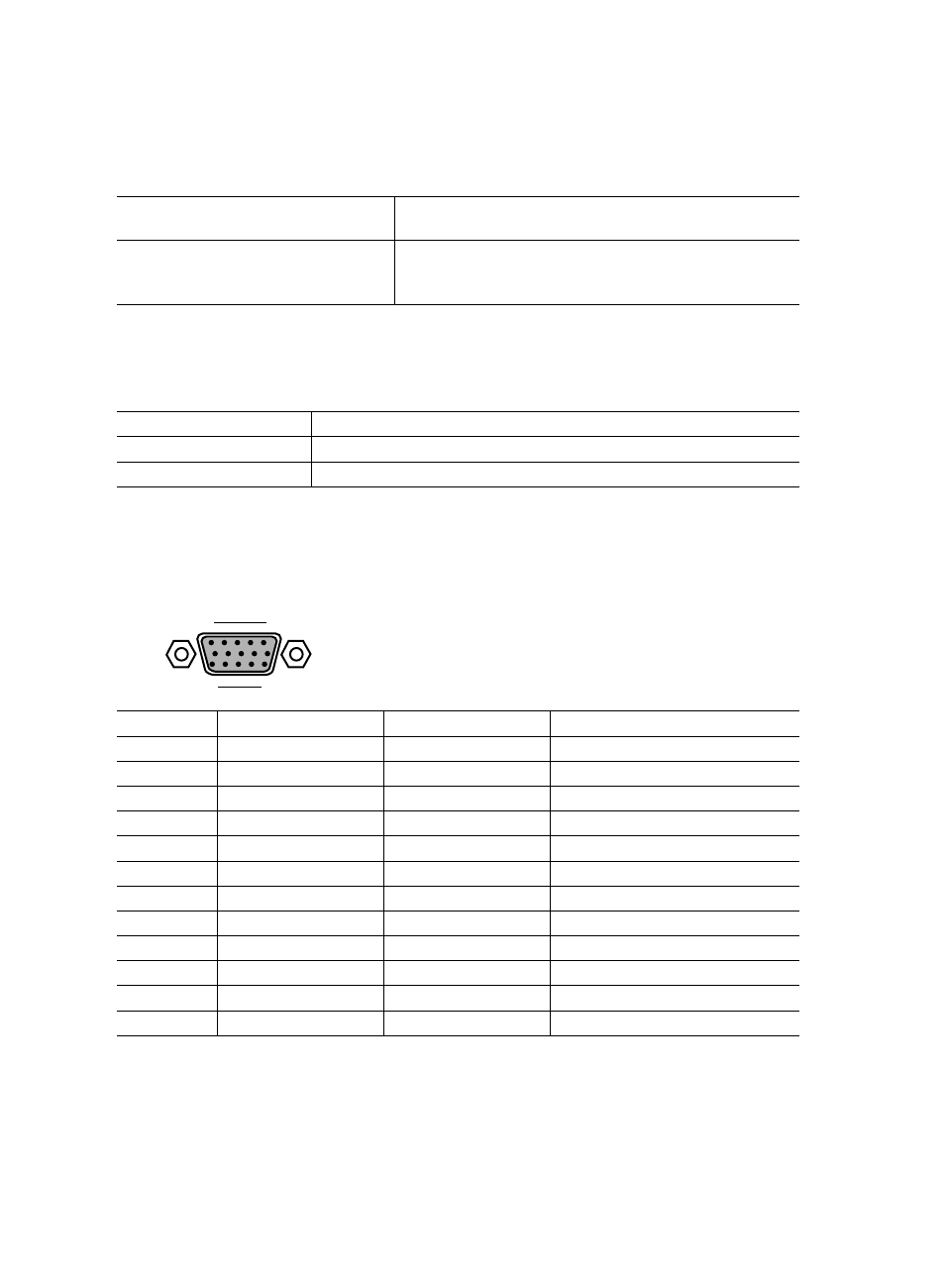

Connector specifications
The pin assignments and signal names of each connector are as below.
CRT connector
Pin No. Signal name I/O Description
1 RED Output Red output
2 GREEN Output Green output
3 BLUE Output Blue output
4 NC — Not connected
5 to 8 GND — Ground
9 +5V — +5V
10 GND — Ground
11 NC — Not connected
12 SDA I/O Data
13 HSYNC Output Horizontal synchronizing signal
14 VSYNC Output Vertical synchronizing signal
15 SCL I/O Data clock
5 1
15
10 6
11
