48

7

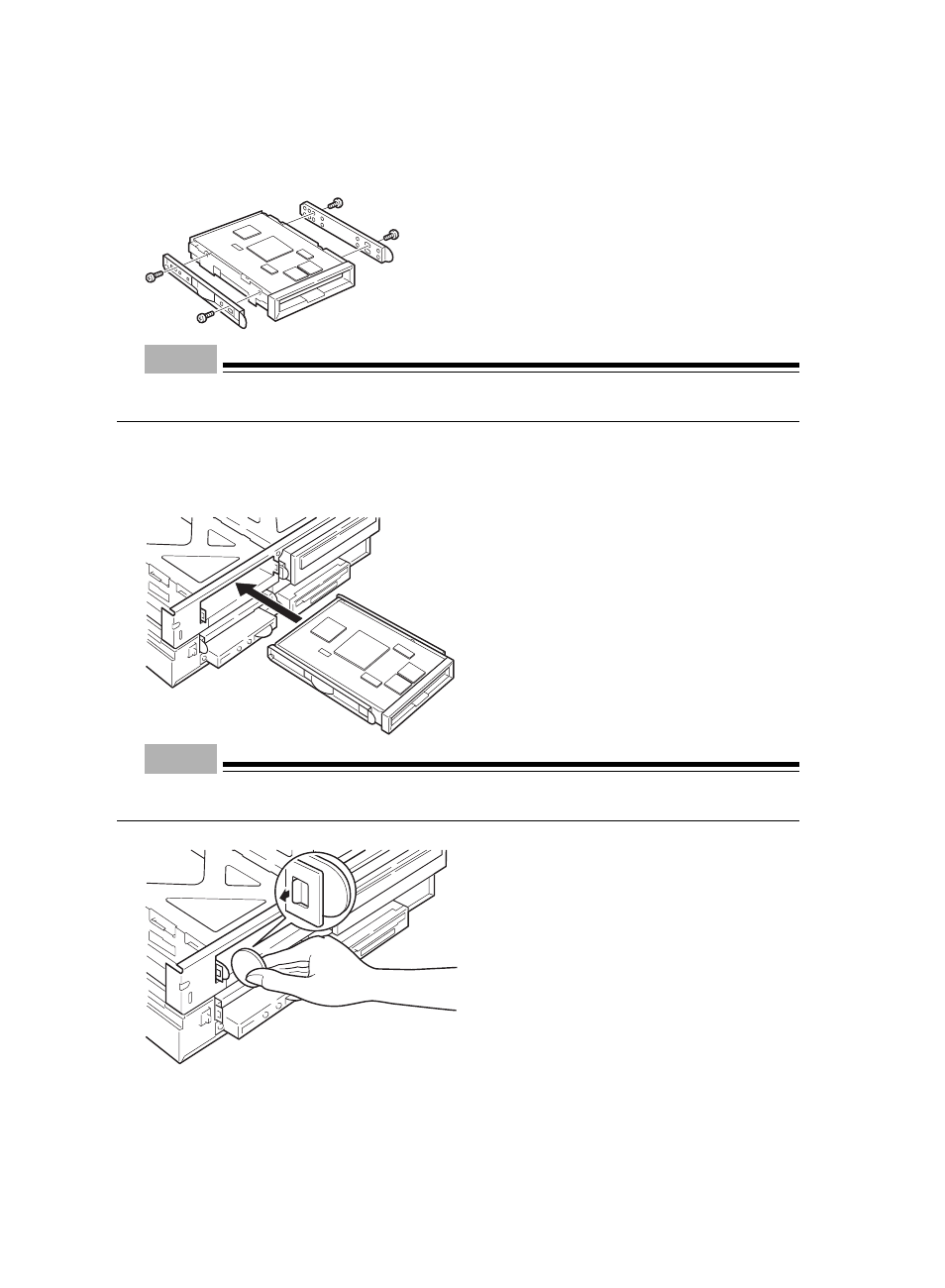

Mount the internal option on the mounting bracket.
Secure it with the four screws you have removed in step 2.

Point

• Different sets of screw holes in the mounting bracket should be used depending on the drive to

be installed. Before installation, check the drive name indicated near the screw holes.

8

Install the internal option on the PC unit.
From the front of the front access bay, slide the internal option into the PC unit. Sliding it at an
angle may scratch the internal option, resulting in a fault.

Point

• When the mounting brackets are not locked, lock them using a coin or a similar tool. Doing this

by fingers may cause injury.
