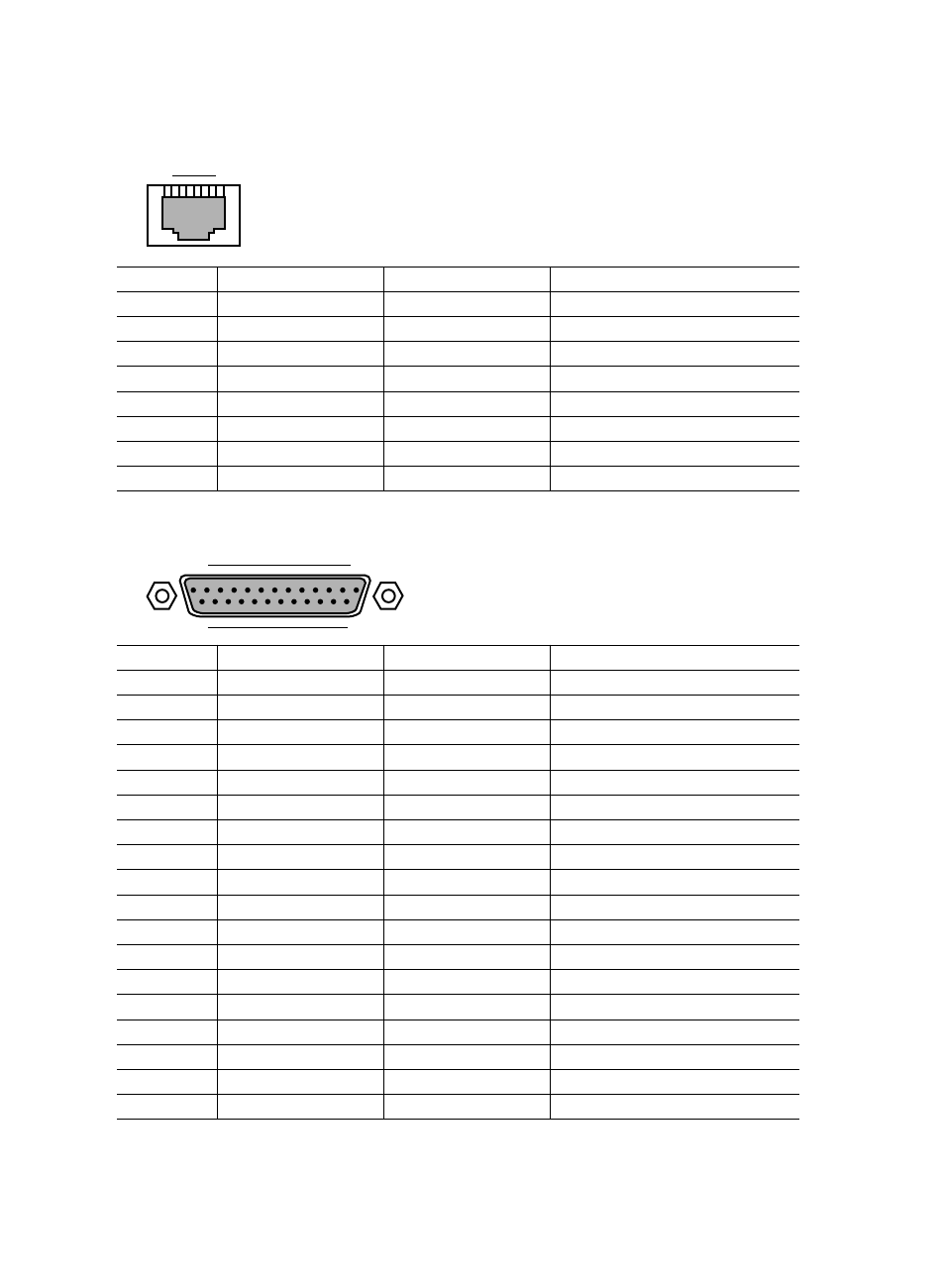

LAN connector (100BASE-TX/10BASE-T)

Pin No.

Signal name

I/O

Description

1

TD+

Output

Send data +

2

TD-

Output

Send data -

3

RD+

Input

Receive data +

4

NC

—

Not connected

5

NC

—

Not connected

6

RD-

Input

Receive data -

7

NC

—

Not connected

8

NC

—

Not connected

1

8

Parallel connector

Pin No.

Signal name

I/O

Description

1

STROBE

I/O

Strobe

2

DATA 0

I/O

Data 0

3

DATA 1

I/O

Data 1

4

DATA 2

I/O

Data 2

5

DATA 3

I/O

Data 3

6

DATA 4

I/O

Data 4

7

DATA 5

I/O

Data 5

8

DATA 6

I/O

Data 6

9

DATA 7

I/O

Data 7

10

ACK

Input

Acknowledgment

11

BUSY

Input

Busy

12

PE

Input

Paper empty

13

SELECT

Input

Select

14

AUTOFD

Output

Automatic feed

15

ERROR

Input

Error

16

INIT

Output

Initialize

17

SLCTIN

Output

Select

18 to 25

GND

—

Ground

13

1

25
