34

When mounting a peripheral device, remove the upper cover and reinforcement bracket so that the
inside can be seen.

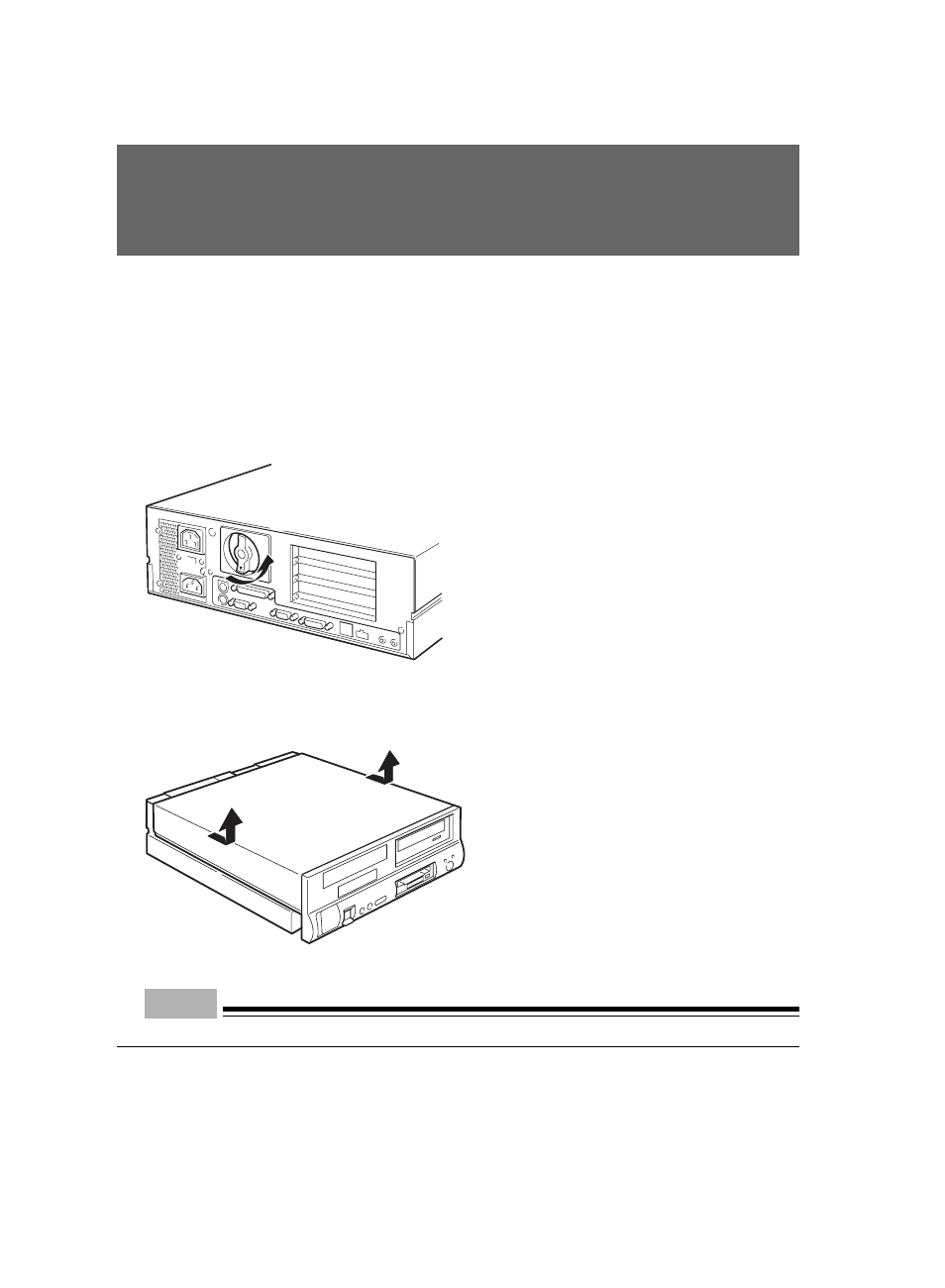

Removing the upper cover

Remove the feet, if any, from the PC unit. Place the PC unit in a horizontal position and remove the
upper cover.

1

Turn the upper knob on the back of the PC unit counterclockwise.
Turn the on the upper knob to the “FREE” position.

2

Remove the upper cover.
Slide the upper cover to the front of the PC unit and lift it for removal.

2 Removing the Cover

Point

• For installation, use the removal procedure in the reverse order.
