4 cable connections, 1 drive connectors – FUJITSU MCE3130AP User Manual
Page 58
3 - 12
C156-E142-02EN
3.4
Cable Connections
3.4.1
Drive connectors

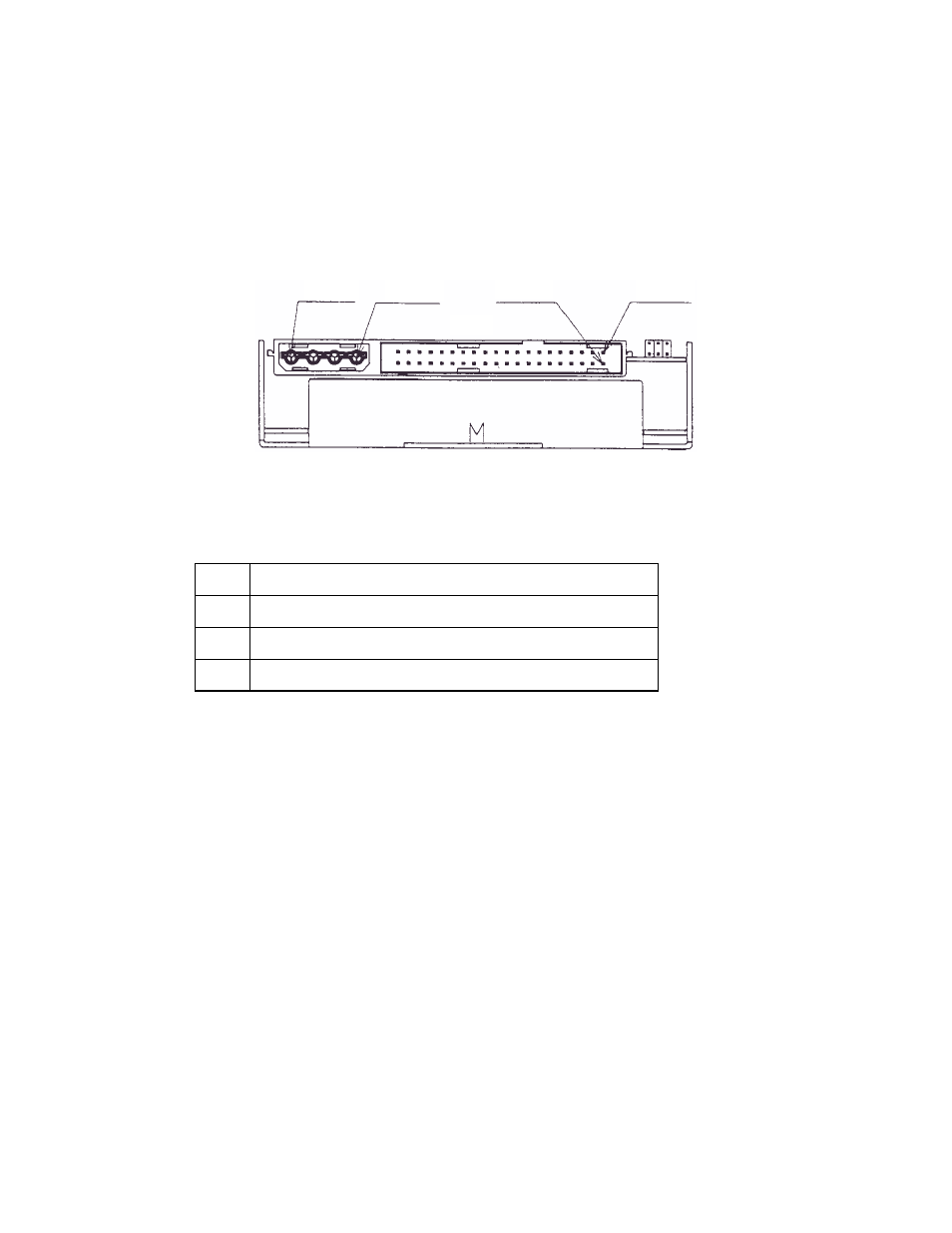

The optical disk drive (ODD) has connectors. Figure 3.9 shows the location of the connectors.
# AT interface connector (40-pin) and power supply connector (4-pin)
Figure 3.9
Connector and terminal locations
Power supply connector
1
+12 VDC or not connected
2
+12 VDC RETURN (GND) or not connected
3
+5 VDC RETURN (GND)
4
+5 VDC
4 pin
1 pin
2 pin
CN1
1 pin
