2 installation direction – FUJITSU MCE3130AP User Manual
Page 53
C156-E142-02EN
3 - 7
3.2.2
Installation direction

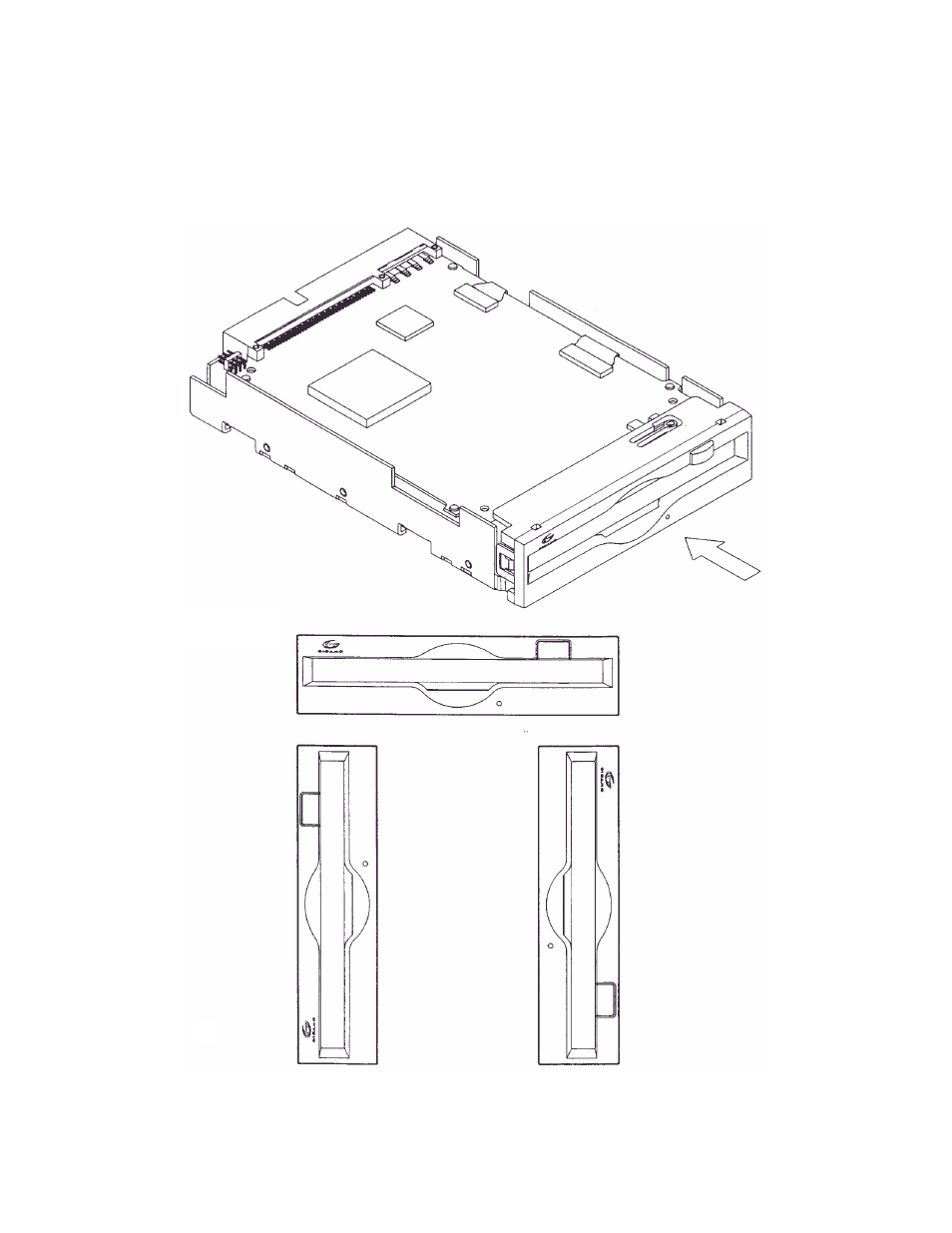

Figure 3.4 shows the permissible installation directions for this drive. The mounting angle tolerance must
be within –5
" to 10" from the horizontal. (–) shows that the insertion faces below.
Figure 3.4
Installation directions
# Vertical
(Two orientations)
# Horizontal
