Separate optical sections

The optical head section is separated in such a way that the fixed optics section is separated from
the moving optics section to minimize seek time and positioning error. (See Subsection 1.2.4 for
the fixed optical section.) This reduces the weight of the moving parts.

The fixed optics section consists of the laser diodes, collimator lens, and optical detector.

The fixed optics section includes a laser diode for recording and playback, and transmits one laser
beam to the head actuator.

(5)

Panel

The central part of the panel is hollowed out deeply to provide pushing finger space for inserting
the cartridge, thereby facilitating the insertion.

The panel is also simply designed by making the eject button and LED light emitting part integral
with each other.

1.2.4

Control circuit section

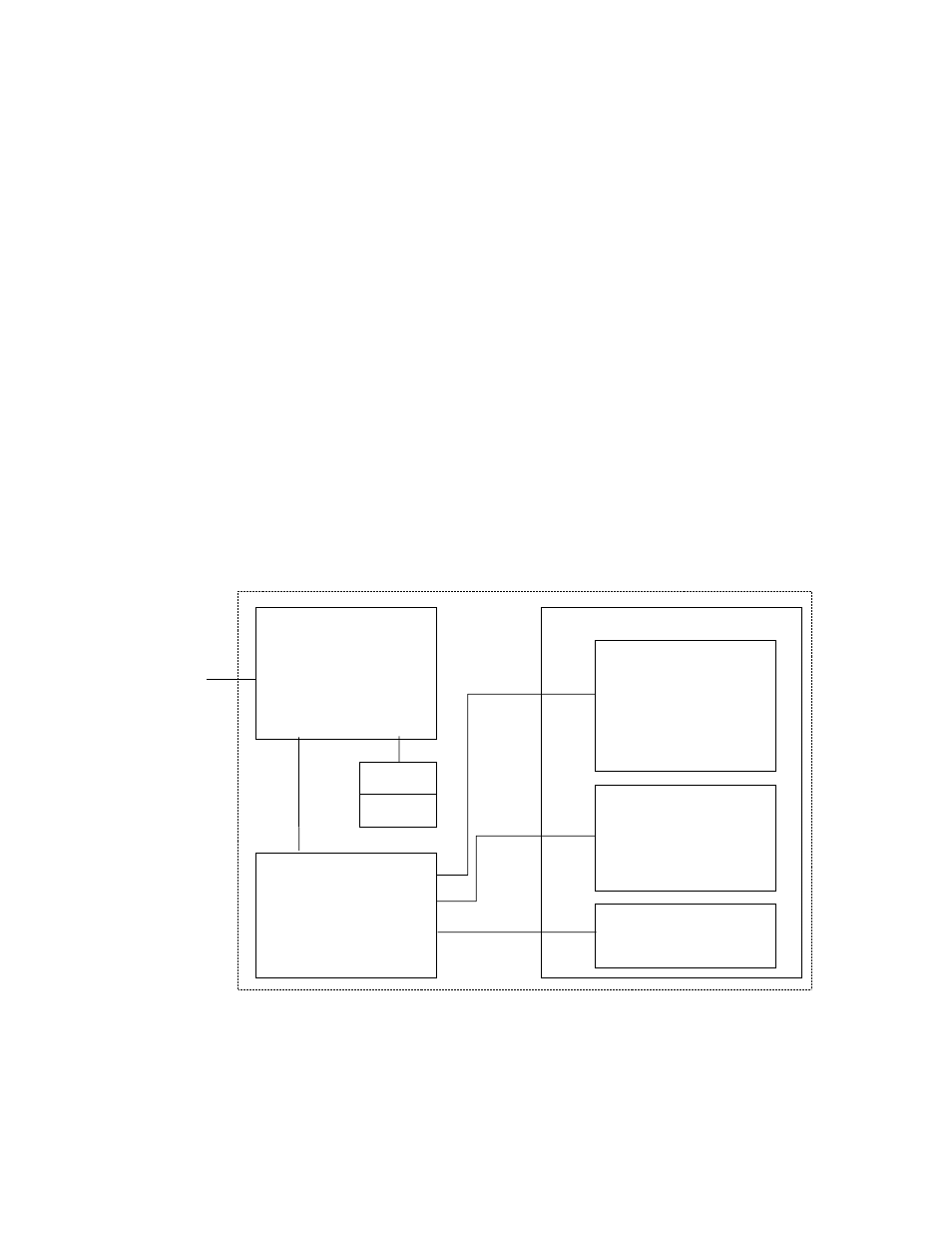

Figure 1.4 is the block diagram of the control circuit section.

Figure 1.4

Control circuit section block diagram

DE

ATAPI I/F

Actuator
Focus Act.
Track Act.
Spindle Motor
Temperature Sensor

Head
Laser Diode
Photo Diode
APC Amp
LPC Amp
Head Amp

Drive
Read Amp
Power Amp
Filter
Sensor
Motor Driver

Main control
MPU
ODC
DSP
User Logic
LSI i/f

D-RAM

F-ROM

Bias Coil
Eject Motor
Cartridge Sensor
