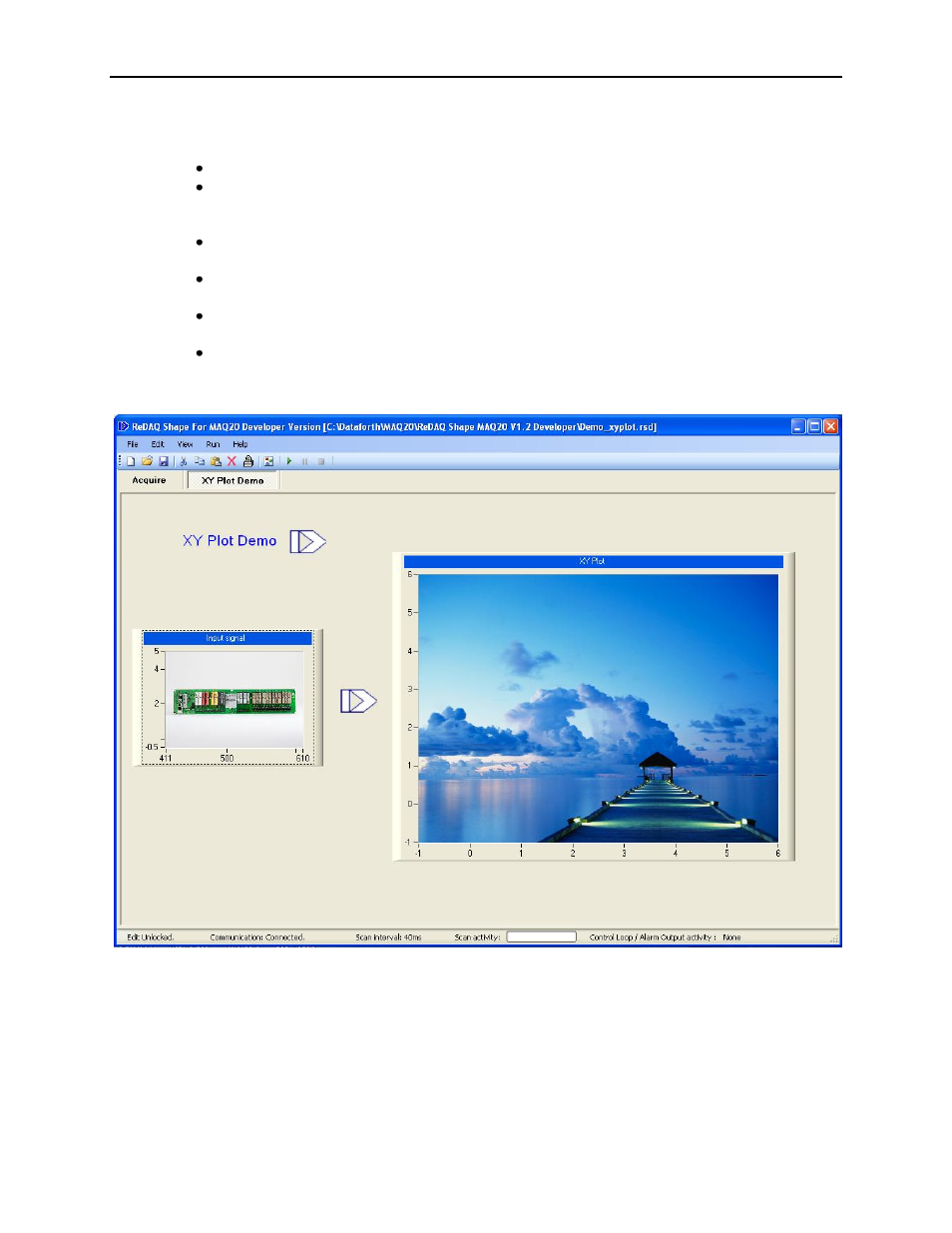

6.2.8 Demonstration Project #8: XY Plot Tool Interface to Output Channels
Filename Demo_xyplot.rsd or Demo_xyplot.rsu
The XY Plot Tool has been configured with analog input channel 0 as X-axis input and
analog input channel 1 as Y-axis input and has been scaled accordingly. The display will
reset every 90 samples.
A Chart Recorder Tool has been configured to display analog input channels 0 and 1 and
has been scaled accordingly.
An analog output module is configured to output pre-programmed sine waveform data to
output channel 0 and cosine waveform data to output channel 1.
Analog output channel 0 is connected to analog input channel 0 and analog output
channel 1 is connected to analog input channel 1.
The XY Plot Tool shows the relationship between the analog output channel 0 and
channel 1 signals.
