To lock or unlock Panel editing, click on the Lock/Unlock button on the toolbar. or select Edit
Lock/Unlock from the Edit pull down menu.
Present panel appearance can be customized for a given application. Plant schematic drawings, images
or pictures can be used as background and the panel name can be changed.

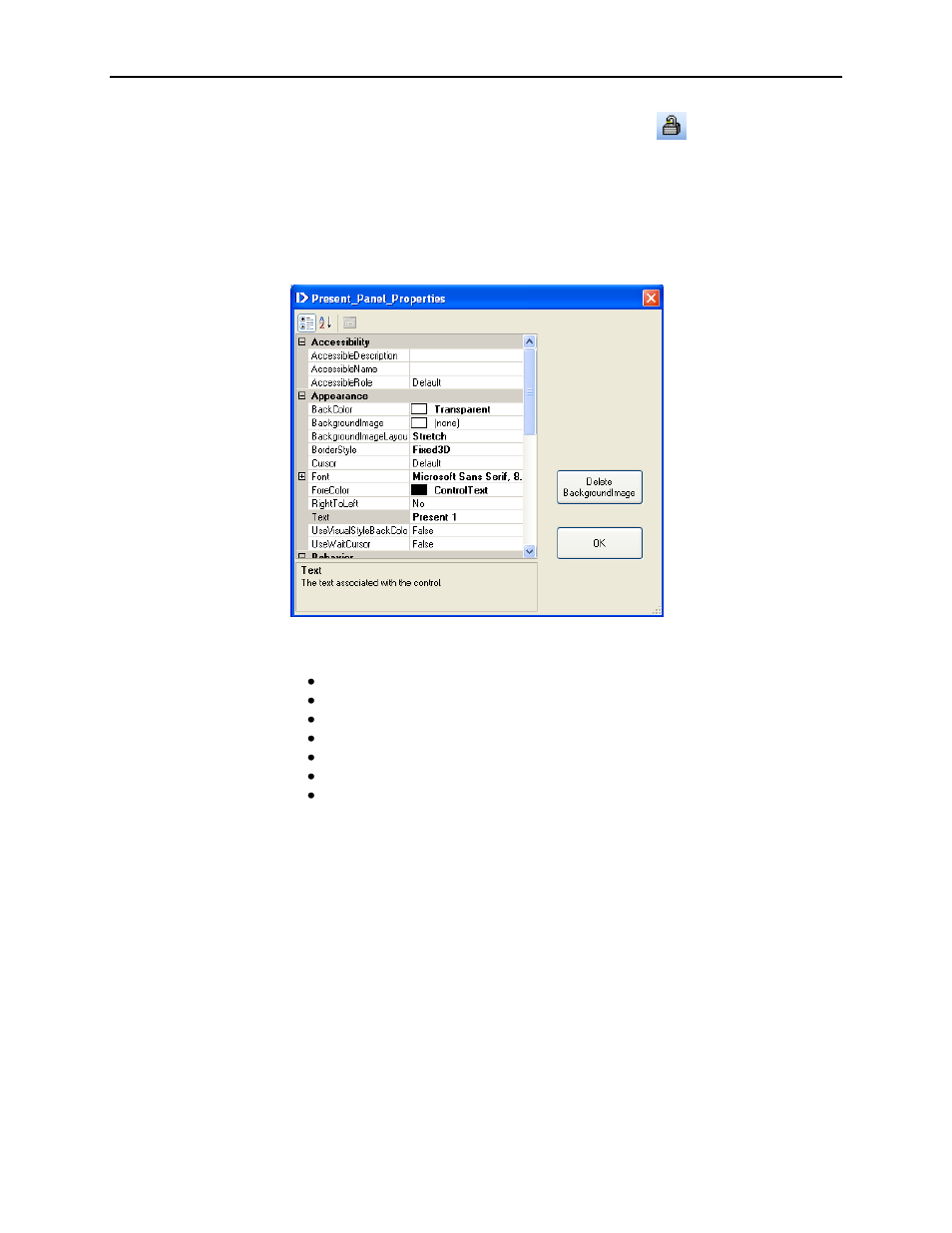

To setup the properties of Present panel, double click on a blank area in the panel and the
Present_Panel_Properties window will appear.
There are 7 categories in the Present panel properties:
Accessibility
Appearance
Behavior
Data
Focus
Layout
Miscellaneous
Only Appearance properties can be changed. All others are fixed.
The Present panel name is found in the Text field and can be changed by highlighting the field and
entering the desired text. Font and foreground colors are configured using the appropriate fields.
A custom background image can be loaded by clicking on the background image box and selecting the
image from the host computer. All common image formats are accepted. Background image variable
parameters are none, tile, center, stretch, or zoom. To delete the background image, click on the delete
button.
