2.2 Software Menus

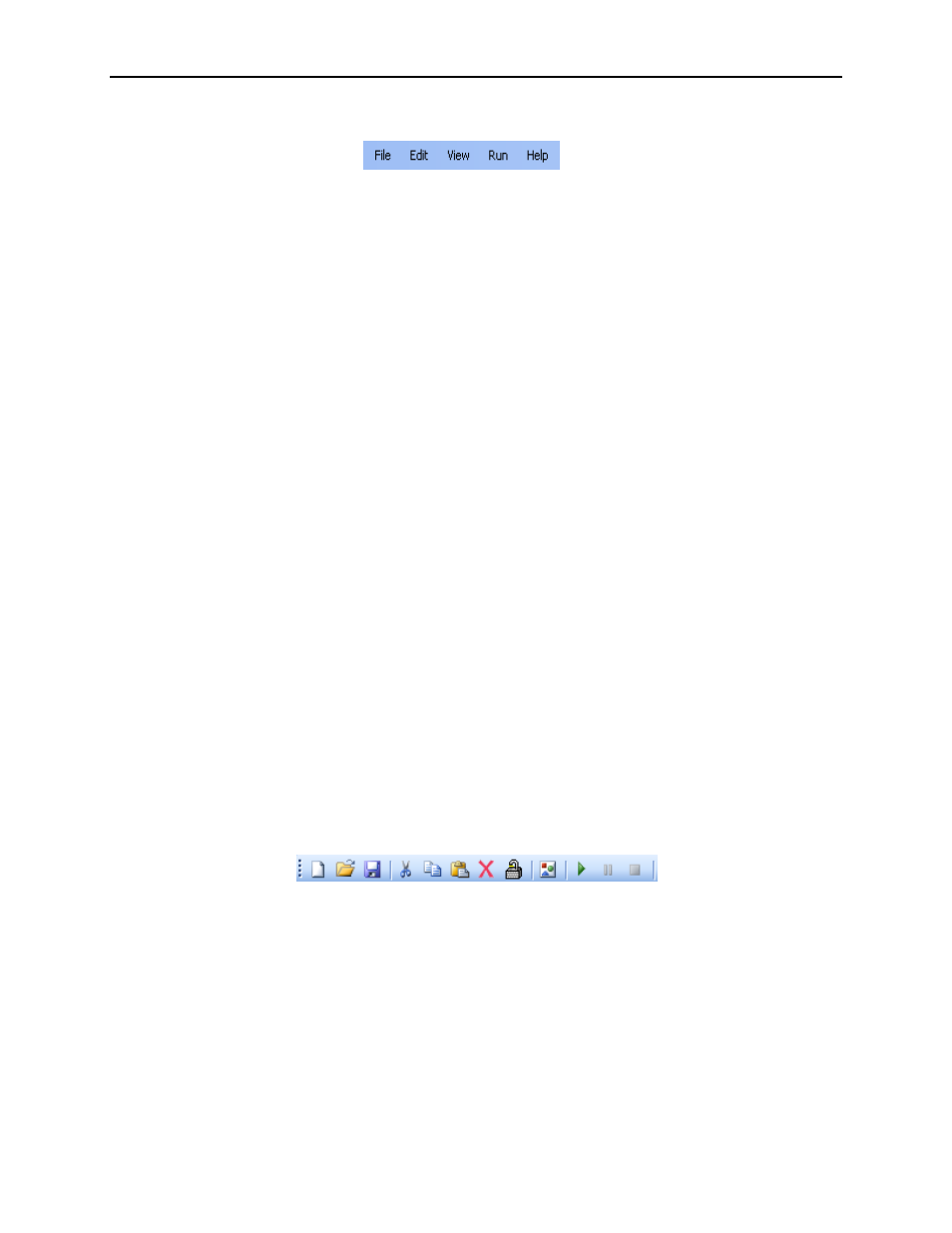

There are 5 main pull-down menus:
File:
• Open new project - Start a new project and reset Acquire, Analyze and Present panels to
default settings
• Open existing project
• Save project - Save the project to a file .rsd. Each project also includes image files
and text files in a separate folder titled Images.
• Save project for user only - Save the project to a User file .rsu. Each project also
includes image files and text files in a separate folder titled ImagesUser.
• Exit - close ReDAQ
®
Shape for MAQ
®
20.
Edit:
• Cut Tool - Delete the selected Tool and send it to the clipboard
• Copy Tool - Copy a selected Tool and send it to the clipboard
• Paste Tool - Paste a Tool to a Present panel
• Delete Tool - Delete a Tool from a Present panel
• Edit Lock/Unlock - Select lock or unlock editing functions
View:
• Present Panel - Add or remove a Present panel
• Acquire Panel - Show or hide the Acquire panel
• Analyze Panel - Show or hide the Analyze panel
• Toolbox - Open or close the Toolbox
Run:
• Start - Setup all of the parameters of the MAQ
®
20 from the Acquire panel and run
• Pause - Keeps the parameter settings and pauses run. Click again to continue.
• Stop - Stop and reset all parameters
Help:
• ReDAQ
®
Shape for MAQ
®
20 User Manual.
• Enter License Unlock Code.
• About - ReDAQ
®
Shape for MAQ
®
20 Version
2.3 Tool Bar
There are 12 convenient tools on the tool bar:
Open New Project
Open Existing Project
Save Project
Cut
Copy
Paste
Delete
Edit Lock/Unlock
Toolbox Open/Close
Start
Pause
Stop
